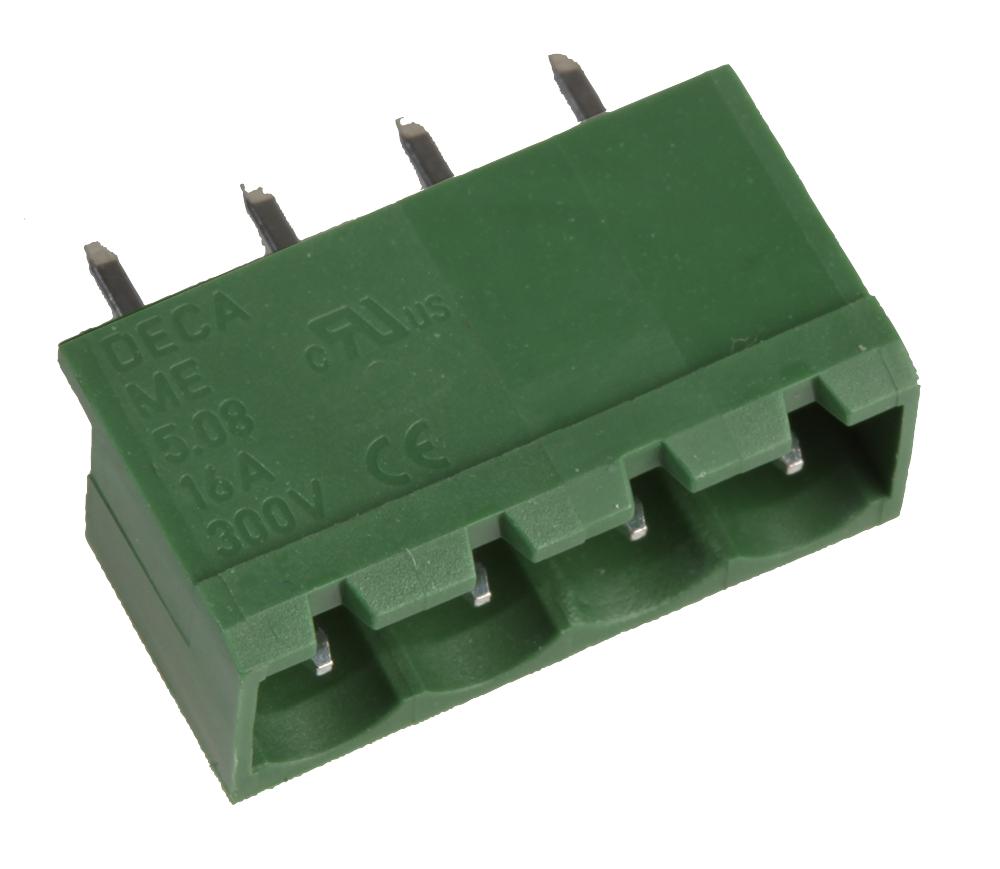

MULTICOMP-PRO MC000202 Pluggable Terminal Block Header
The MC000202 is a 4-position, 5.08mm pitch pluggable terminal block header featuring tin-plated brass solder pins and a green polyamide 66 insulating body. It has a through-hole, vertical orientation suitable for PCB mounting. The terminal block offers an insulation resistance exceeding 2000MΩ and operates within a temperature range of -40°C to +105°C. Multicomp Pro products are rated highly for quality, with a 4.6 out of 5-star rating and a 12-month limited warranty. Approximately 96% of customers would recommend this product to a friend.
MULTICOMP-PRO MC000202 Pluggable Terminal Block Header Specifications:
- Rating current: 16 amperes, 300 V ac
- Minimum insulation withstand voltage: 2,000 V ac
- Insulation resistance: > 2,000 MΩ 500 V de
- Operating temperature: -40°C to +105°C
- Material: Polyamide 66 - Green
- Plating/Finish of solder pins: Tin-plated brass
- Pitch: 5.08 mm (0.2 inch)
- Poles available: 2 to 12 ways
- Dimensions vary with number of poles, e.g., 2 poles: A = 11.76 mm (0.463 inches), 12 poles: A = 62.56 mm (2.463 inches)
Buy the Buy Multicomp Pluggable Terminal Block Part Number MC000202 Online
Order the Multicomp MC000202 pluggable terminal block header online today for secure and reliable PCB connections. This 4-position, 5.08mm pitch header features tin-plated brass solder pins and a green polyamide 66 insulating body, ensuring excellent insulation and durability. Its vertical, through-hole design offers easy mounting, with operating temperatures from -40°C to +105°C. Rated for 16A at 300V AC, this high-quality component is perfect for various electronic applications. Experience fast delivery and unmatched product reliability when you purchase online now.
Buy Multicomp MC000202 now and enjoy reliable PCB connections with high insulation resistance and durable tin-plated brass pins.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC000202?
You can click on the BUY or RFQ button to purchase MC000202 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000202?
You can download the MC000202 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC000202?
MULTICOMP-PRO
