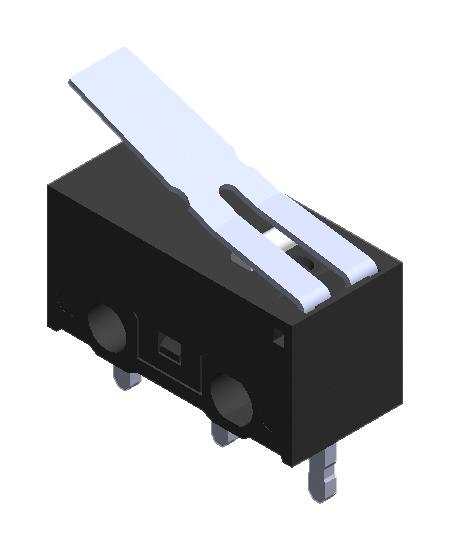

MULTICOMP PRO MP005560 Microswitch
These through-hole snap action microswitches by multicomp:ro are highly reliable, designed for applications like communication equipment, household appliances, security, and electronic devices. They feature a compact size, various actuator options such as hinge, bent lever, pin plunger, and simulated roller lever, with ratings of up to 3A at 125V AC and 0.1A at 30V DC. Durable for over 1,000,000 cycles, they possess excellent electrical insulation and contact resistance, with operating temperatures from -25°C to +75°C, making them suited for diverse industrial and consumer electronics projects.
MULTICOMP PRO MP005560 Microswitch Specifications:
- Contact Rating: 3A at 125VAC, 0.1A at 30VDC
- Durability: 1,000,000 cycles minimum
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ minimum
- Dielectric Strength: AC 1500V 1 minute between current-carrying metal parts and ground
- Operating Temperature Range: -25°C to +75°C
- Actuator Options: Hinge lever, bent lever, pin plunger, simulated roller lever
- Physical Dimensions: Compact through-hole design with various actuator lengths
- RoHS compliant, UL listed for safety and quality standards
Buy the Buy multicomp:ro Microswitch Part Number MP005560 Online
Enhance your electronic projects with the reliable multicomp:ro Microswitch MP005560, a high-quality through-hole switch rated up to 3A at 125V. Ideal for communication, household, and security equipment, it features various actuator options such as hinge, pin, and roller levers for versatile mounting. Designed for over 1 million cycles, this switch maintains excellent contact resistance and insulation resistance, ensuring long-term durability from -25°C to +75°C. Purchase online now for quick, convenient access to this dependable component.
Order your multicomp:ro Series MP005560 durable microswitch today and ensure reliable switching performance for industrial and electronic applications.
