MULTICOMP PRO MCFM5012 Toroidal Transformer
The Multicomp MCFM series are compact, open-style toroidal transformers with flying leads, designed for low power applications. Constructed with high-quality materials, these transformers feature low radiated magnetic fields, making them suitable for sensitive electronic devices. They include a single primary winding tapped for 115VAC and 230VAC at 50/60Hz, along with dual secondary windings that can be connected in series, parallel, or used separately. Power ratings range from 1.6VA to 7.0VA, with a maximum ambient temperature of 40°C. The transformers offer up to 80% efficiency, have double-insulated primary leads, a resin-filled center with an M4 mounting hole, and flexible lead outs that can be trimmed without removing enamel. Designed and tested in accordance with standards EN60742, EN60065, and EN60950, they are 100% electrically and flash tested. Suitable for industrial and power management applications, these transformers come with a 12-month limited warranty. Multicomp products have a customer-rated score of 4.6 out of 5 stars, with 96% of users recommending them.
MULTICOMP PRO MCFM5012 Toroidal Transformer Specifications:
- Power Ratings: 1.6VA to 7.0VA
- Primary Winding: Tapped for 115VAC and 230VAC at 50/60Hz
- Secondary Windings: Dual, connect in series, parallel, or separately
- Efficiency: Up to 80%
- Ambient Temperature: Max 40°C
- Construction: Open style with flying leads, resin-filled center
- Mounting Hole: M4
- Lead Length: 150 mm, stripped and tinned for last 6 mm
- Standards: EN60742, EN60065, EN60950
- Testing: 100% electrical and flash tested
- Application: Low power electronics, industrial, power management
- Dimensions: Diameter varies from approximately 42 mm to 51 mm; Height varies from approximately 23 mm to 24 mm
- Weight: Ranges from 0.13 kg to 0.19 kg

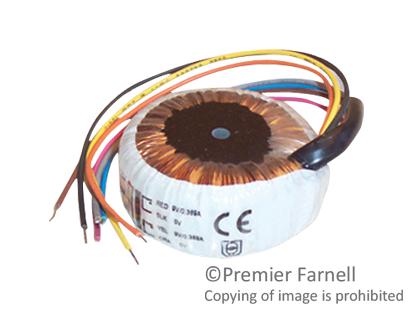

Buy the Buy Multicomp Miniature Toroidal Part Number MCFM5012 Online
Order the Multicomp Toroidal Transformer MCFM5012 online to ensure reliable performance for your low power electronics and industrial projects. Featuring dual secondary windings that can be connected in series or parallel, this high-quality transformer is designed with a resin-filled center for durability and safety. Its low radiated magnetic fields make it suitable for sensitive electronic devices, while flexible lead outs simplify installation. Constructed to meet industry standards EN60742, EN60065, and EN60950, it is 100% electrically and flash tested, making it an ideal choice for power management applications requiring reliable, efficient, and safe transformers.
Get Multicomp MCFM5012 today—built for precision and long-lasting durability in low power electronic applications.
