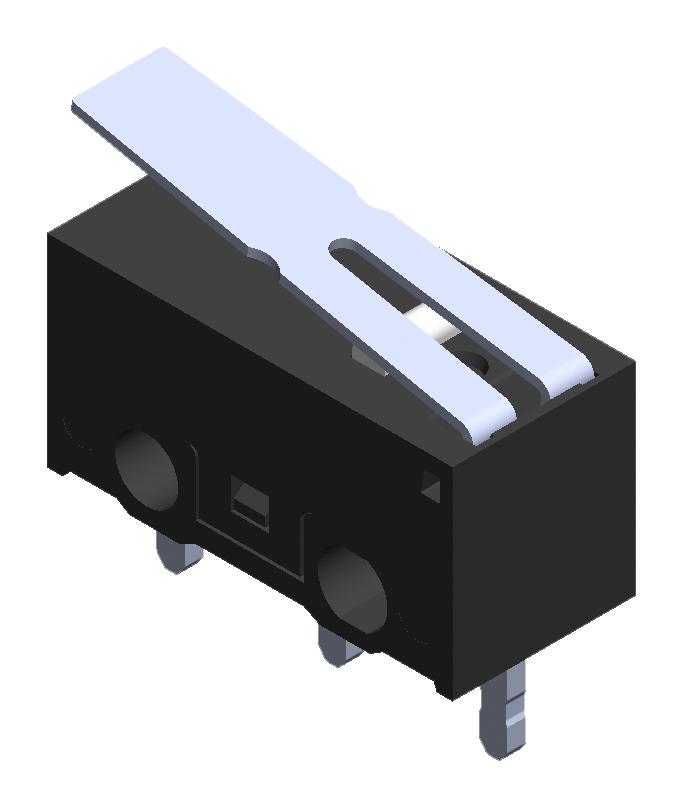

MULTICOMP PRO MP005563 Microswitch
High-reliability through-hole snap action microswitches designed for various electronic and industrial applications. These switches feature a compact design, multiple actuator types including hinge, bent, pin plunger, and simulated roller lever, and are rated for 3A at 125V AC. They ensure excellent electrical durability with a minimum of 8,000 cycles, and mechanical durability exceeding 1,000,000 cycles at 0.1A. With RoHS compliance, operating temperatures from -25°C to +75°C, and plated contacts, they are suitable for security, communication, household appliances, and electronic equipment. The switches have multiple configurations, including SPST-NO, SPST-NC, and SPDT, with high insulation resistance of 100MΩ MIN. They provide precise operational force, release force, and travel specifications, ensuring reliable switching performance over long service life.
MULTICOMP PRO MP005563 Microswitch Specifications:
- Contact Rating: 3A at 125V AC, 1.5A at 250V AC
- Electrical Durability: 8,000 cycles MIN.
- Mechanical Durability: over 1,000,000 cycles at 0.1A MIN.
- Contact Resistance: 100mΩ MAX.
- Insulation Resistance: 100MΩ MIN.
- Dielectric Strength: AC 1500V 1 minute between current-carrying parts and ground or non-current-carrying parts.
- Operating Temperature: -25°C to +75°C
- Contact Material: Silver-plated contacts
- Actuator Types: Hinge Lever, Bent Lever, Pin Plunger, Simulated Roller Lever
- Switch Types: SPST-NO, SPST-NC, SPDT
- Physical Dimensions: Various actuator lengths (8.5mm to 10.2mm), standard through-hole mounting
- RoHS Compliant: Yes
Buy the Multicomp Through Hole – Reliable Microswitches for Industrial Applications
Order Multicomp high-reliability microswitches online today and ensure your electronic or industrial projects operate safely and efficiently. These switches provide long-lasting durability, precise operation, and a variety of actuator options suitable for security, communication, household appliances, and electronic equipment. With RoHS compliance, rated for 3A at 125V AC, and excellent electrical and mechanical endurance, they are perfect for demanding applications. Easy to install with standard through-hole mounting, these switches deliver consistent performance and exceptional value. Purchase online now to benefit from fast delivery and expert support.
Buy Multicomp through-hole microswitches now and experience unmatched reliability and performance for your electronic and industrial needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005563?
You can click on the BUY or RFQ button to purchase MP005563 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005563?
You can download the MP005563 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005563?
MULTICOMP PRO
