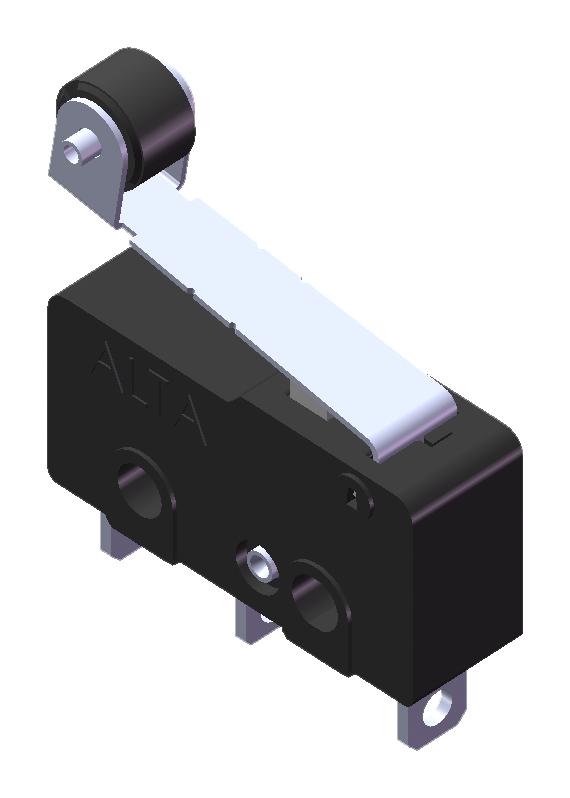

MULTICOMP PRO MP005573 Panel Mount Microswitch
These panel mount snap action microswitches are highly reliable and designed for applications in home appliances, vacuum cleaners, printers, and white goods. They feature long mechanical durability of 10,000,000 cycles, 3A contact rating at 30V DC, and RoHS compliance. The switches have solder terminals, operate within -25°C to +75°C temperature range, and include various actuator types such as hinge, bent, and roller levers. Suitable for circuit control, these switches ensure dependable performance with low contact resistance and solid insulation resistance, making them ideal for demanding electronic and electrical systems.
MULTICOMP PRO MP005573 Panel Mount Microswitch Specifications:
- Contact Rating: 3A at 30V DC
- Mechanical Durability: 10,000,000 cycles MIN.
- Electrical Durability: 10,000 cycles MIN.
- Contact Resistance: 50mΩ MAX.
- Insulation Resistance: 100MQ MIN.
- Dielectric Strength: AC 1500V 1 minute between current-carrying parts and ground
- Operating Temperature Range: -25°C to +75°C
- Actuator Types: Hinge Lever, Bent Lever, Simulated Roller, Roller Lever
- Operating Force: 50gf (0.49N) MAX.
- Release Force: 60gf (0.06N) MIN.
- Overtravel: 1.20mm MIN.
- Movement Differential: 0.80mm MAX.
- Operating Position: 8.8+0.8mm to 14.5+0.8mm depending on model
- Free Position: Max 15.5mm to 19.3mm depending on model
- Temperature Range: -25°C to +75°C
- RoHS Compliant
- Terminal Type: Solder
- Application: Circuit control, home appliances, industrial equipment
Buy the Buy Multicomp Panel Mount Snap Action Microswitches Part Number MP005573 Online
Experience dependable performance with the Multicomp panel mount microswitch MP005573. Designed for durability and precision, this switch features a long lifespan of 10 million cycles, RoHS compliance, and a contact rating of 3A at 30V DC. Its robust construction includes solder terminals, AC dielectric strength of 1500V, and operation within -25°C to +75°C. Ideal for home appliances, printers, and circuit control, purchase this highly reliable switch online today for seamless integration into your electronic systems.
Get Multicomp panel mount snap switch MP005573 today—engineered for precise circuit control and reliable operation in household and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005573?
You can click on the BUY or RFQ button to purchase MP005573 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005573?
You can download the MP005573 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005573?
MULTICOMP PRO
