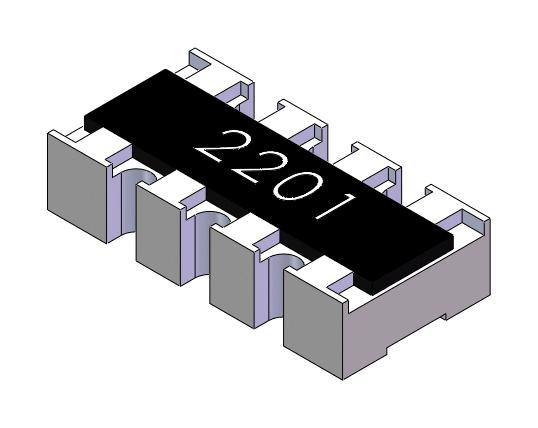

MULTICOMP PRO MP005615 Resistor Array
This product comprises Thick Film Chip Resistor Arrays featuring 4 isolated elements, with a 1/16W power rating. Designed for high reliability in industrial and electronic applications, these arrays operate within a temperature range of -55°C to +155°C and handle voltages up to 50V. Constructed with Ag/Pd electrodes and Sn substrate plating, they exhibit excellent resistance stability, low TCR, and high-quality solderability, making them ideal for precise current limiting, voltage division, and load resistor functions in electronic circuits.
MULTICOMP PRO MP005615 Resistor Array Specifications:
- Power Rating: 0.0625W (1/16W) at 70°C, derated above 70°C
- Resistance Range: 5Ω to 1MΩ, ±5% tolerance
- Resistance Stability: ±1% over temperature
- Temperature Coefficient: Refer to item 5 in datasheet
- Max Working Voltage: 50V, Overload Voltage: 100V
- Dielectric Withstanding Voltage: 100V
- Operating Temperature Range: -55°C to +155°C
- Ambient Temperature Limit: 70°C
- Construction: Electrodes of Ag/Pd, Sn substrate plating
- Physical Dimensions: Length 2.4mm, Width 0.45mm, Height 0.2mm
- Marking: E-26 series: first 3 digits significant figures, 4th digit zeros; E-24 series: first 2 digits significant figures, 3rd zeros
- Solderability: 245°C ±3°C solder dipping for 2-3 sec, with >50% tin coverage
- Resistance change after overload, temperature cycling, humidity, and load life within specified limits
- RoHS compliant
Buy the Multicomp Pro MP005615 Reliable Resistor Arrays for Industrial Applications
Explore the convenience of purchasing the high-quality Multicomp Pro resistor array MP005615 online today. Designed for durability and precision, this 4-element thick film resistor array offers a 1/16W power rating, operating smoothly from -55°C to +155°C. Suitable for industrial and electronic applications, it features excellent resistance stability, RoHS compliance, and reliable solderability. Whether you need it for current limiting, voltage division, or load resistance tasks, order now and ensure your projects benefit from top-tier components with fast delivery and expert support.
Buy Multicomp Pro MP005615 resistor arrays now and experience unmatched reliability, precision, and performance in your electronic designs. Enhance your circuit stability and quality today with these high-performance resistor arrays.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005615?
You can click on the BUY or RFQ button to purchase MP005615 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005615?
You can download the MP005615 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005615?
MULTICOMP PRO
