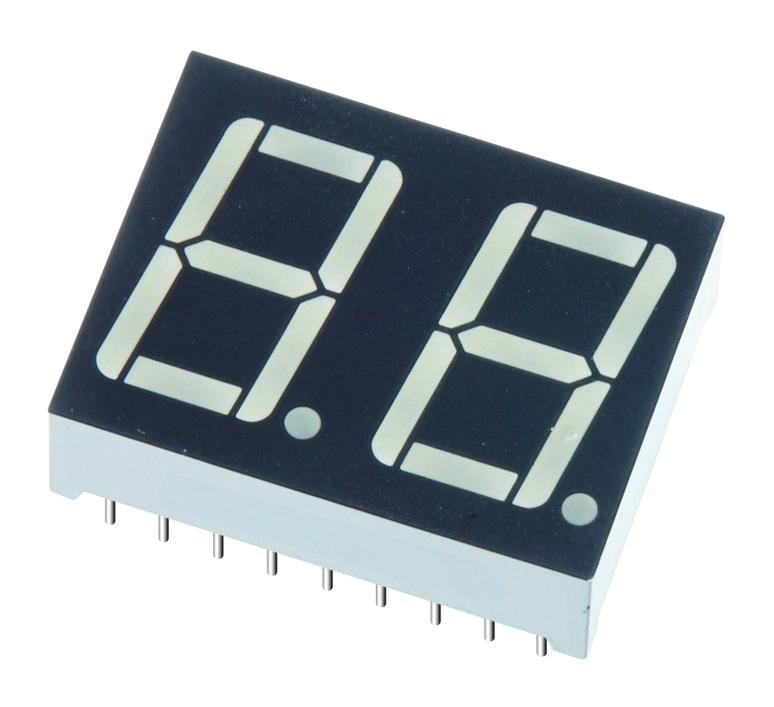

MULTICOMP-PRO MP006830 Dual Digit LED Display
The 0.56-inch dual digit common cathode seven-segment LED display in red operates with a forward voltage of 1.8 to 2.2 V, emitting super red light at 650 nm wavelength. It features a luminous intensity of 3.0 to 7 mcd and a peak emission at 650 nm. Designed with InGaP dice and white diffused epoxy, it supports a maximum power dissipation of 85 mW and a recommended operating current of 30 mA. Suitable for digital displays, it withstands temperature ranges from -40°C to +85°C, is RoHS compliant, and provides reliable performance in various industrial applications.
MULTICOMP-PRO MP006830 Dual Digit LED Display Specifications:
- Display Size: 0.56 inch dual digit
- Color: Super Red, emitted at 650 nm
- Luminous Intensity: 3.0 to 7 mcd
- Peak Emission Wavelength: 650 nm
- Dominant Wavelength: 635-645 nm at 20 mA
- Forward Voltage: 1.8 to 2.2 V
- Reverse Current: 10 μA at 5 V
- Power Dissipation: 85 mW
- Recommended Current: 30 mA
- Peak Forward Current: 100 mA
- Electrostatic Discharge: 2000 V
- Operating Temp Range: -40°C to +85°C
- Storage Temp Range: -40°C to +100°C
- Soldering Temp Range: 260°C for 5 sec
- RoHS Compliant
Buy the Multicomp 006830 – Reliable Red Seven-Segment Digital Display for Industrial Applications
Purchase the dual digit 0.56-inch red LED display online today and enhance your digital display projects. This robust, high-brightness, common cathode LED module offers reliable performance at a compact size. Suitable for industrial and electronic applications, it features a peak emission at 650 nm, a forward voltage of 1.8 to 2.2 V, and supports current operation at 30 mA. Its durable construction ensures longevity, with temperature ratings from -40°C to +85°C. Ideal for digital readouts, scoreboards, and instrumentation, buy now for optimal performance and quality assurance.
Get Multicomp 006830 today—designed for durability, high brightness, and precise digital readout in industrial environments.
