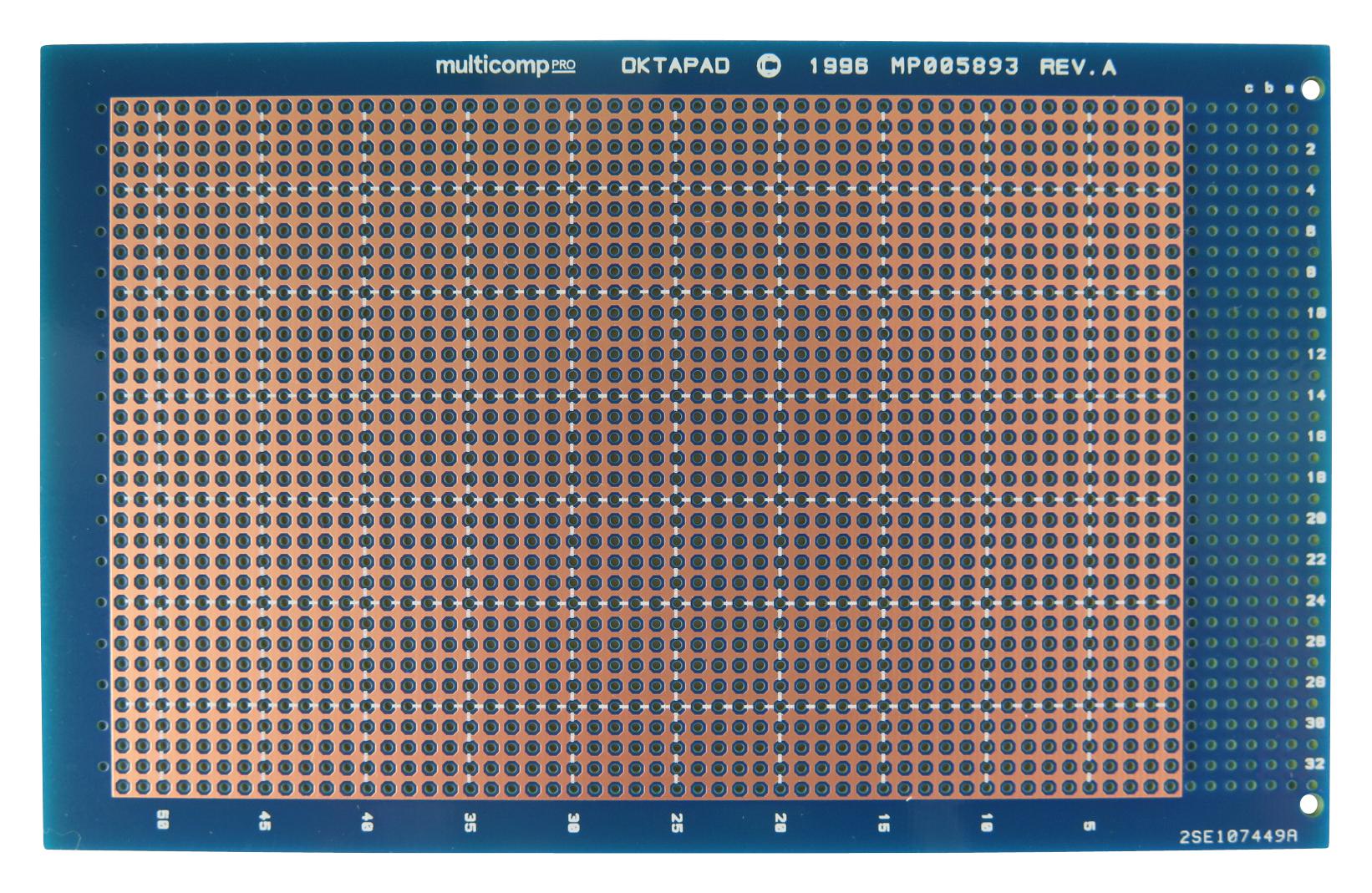

MULTICOMP-PRO MP005893 Eurocard Circuit Board
The Octapad Stripboard Series offers versatile prototyping Eurocard circuit boards available in single and double height formats, with single-sided and double-sided options. Designed for wiring and assembly using stripboard methods, these boards support wire wrapping and discrete component wiring. Features include silkscreen reference on the component side, DIN 41612 connector mounting holes at one end accommodating 32, 64, or 96 ways, a colander ground plane for enhanced screening, and durable epoxy glass or FR4 material. With a thickness of 1.6mm, hole matrix of 2.54mm, and copper thickness of 1 oz/ft?, these PCBs ensure reliable performance for complex electronics projects. Protective coating is OSP, preventing tarnish and oxidation.
MULTICOMP-PRO MP005893 Eurocard Circuit Board Specifications:
- Board Thickness: 1.6mm
- Material: epoxy glass or FR4
- Hole Matrix: 2.54mm x 2.54mm
- Hole Size: 1.02mm
- Copper Thickness: 1 oz/ft? or 35 microns or 305g/m
- Protective Coating: OSP - organic solderability preservatives
- DIN 41612 Connector Mounting Holes: at one end for 32/64/96 ways
- Board Height: 3U (single height) or double height 6U
- Format: Single-sided or double-sided
- Application: Compatible with wire wrapping and discrete component wiring
Buy the Buy Multicomp Pro Eurocard Part Number MP005893 Online
Purchase the Multicomp Pro Eurocard circuit board MP005893 online today for efficient and reliable prototyping. This durable PCB features a 1.6mm epoxy glass material, DIN 41612 connector mounting holes at one end, and a colander ground plane for maximum screening. Suitable for both single-sided and double-sided configurations, with a hole matrix of 2.54mm and copper thickness of 1 oz/ft?, it is ideal for complex electronics projects. Order now to ensure your prototype development is both precise and dependable, backed by quality manufacturing standards.
Get Multicomp Pro Eurocard MP005893 today—designed for reliable prototyping with robust ground planes and DIN connector compatibility.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP005893?
You can click on the BUY or RFQ button to purchase MP005893 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005893?
You can download the MP005893 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP005893?
MULTICOMP-PRO
