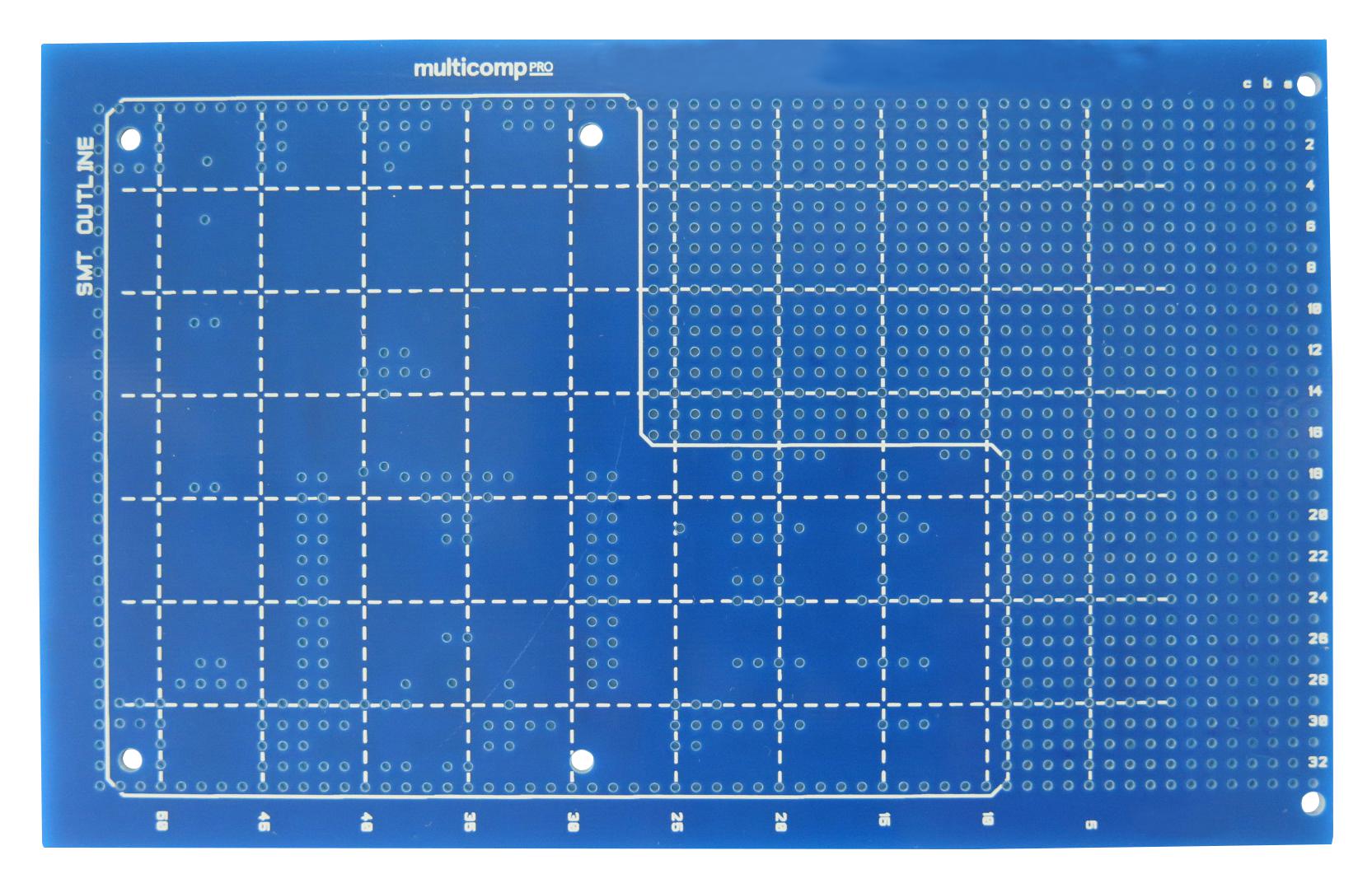

MULTICOMP PRO MP005897 Eurocard Prototyping Board
The Surface Mount Technology Eurocard prototype boards are designed for experimental development, combining surface mount device wiring with conventional components on 3U Eurocards. These single height, double-sided or single-sided boards feature popular SMD footprints, easy-to-wire fan-out solder pads, and a colander ground plane. They include fixing holes for optional piggy-back boards, DIN 41612 connector mounting points, and are made from epoxy glass or FR4 with a 1.6mm thickness. The boards are RoHS compliant, protected by organic solderability preservatives, suitable for surface mount and conventional device prototyping in industrial electronics.
MULTICOMP PRO MP005897 Eurocard Prototyping Board Specifications:
- Board Size: 100mm x 160mm
- Board Thickness: 1.6mm
- Material: Epoxy glass or FR4
- Copper Thickness: 35 microns or 305g/m2
- SMD Footprints: Popular footprints with fan-outs
- Hole Size: 1.02mm with 2.54mm x 2.54mm hole matrix
- Fixing Holes: 4 for piggy-back attachment
- DIN 41612 Connector Mounts: 32/64/96 way options at one end
- Protection: Organic solderability preservatives (OSP)
- Compatible Standards: DIN 41612, DIN 41494
Buy the Multicomp MP005897 – Reliable Eurocard Prototyping Board for Industrial Applications
Order the Eurocard Prototyping Board from Multicomp today—optimized for industrial electronics development. Designed with easy wiring of SMD and conventional components, featuring high-quality materials, RoHS compliance, and versatile connector options. Perfect for prototype development, these 3U boards support surface mount device wiring, include fixing holes for piggy-back assemblies, and are protected with anti-tarnish coating. Ensure your industrial projects benefit from reliable, compliant, and easy-to-use prototyping solutions with quick online purchasing options that guarantee fast delivery and long-lasting performance.
Get Multicomp MP005897 today—built for durable surface mount and conventional device prototyping in industrial electronics.
