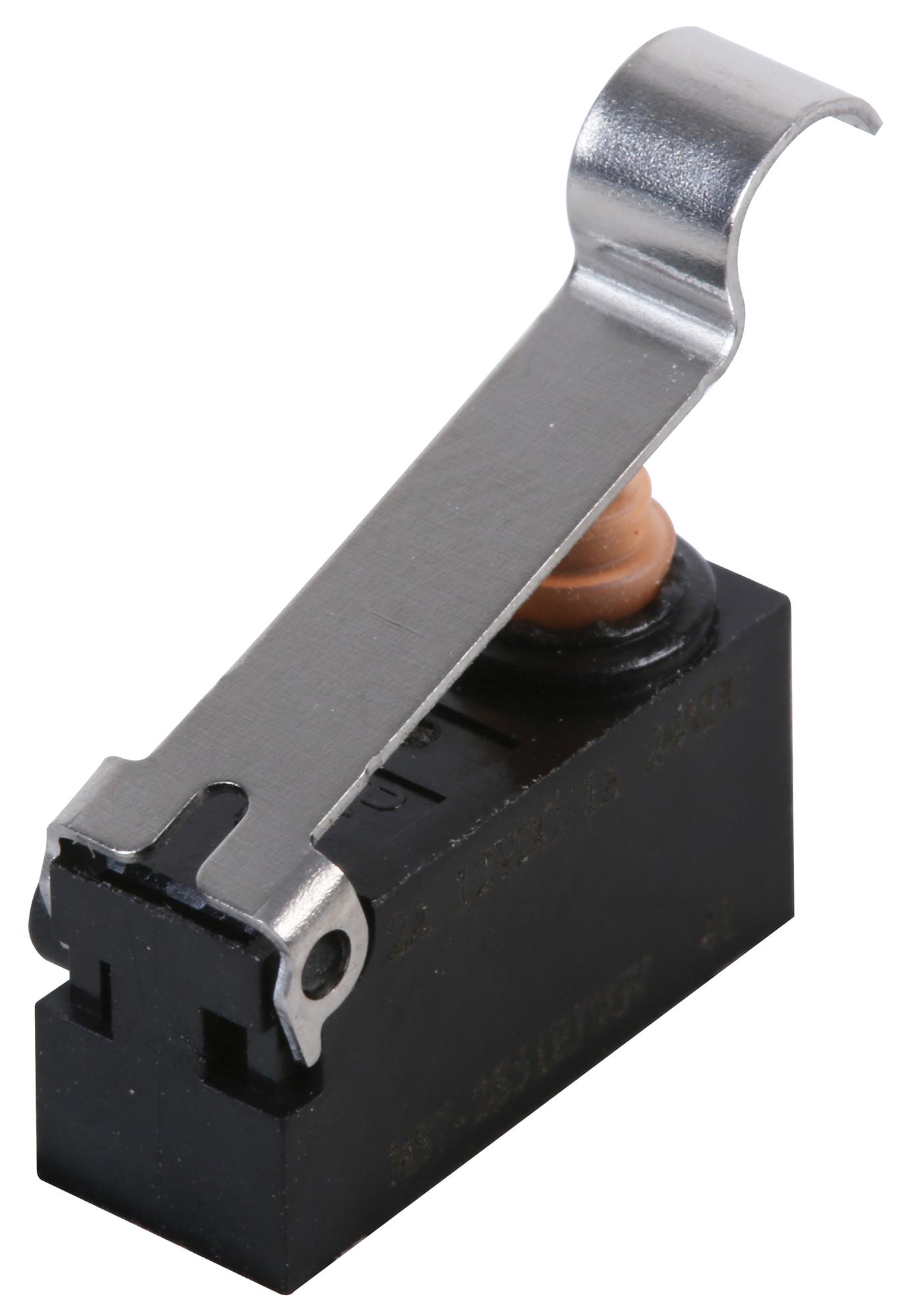

MULTICOMP PRO MP006225 Sealed Microswitch
These versatile snap action microswitches are ideal for various industrial and household applications, including automotive systems, vacuum cleaners, and appliances. Featuring multiple actuator options like pin plungers, levers, and simulated rollers, they are sealed IP67 and support RoHS compliance. With a contact rating of 2A at 12V DC, they deliver mechanical durability over 1 million cycles and electrical durability over 100,000 cycles. Operating temperature range is from -40°C to +85°C, making them suitable for harsh environments. Their compact size and various terminal options ensure easy installation and reliable operation across diverse industrial sectors.
MULTICOMP PRO MP006225 Sealed Microswitch Specifications:
- Contact Rating: 2A at 12V DC, 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ max
- Insulation Resistance: 100MΩ minimum at 500V DC
- Dielectric Strength: 600V AC between terminals
- Operating Temperature Range: -40°C to +85°C
- Sealed IP67 structure
- Actuator options: Pin Plunger, Lever, Roller
- Rated Voltage: 12V DC, Resistive Load: 2A
Buy the Multicomp Pro MP006225 – Reliable Microswitches for Industrial Applications
Enhance your industrial projects with the high-quality Multicomp Pro sealed microswitch. Designed for durability and reliable performance in harsh environments, this switch supports a resistive load of 2A at 12V DC and offers multiple actuator options including pin plungers and levers. Its IP67 sealing ensures protection against dust and moisture, while its operating temperature range of -40°C to +85°C makes it suitable for demanding applications like automotive, household appliances, and automation systems. Easy to install and built for long-term service, it is the perfect choice for engineers seeking robustness and precision.
Order your Multicomp Pro MP006225 series sealed IP67 microswitch today and ensure dependable switching performance for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006225?
You can click on the BUY or RFQ button to purchase MP006225 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006225?
You can download the MP006225 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006225?
MULTICOMP PRO
