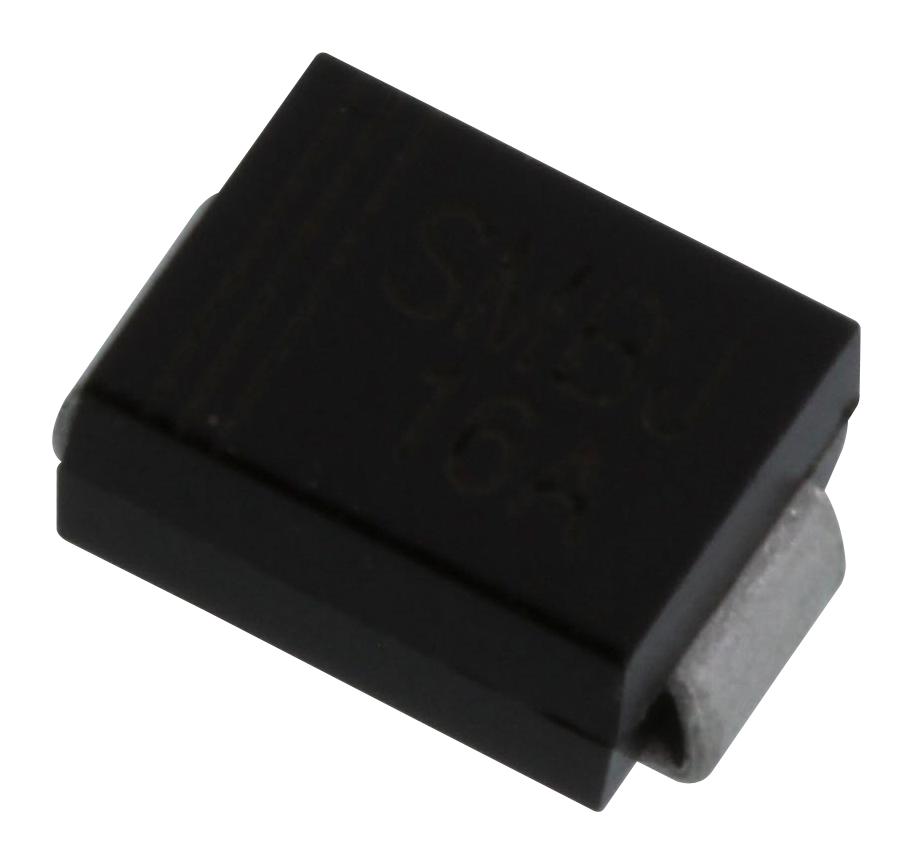

MULTICOMP PRO SMBJ16A Transient Voltage Suppressor
This patented transient voltage suppressor (TVS) diode from multicomp-pro offers a high peak pulse power capability of 600W with a fast response time, ensuring effective overvoltage protection for sensitive electronic circuits. The device features a glass passivated junction, unidirectional polarity, and a compact JEDEC DO-214AA package suitable for high-temperature soldering at 250°C. It withstands surge currents up to 400A, with a wide operating temperature range from -55°C to +150°C. Its robust construction guarantees reliable performance in electrical and electronic applications, providing superior circuit protection against transient voltage spikes and power surges.
MULTICOMP PRO SMBJ16A Transient Voltage Suppressor Specifications:
- Case: JEDEC DO-214AA moulded plastic over glass passivated junction
- Polarity: Unidirectional, color band denotes cathode
- Peak Power Dissipation: Minimum 600 W with a 10/1,000us waveform
- Peak Pulse Current: Up to 800 A, depending on the part number
- Peak Forward Surge Current: 400 A (8.3ms single half sine-wave)
- Thermal Resistance Junction to Ambient: 100 °C/W
- Thermal Resistance Junction to Lead: 20 °C/W
- Maximum Ratings Temperature Range: -55°C to +150°C
- Dimensions: 4.74 mm x 2.08 mm x 0.36 mm (Millimetres)
- Mounting: On copper pads of 0.2
- Dimensions: Millimetres
- Peak Pulse Power: 600W with waveform 10/1,000us
- Maximum Surge Current: Up to 800A depending on model
- Reverse Stand-Off Voltage: Up to 136V for highest rated parts
- Response Time: Very fast, suitable for transient suppression
- Soldering Temperature: Guaranteed at 250°C for 10 seconds
- Polarity: Unidirectional, bi-directional types use suffix 'C'
- Mounting: On copper pads, on recommended thermal pads for optimal heat dissipation
Buy the Buy multicomp Transient Voltage Suppressor Part Number SMBJ16A Online
Secure your electronic projects with the multicomp Series SMBJ16A transient voltage suppressor. With a peak pulse power of 600W and fast response time, it effectively protects circuits against voltage spikes and surges. Its robust JEDEC DO-214AA package and high-temperature soldering capability at 250°C guarantee durability in demanding environments. Ideal for sensitive electronics requiring reliable transient suppression, this device withstands surge currents up to 800A and operates across a wide temperature range from -55°C to +150°C. Buy now online for immediate circuit protection.
Order your multicomp Series SMBJ16A transient voltage suppressor today and ensure reliable overvoltage protection for your sensitive electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMBJ16A?
You can click on the BUY or RFQ button to purchase SMBJ16A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMBJ16A?
You can download the SMBJ16A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMBJ16A?
MULTICOMP PRO
