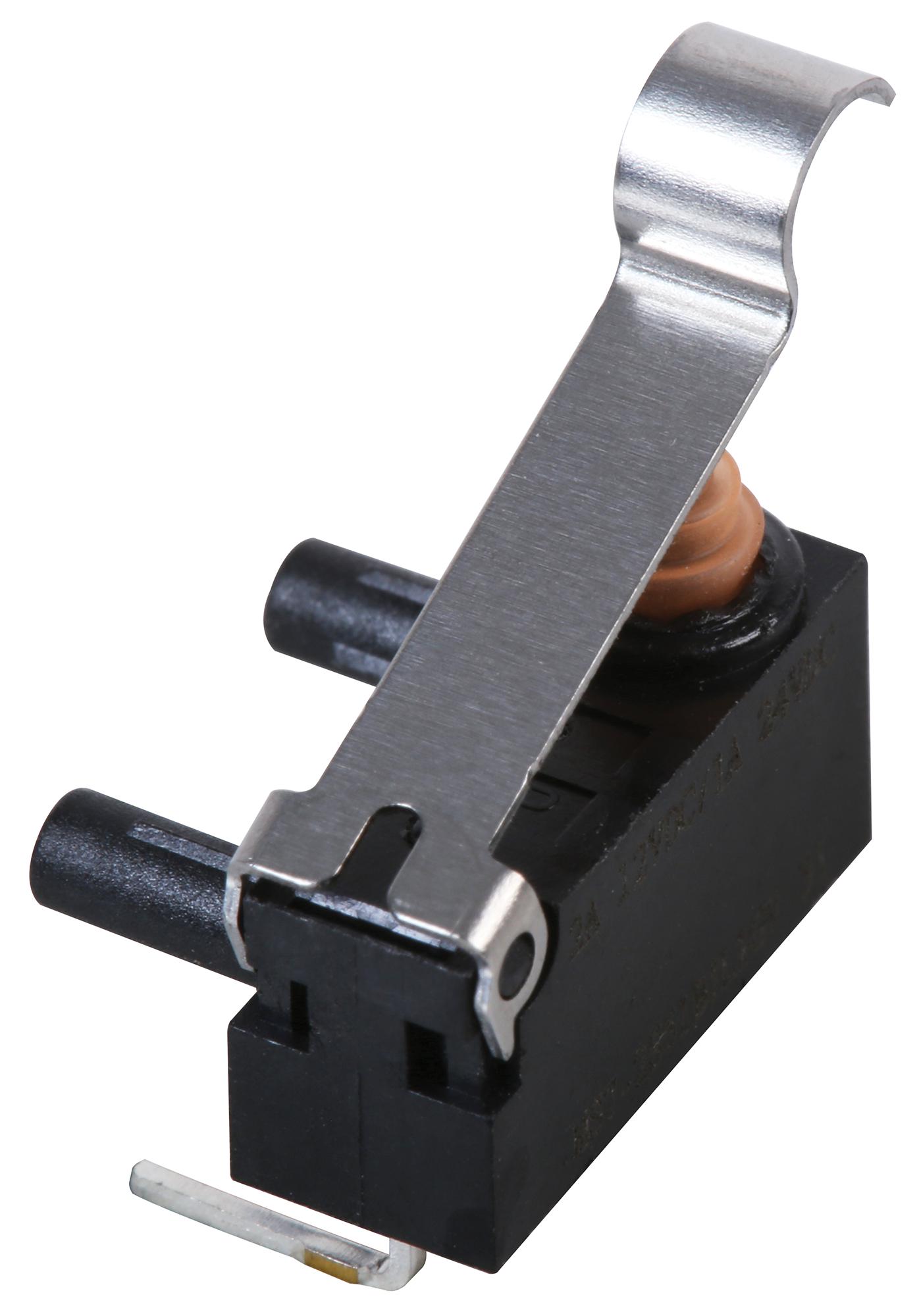

MULTICOMP PRO MP006234 Micro Switch
This is a compact, sealed snap action microswitch designed for reliable automation and control applications. It features a variety of actuator options like pin plungers and levers, with a sealed IP67 rating for durability in harsh environments. Suitable for automotive, household appliances, and vacuum cleaner switching, it supports resistive loads of 2A at 12V DC and 1A at 24V DC. Operating temperature ranges from -40°C to +85°C, ensuring versatile usage in industrial and consumer electronics with high mechanical and electrical durability.
MULTICOMP PRO MP006234 Micro Switch Specifications:
- Contact Rating: 2A at 12V DC/1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ maximum
- Insulation Resistance: 100MΩ minimum (at 500V DC)
- Dielectric Strength: 600V AC between same polarity terminals
- Operating Temperature: -40°C to +85°C
- Sealed IP67
- Actuator Options: Pin plunger, hinge lever, roller lever, various post options
- Dimensions: Approximately 13.3mm x 5.3mm x 7.2mm
- Rated Voltage: 12V DC, 24V DC
- Rated Resistive Load: 2A at 12V DC, 1A at 24V DC
- Overtravel: ~1.4mm to 2.5mm depending on model
- Operating Force: 50gf to 122gf depending on model
- Material: Thermoplastic housing with metal contacts
Buy the Multicomp Series Microswitch: MP006234
Order the advanced Multicomp Series MP006234 microswitch online today and benefit from high durability, IP67 sealing, diverse actuator options, and reliable electrical performance ideal for industrial and household applications, ensuring your projects run smoothly with top-notch precision and longevity.
Buy Multicomp Series MP006234 microswitch now and experience unmatched reliability and performance for automation and control needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006234?
You can click on the BUY or RFQ button to purchase MP006234 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006234?
You can download the MP006234 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006234?
MULTICOMP PRO
