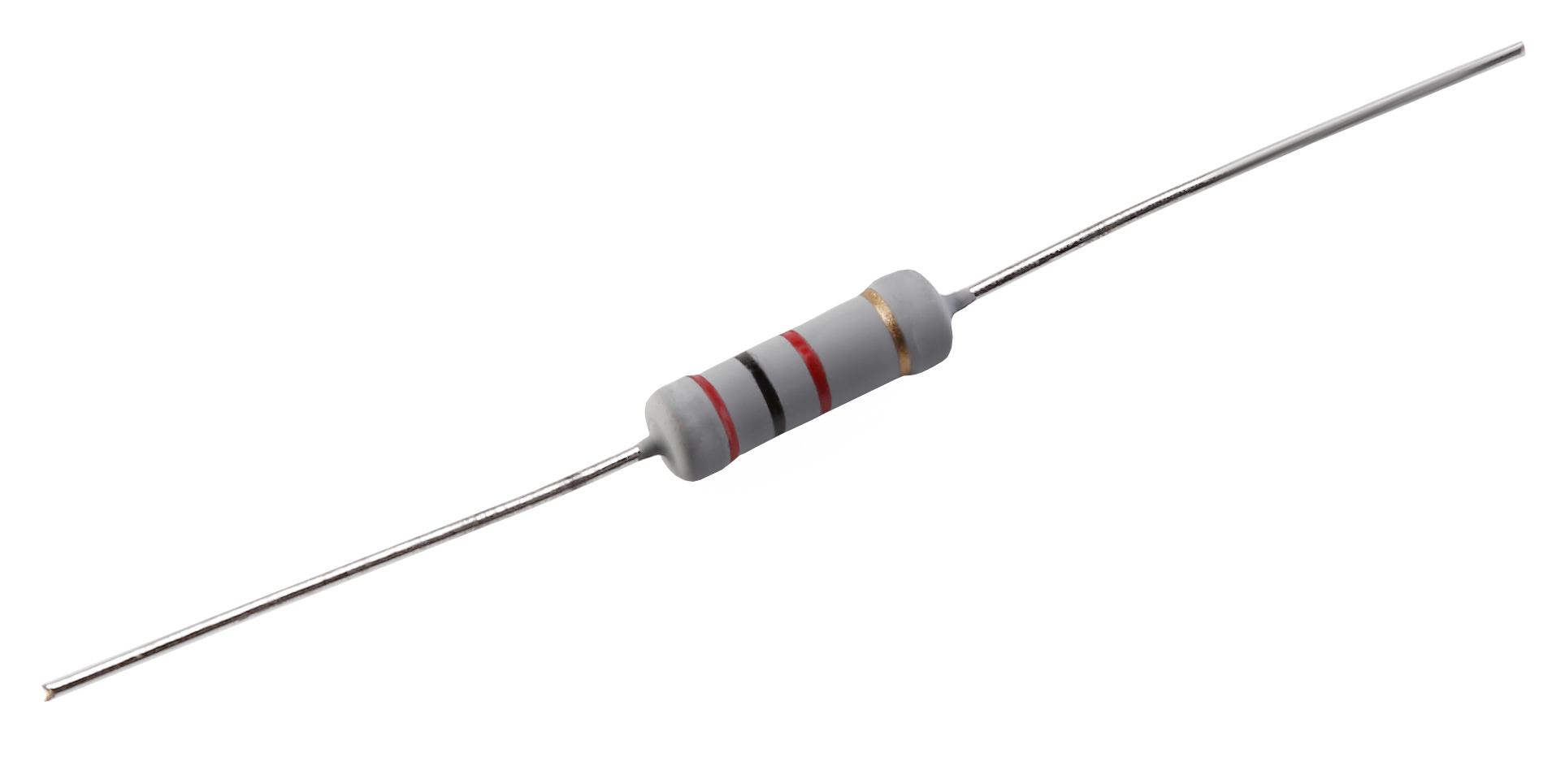

MULTICOMP-PRO MP006437 metal oxide resistor
The axial leaded metal oxide film resistor offers high stability, high surge overload capability, and precise resistance tolerance of ±2%. Designed for electrical and mechanical stability, it features a ceramic rod construction, tin-plated iron caps, and non-flame paint with vent-proof construction. It is suitable for telecommunications, medical equipment, and other high-reliability applications, providing consistent performance under overload and environmental stress. Available in a range of resistance values from 1 ohm to 10 megaohms, this resistor ensures durability, reliability, and excellent long-term stability for advanced electronic circuits.
MULTICOMP-PRO MP006437 metal oxide resistor Specifications:
- Power Rating: 1W
- Resistance Range: 1Ω to 10MΩ
- Tolerance: ±2%
- Temperature Coefficient: +200PPM/°C
- Dielectric Resistance: >10000MΩ
- Operating Voltage: 60V
- Overload Voltage: 2.5×P×R or max listed
- Resistance to Solvent: No deterioration of coatings
- Solderability: ≥95% coverage at 260°C for 0.5 seconds
- Endurance: ±1.5%±0.050 at RCWV for 1000 hours
- Insulation Resistance: >10000MΩ
- Solderability: 95% min coverage
- Terminal Strength: Tensile 2.5 kg, 10 sec
- Storage Temperature: 15°C to 28°C, Humidity < 80%
- Body color: Grey
Buy the Metal Oxide Film Resistors Series MP006437: 1W 2.2K
Enhance your electronic designs with our high-stability axial leaded metal oxide film resistor. Suitable for demanding environments such as medical equipment and telecommunications, it offers excellent overload resistance, precise tolerance of ±2%, and long-term stability. With resistance values from 1 ohm to 10 megaohms, this component guarantees durability, reliability, and optimal performance in high-reliability circuits. Easy to install, it is ideal for both professional and hobbyist applications seeking quality and consistency.
Buy Newark Metal Oxide Film Resistors MP006437 now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP006437?
You can click on the BUY or RFQ button to purchase MP006437 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006437?
You can download the MP006437 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP006437?
MULTICOMP-PRO
