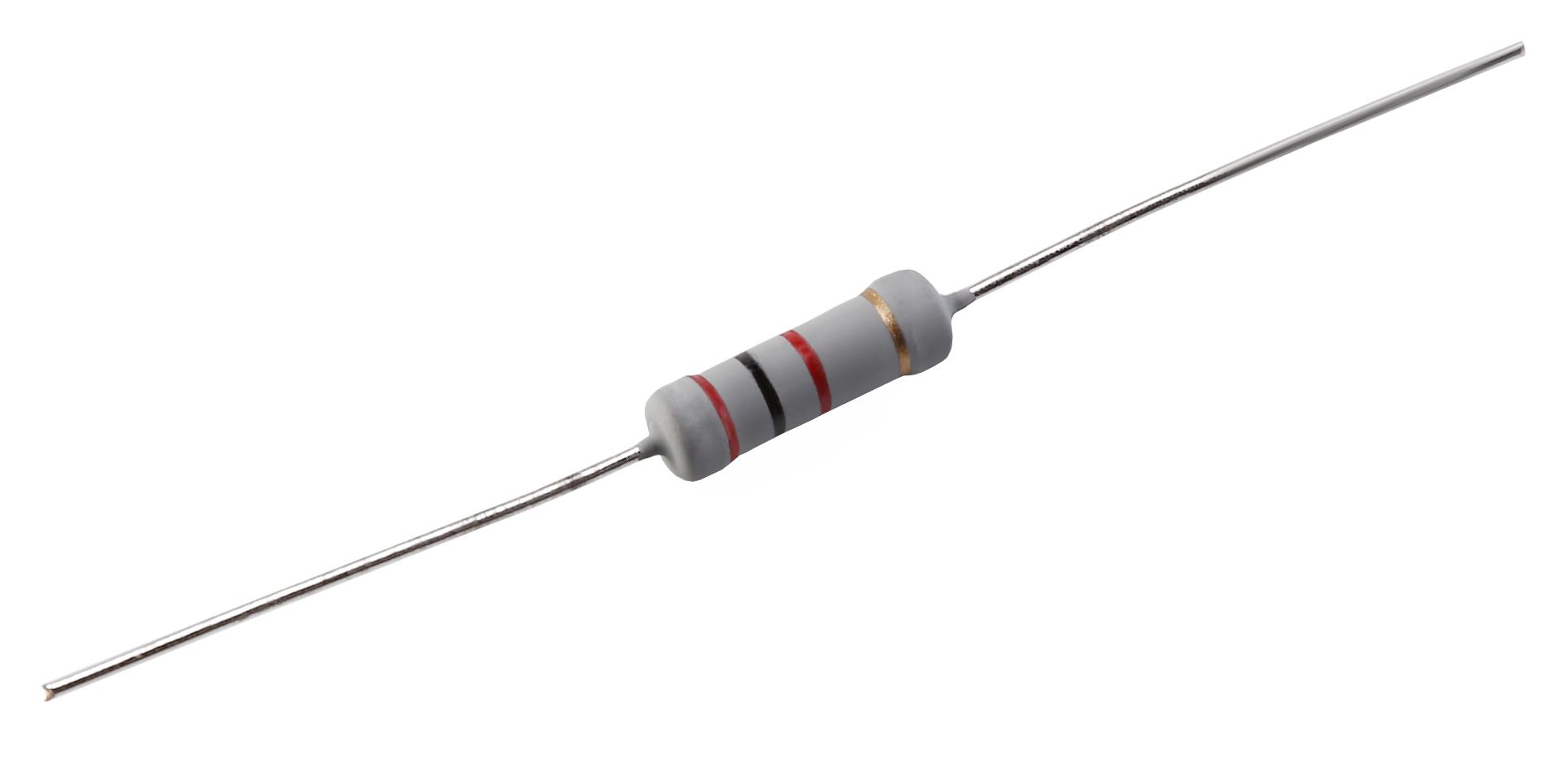

MULTICOMP PRO MP006460 Metal Oxide Resistor
These axial leaded metal oxide film resistors are rated at 1W power, with resistance values ranging from 1Ω to 10MΩ, including various decimal and kilo-ohm units. Designed for high stability, high surge capacity, and reliable performance, they feature a ceramic body with tinned iron caps and color-coded resistance values. Suitable for electronic circuits requiring controlled temperature coefficients and mechanical stability, these resistors meet RoHS compliance and IEC-60115-1 standards. Ideal for telecommunication, medical equipment, and general electronic applications, they provide excellent endurance, insulation resistance, and voltage proofing up to 600V depending on model.
MULTICOMP PRO MP006460 Metal Oxide Resistor Specifications:
- Power Rating: 1W
- Resistance Range: 1Ω to 10MΩ
- Resistance Tolerance: ±2%
- Temperature Coefficient: +200 PPM/°C
- Dielectric Resistance: >10000MΩ
- Operating Voltage: Up to 600V
- Endurance: 1000 hours at RCWV with ±1.5% tolerance
- Overload Voltage: 2.5× RCWV for 5 seconds
- Insulation Resistance: >10000MΩ
- Solderability: 95% min coverage at 260±5°C for 4 seconds
- Terminal Strength: 2.5kg tensile force
- Voltage Proof: 60 seconds at specified voltage
- Temperature Range: -55°C to +125°C
- RoHS Compliant and IEC-60115-1 standard
Buy the Buy Multicomp Metal Oxide Film Resistor Part Number MP006460 Online
Purchase the Multicomp Metal Oxide Resistor MP006460 online today to ensure high stability and reliability in your electronic projects. These resistors are ideal for applications needing precise resistance, high surge capacity, and mechanical stability. RoHS compliant and built to IEC-60115-1 standards, they offer excellent endurance, insulation resistance, and voltage proofing up to 600V. Whether for telecommunication, medical equipment, or general electronics, buy online for fast delivery and quality assurance in every resistor you need for your manufacturing or repair work.
Get Multicomp MP006460 today—designed for precision, high surge capability, and long-lasting durability in your electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006460?
You can click on the BUY or RFQ button to purchase MP006460 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006460?
You can download the MP006460 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006460?
MULTICOMP PRO
