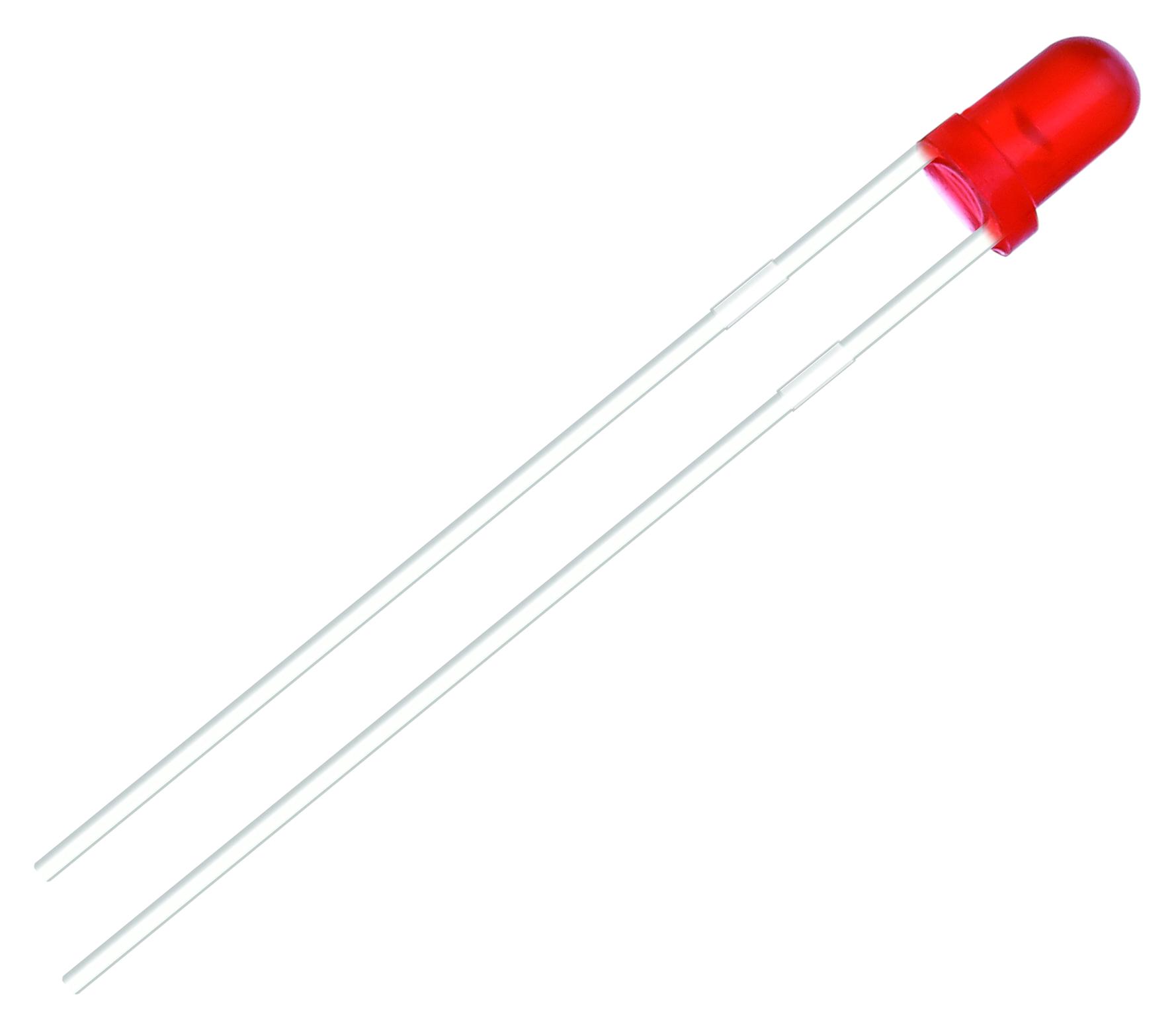

MULTICOMP-PRO MP006834 Red Indicator LED
This 3mm round red LED emits ultra-red light at a peak wavelength of 653 nm, ideal for indicator and display applications. It features a diffused red lens, a viewing angle of 50°, and a luminous intensity up to 180 mcd at 20 mA. The LED's operating voltage ranges from 1.7 to 2.4 V, with a recommended current of 30 mA to ensure optimal brightness and longevity. Designed with AllnGaP dice material, it complies with RoHS standards, and offers high reliability with a power dissipation of 85 mW and a peak forward current of 100 mA. Suitable for use in various electronic projects, its durable construction withstands temperatures from -40°C to +85°C.
MULTICOMP-PRO MP006834 Red Indicator LED Specifications:
- Package Size: 3mm Round LED Lamp
- Dice Material: AllnGaP
- Peak Wave Length: 653 nm
- Emitted Colour: Ultra Red
- Viewing Angle: 50°
- Lens Colour: Red Diffused
- Luminous Intensity: 180 mcd at 20 mA
- Forward Voltage: 1.7 - 2.4 V
- Recommended Operating Current: 30 mA
- Peak Forward Current: 100 mA (duty 1/10 @ 1kHz)
- Power Dissipation: 85 mW
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Soldering Temperature: Reflow 260°C for 5 sec
- ESD Tolerance: 2000 V
- RoHS Compliant
Buy the Buy Multicomp Pro Red 3mm Round LED Part Number MP006834 Online
Purchase the Multicomp Pro Red Indicator LED MP006834 online now to ensure high-quality, durable component performance for your electronics projects. With a 3mm round package, 653nm wavelength, 50° viewing angle, and 180mcd luminous intensity, this ultra-red LED is perfect for indicators and displays. It offers a recommended current of 30mA, a maximum voltage of 2.4V, and operates reliably between -40°C and +85°C. Buy online today to enjoy quick delivery, competitive prices, and trusted quality for your manufacturing or prototyping needs.
Order your Multicomp Pro Series MP006834 red LED today and enhance your projects with reliable illumination and excellent durability.
