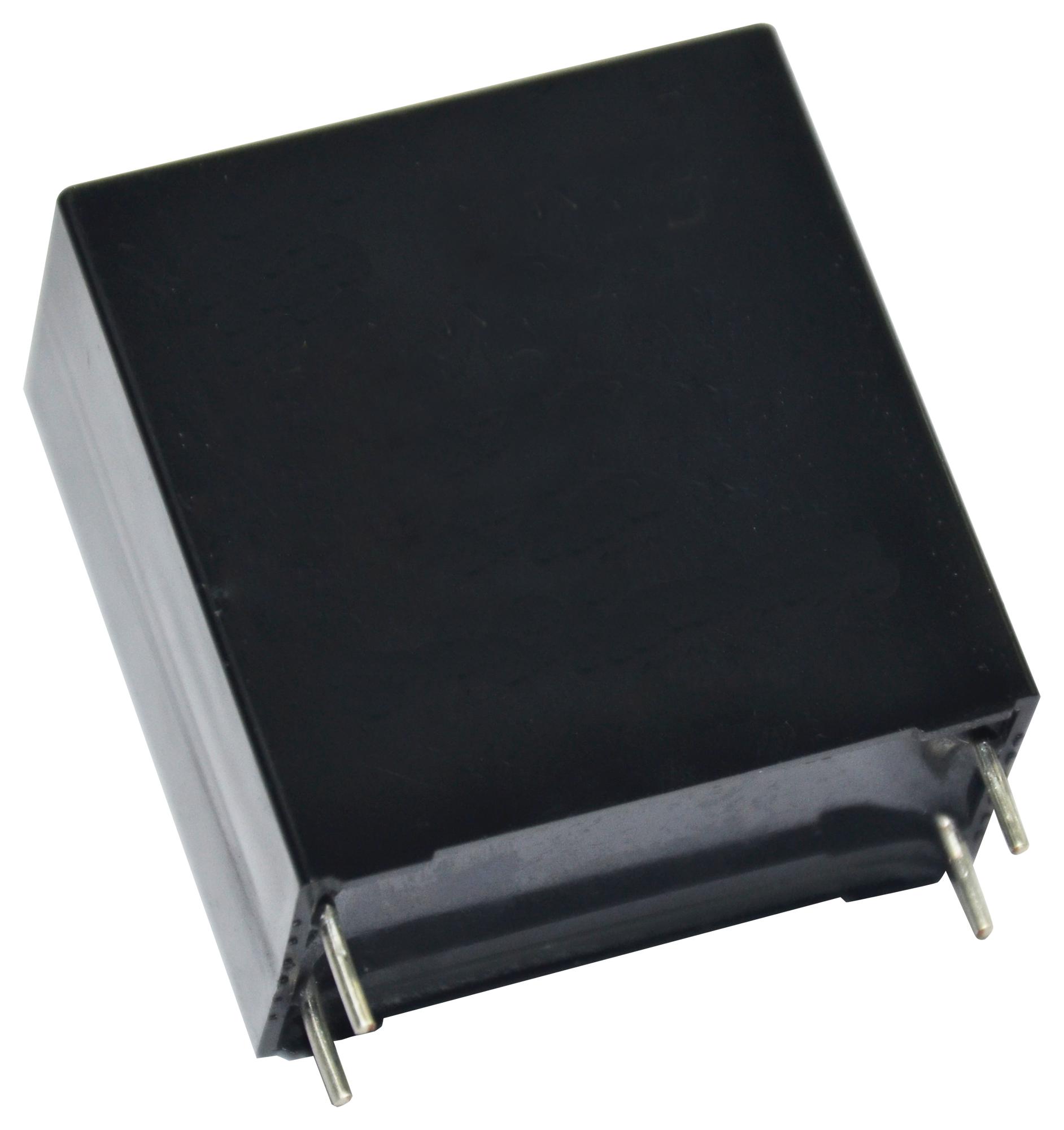

MULTICOMP PRO MPDPB800A20K0Q200 DC-Link Film Capacitor
The MPDPB800A20K0Q200 is a high-quality DC-link film capacitor designed for industrial power systems and inverter applications. Featuring metallized polypropylene film construction, it offers excellent electrical properties, high voltage capacity, and long operational lifespan. With a rating of 800V DC and capacitance of 20uF, it is suitable for filtering in frequency converters, solar inverters, and high-end power supplies. Encased in a UL94 V-0 plastic case filled with resin, this radial leaded capacitor ensures durability and safety in demanding environments.
MULTICOMP PRO MPDPB800A20K0Q200 DC-Link Film Capacitor Specifications:
- Rated Voltage: 800V DC
- Capacitance: 20uF
- Capacitance Tolerance: ±10%
- Operating Temperature Range: -40°C to +105°C
- Rated Temperature: +85°C
- Insulation Resistance: 210000s (20°C, 100V DC, 1min)
- Self-Inductance: <1nH per mm of lead spacing
- Maximum Peak Current: 1= C·dV/dt
- Material: Metallized polypropylene film
- Case Material: UL94 V-0 plastic, filled with resin
- Climatic Category: 40/105/56
- Reference Standard: GB/T17702 (IEC 61071)
- Dimensions (mm): Ww: 42.5, H: 37, T: 28, P: 19, d (Lead Dia.): 1.2
Buy the Buy Multicomp Pro DC-Link Film Capacitor Part Number MPDPB800A20K0Q200 Online
Purchase the Multicomp Pro DC-Link Film Capacitor MPDPB800A20K0Q200 online today to enhance your industrial power systems and inverter projects. This high-quality capacitor features an 800V DC rating, 20uF capacitance, and a durable UL94 V-0 plastic case filled with resin, ensuring safety and longevity in demanding environments. Its metallized polypropylene film construction provides excellent electrical properties, low inductance, and long lifespan of 100,000 hours at rated voltage and 70°C. Ideal for frequency converters, solar inverters, and high-end power supplies, it guarantees superior performance and reliable operation in power filtering and energy storage applications.
Buy Multicomp Pro MPDPB800A20K0Q200 now and experience unmatched reliability and performance in industrial power filtering applications.
