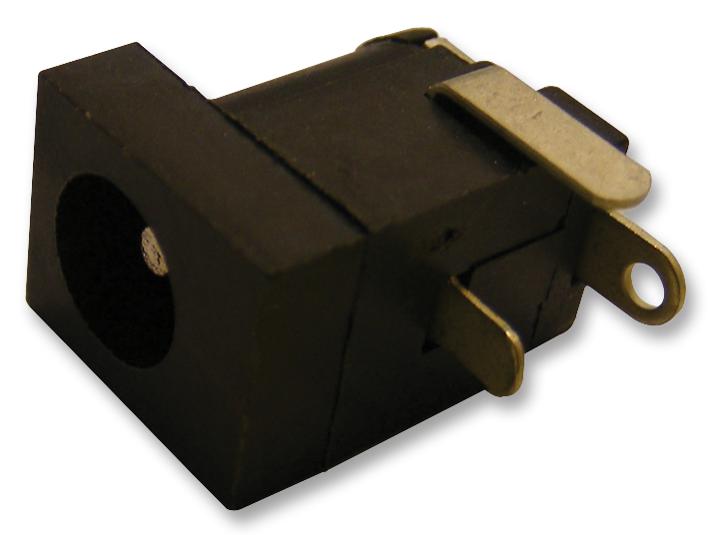

MULTICOMP-PRO MJ180PH PCB Power Socket
The low voltage PCB socket is designed for 12V DC applications, supporting 4A current capacity with durable brass and PBT material construction. It features precise dimensions for seamless PCB integration, with spring terminals and fixed terminals for reliable electrical connections. The socket withstands 500V AC for 1 minute and has insulation resistance of 100MQ at 500V DC, maintaining low contact resistance of 30mΩ. Its compact design includes reference diagrams for accurate mounting, suitable for industrial and electronic projects requiring robust power connections.
MULTICOMP-PRO MJ180PH PCB Power Socket Specifications:
- Voltage Rating: 12V DC
- Current Rating: 4A
- Switch Contact Side: 2A at 12V DC
- Contact Resistance: 30mΩ
- Insulation Resistance: 500V DC at 100MQ or more
- Withstand Voltage: 500V AC 1 Minute
- Material: Brass for center pin, PBT G15% for body
- Terminal Thickness: Spring terminal 0.25mm, Center terminal 0.4mm
- Dimensions: Refer to diagram, approximately 13.7mm diameter and 14.5mm height
- PCB Hole Reference: Millimetres specifications for mounting and compatibility
Buy the Multicomp PCB Socket – Reliable 12V Power Connector for Industrial Applications
Discover the reliable 12V DC PCB power socket designed for industrial and electronic applications. Featuring brass and PBT construction, it ensures durable and safe operation with high insulation resistance and low contact resistance. This socket is perfect for compact power delivery systems requiring robust connections, withstands voltage surges, and offers precise mounting options. Ideal for automation, manufacturing, and electronic projects, order online today to enhance your system’s reliability and performance with this high-quality power connector.
Order your Multicomp PCB Socket MJ180PH today and ensure dependable power connections for your electronic projects and industrial setups.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MJ180PH?
You can click on the BUY or RFQ button to purchase MJ180PH from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MJ180PH?
You can download the MJ180PH datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MJ180PH?
MULTICOMP-PRO
