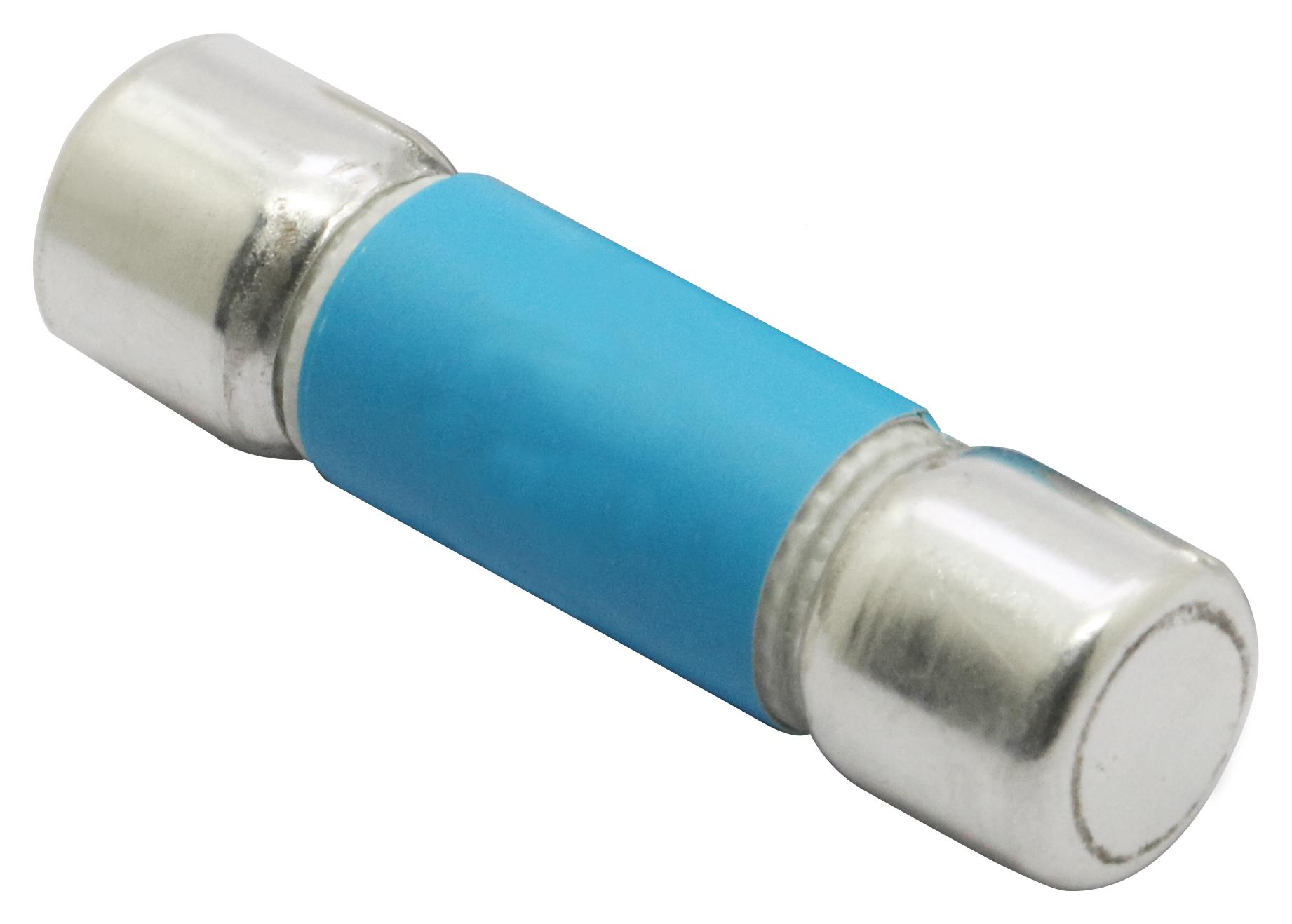

MULTICOMP PRO MP008154 Cylindrical PV Fuse
These cylindrical fuses are designed for high-power photovoltaic applications, with a robust 10mm x 38mm size and glass-fiber construction. Rated between 1A and 32A and capable of breaking capacities up to 30 kA at 1100V DC, they meet IEC 60269-6 and UL 248-19 standards. The special design includes silver-plated caps for enhanced conductivity in solar inverters, junction boxes, and battery charge controllers. They are customizable for specific needs, ensuring reliable overcurrent protection in renewable energy systems and industrial power setups.
MULTICOMP PRO MP008154 Cylindrical PV Fuse Specifications:
- Size: 10mm x 38mm
- Rated Current: 1A to 32A
- Breaking Capacity: 30 kA at 1100V DC (IEC), 30 kA at 1100V DC (UL, 1A to 20A), 30 kA at 1000V DC (UL, 25A to 30A)
- Voltage Rating: 1000V to 1100V DC
- Material: Glass-fiber with silver-plated caps
- Time Constant: 1ms to 3ms
- Standards: IEC 60269-6, UL 248-19
- Pre-Arcing Dissipation: 40-240W depending on rating
- Breaking Capacity Certifications: 30 kA (IEC, UL)
- Designed for high-power PV applications and customizable for special use
Buy the Buy Multicomp PV Fuse Part Number MP008154 Online
Purchase the Multicomp cylindrical PV fuse MP008154 online for reliable overcurrent protection in solar energy systems. Suitable for inverters, junction boxes, and battery controllers, this fuse features a robust glass-fiber body and silver-plated caps for excellent conductivity. With a rated current of 6A and a breaking capacity of 30 kA at 1100V DC, it ensures safety and durability in demanding renewable energy applications. Order now to enhance your system’s protection with proven performance and quick delivery.
Get Multicomp PV Fuse MP008154 today—designed for high-power solar systems and long-lasting overcurrent protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP008154?
You can click on the BUY or RFQ button to purchase MP008154 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP008154?
You can download the MP008154 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP008154?
MULTICOMP PRO
