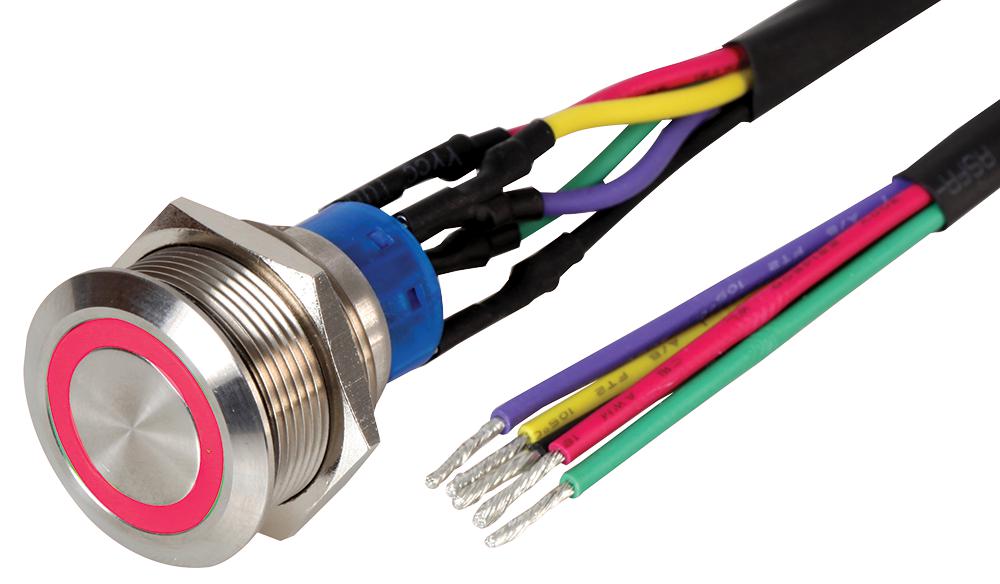

MULTICOMP PRO MPB22A0F10E312T1Q Pushbutton Switch
This metal pushbutton switch features a stainless steel bushing, PBT and PC base, and a PC and stainless steel actuator for durability. It offers IP67 ingress protection, IK10 impact resistance, and an operating temperature range of 20°C to +55°C. With a travel of 3.2mm and operation pressures of 2.541N for single-pole and 3.5+1N for two-pole models, it includes copper, silver-plated contacts rated at 5A/250V AC resistive load. Suitable for industrial controls, automation, and panel applications, it provides reliable, long-lasting operation with up to 50,000 make-and-break cycles.
MULTICOMP PRO MPB22A0F10E312T1Q Pushbutton Switch Specifications:
- Contact Material: Silver-plated Copper
- Rating: 5A/250V AC resistive load, 3A/250V AC
- Electrical Life: 50,000 cycles
- Mechanical Life: 1,000,000 cycles
- Insulation Resistance: 1,000MQ min at 500V DC
- Dielectric Strength: 2,000V RMS
- Operating Temperature: 20°C to +55°C
- Travel: 3.2mm
- Ingress Protection: IP67
- Impact Resistance: IK10
- Seal Material: Silicone
- Material: Bushing stainless steel, base PBT/PC, actuator PC/stainless steel, spring steel
- Terminal: Copper, silver plated
- Dimensions: Panel cutout compatible, max panel thickness 10mm
- Operation Pressure: 2.541N (1 Pole), 3.5+1N (2 Pole)
- Torque: 5~14Nm
Buy the Multicomp Series Pushbutton Switch: MPB22A0F10E312T1Q
Order the Multicomp Series stainless steel pushbutton switch MPB22A0F10E312T1Q online now to enhance your industrial control systems. This highly durable switch boasts IP67 protection, impact resistance IK10, and a robust design suitable for demanding environments. With a travel of 3.2mm and high electrical ratings, it offers reliable operation and long life, making it ideal for automation, machinery, and control panels. Purchase online today for fast delivery and dependable performance in your technical projects.
Get Multicomp Series pushbutton switch MPB22A0F10E312T1Q today—built for durability in industrial and automation control panels.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPB22A0F10E312T1Q?
You can click on the BUY or RFQ button to purchase MPB22A0F10E312T1Q from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPB22A0F10E312T1Q?
You can download the MPB22A0F10E312T1Q datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPB22A0F10E312T1Q?
MULTICOMP PRO
