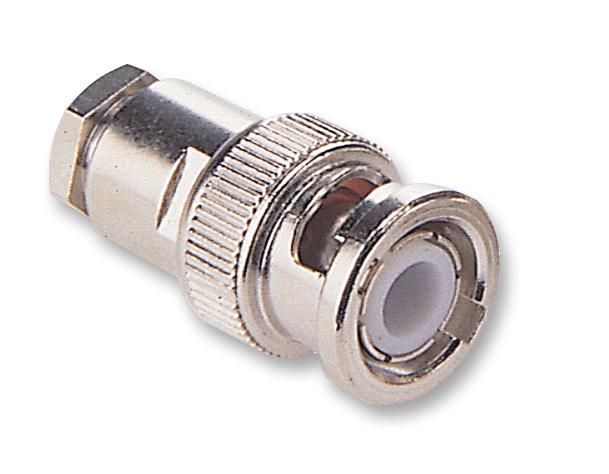

MULTICOMP-PRO MP1301358U BNC Coaxial Plug
The 13-01-3 58U is a straight BNC coaxial plug designed for high-frequency RF applications. Crafted with a brass body, nickel plating, and gold-plated contact, it operates up to 11 GHz and supports RG58 cables with a maximum diameter of 75mm. It features a PTFE insulator, rubber gasket, and offers excellent electrical performance with a contact resistance of 1.5 milliohms and a VSWR of 1.35. The connector supports a maximum DC current of 1.5mΩ, withstands temperatures from -65°C to +165°C, and is mounted via clamp connection, ensuring reliable, high-quality signals in communication systems.
MULTICOMP-PRO MP1301358U BNC Coaxial Plug Specifications:
- Connector Type: BNC Coaxial
- Body Style: Straight Plug
- Impedance: 50Ω
- Contact Material: Brass with Gold Plating
- Frequency Max.: 11GHz
- Connector Mounting: Clamp
- Body Plating: Nickel
- Cable Diameter Max.: 75mm
- Coaxial Type: RG58
- Contact Resistance: 1.5 milliohms
- DC Current Max.: 1.5mΩ
- Material: Brass, PTFE, Rubber
- Operating Temperature: -65°C to +165°C
- Proof Voltage: 2kV
- VSWR: 1.35
- Working Voltage: 500V
Buy the Buy multicomp:ro BNC Coaxial Part Number MP1301358U Online
Purchase the high-quality BNC coaxial plug online to ensure reliable performance in RF systems. This connector features gold-plated brass contacts, supports frequencies up to 11 GHz, and is ideal for RG58 cables. Its durable construction includes a PTFE insulator, rubber gasket, and nickel-plated body, providing stability, excellent electrical performance, and temperature resilience from -65°C to +165°C. Perfect for professional communication setups, this BNC plug offers robust connection, ease of mounting with clamp, and meets industry standards for high-frequency signal transmission.
Get multicomp:ro MP1301358U today—built for precision and long-lasting durability in high-frequency RF applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP1301358U?
You can click on the BUY or RFQ button to purchase MP1301358U from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP1301358U?
You can download the MP1301358U datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP1301358U?
MULTICOMP-PRO
