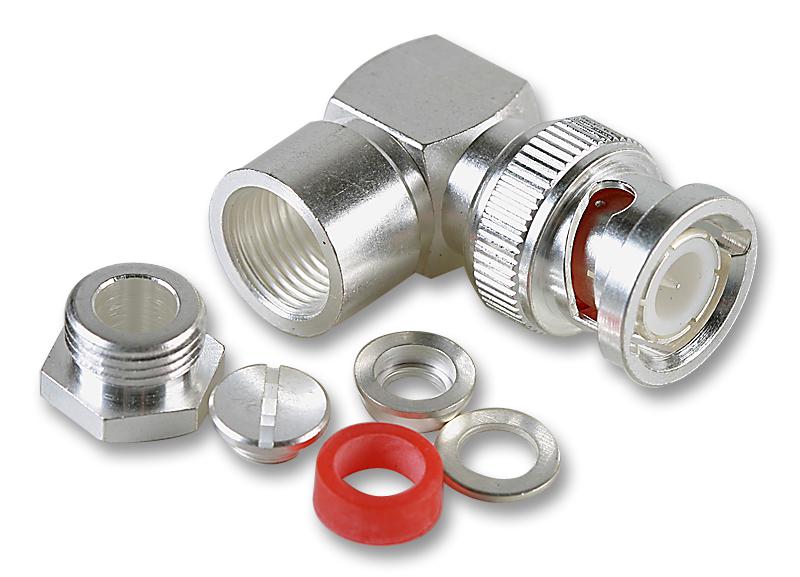

MULTICOMP PRO MP1306F458U BNC Coaxial Connector
The 13-06F-4 58U is a right-angle BNC coaxial connector designed for RG58 RF cables. Made from nickel-plated brass with a gold-plated brass center contact, it ensures reliable signal transmission and durability. Capable of handling a maximum DC current of 1A and rated at 500V, this connector performs efficiently within an operating temperature range from -65°C to 165°C. It features a clamp coaxial termination, a body style as an elbow, and supports high-frequency applications up to 11GHz, making it ideal for RF and communication systems.
MULTICOMP PRO MP1306F458U BNC Coaxial Connector Specifications:
- Connector Type: BNC Coaxial
- Body Style: Right Angle Plug
- Coaxial Termination: Clamp
- Impedance: 50Ω
- Coaxial Cable Types: RG58
- Contact Plating: Gold
- Frequency Max: 11GHz
- Connector Mounting: Cable
- Body Plating: Nickel
- Cable Diameter Max: 5mm
- Contact Resistance: 1.5mΩ
- DC Current Max: 1A
- Material: Brass with Silicone Gaskets
- Mounting Orientation: Elbow
- Operating Temperature: -65°C to +165°C
- Proof Voltage: 2kV
- Working Voltage: 500V
- VSWR: 1.35
- Soldering: Centre contact to cable conductor, screw cap assembly
- Certification: RoHS compliant
Buy the Multicomp Pro MP1306F458U – Reliable BNC Coaxial Connector for Industrial Applications
Purchase the Multicomp Pro BNC coaxial connector online to ensure a high-quality, reliable connection for RF systems. Designed for durability, it features a nickel-plated brass body and gold-plated contact, supporting frequencies up to 11GHz. Ideal for cable assemblies requiring secure, low-resistance connections, it accommodates RG58 cables with a max diameter of 5mm. Its robust build handles operating temperatures from -65°C to 165°C and offers a working voltage of 500V, making it essential for professional RF and communication applications. Buy now for quick delivery and peace of mind.
Get Multicomp Pro MP1306F458U today—built for precision, durability, and high-frequency performance in RF and communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP1306F458U?
You can click on the BUY or RFQ button to purchase MP1306F458U from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP1306F458U?
You can download the MP1306F458U datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP1306F458U?
MULTICOMP PRO
