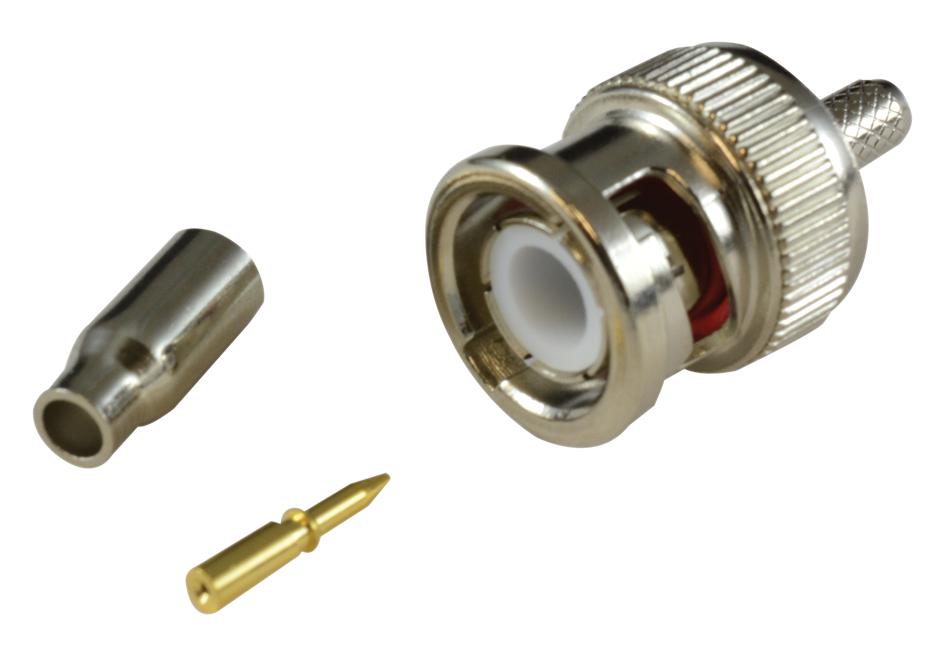

MULTICOMP PRO MP13101RG174 BNC Connector
The Multicomp Pro MP13101RG174 BNC straight plug connector is engineered for RG174 coaxial cables, delivering reliable, low-reflection connections up to 4 GHz. Featuring a gold-plated center contact, it ensures excellent conductivity and durability, requiring solder or crimping as needed. The nickel-plated zinc shell safeguards against environmental factors, while PTFE insulation provides excellent electrical performance. This compact, lightweight design suits RF communications, networking, and industrial applications, meeting strict MIL-STD-348A standards. The connector ensures robust performance, easy installation, and cost-effective solutions for high-frequency signal transmission, and it is supported by a 12-month warranty, ideal for professional and technical use.
MULTICOMP PRO MP13101RG174 BNC Connector Specifications:
- Frequency Range: DC - 4GHz
- Nominal Impedance: 50Ω
- Voltage Rating: 500V Max.
- VSWR: 1.5 Max @ 1GHz
- Shell Material: Zinc, Nickel Plated
- Center Contact: Brass, Gold Plated
- Insulation: PTFE
- Cable Type: RG-174U or Equivalent
- Cable Attachment: Crimp
- Crimp Size Required: Contact: 1.8(0.071) Hex, Ferrule: 3.5(0.138) or 4.6(0.181) Hex
- Operating Temperature Range: -20°C to +80°C
- Connector Type: BNC Straight Plug
- Standards: MIL-STD-348A
- RoHS Compliant
Buy the Multicomp Series BNC Cable Connector: MP13101RG174
Enhance your RF, communications, or networking setup with the high-quality Multicomp Pro BNC connector, supporting up to 4 GHz. Its durable construction features nickel-plated zinc shell, gold-plated center contact, and PTFE insulation for optimal electrical performance and environmental resistance. Compact and lightweight, it’s suitable for professional installations requiring reliability and ease of assembly. Compliant with MIL-STD-348A standards, this connector offers excellent durability and low VSWR, making it ideal for industrial, audio, data, and telecommunication applications. Purchase online today for robust performance and fast delivery.
Get Multicomp Pro MP13101RG174 BNC connector today—designed for RF and network systems with durable, high-quality performance and easy crimping.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP13101RG174?
You can click on the BUY or RFQ button to purchase MP13101RG174 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP13101RG174?
You can download the MP13101RG174 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP13101RG174?
MULTICOMP PRO
