MULTICOMP PRO MP2402L1TGG RF coaxial connector

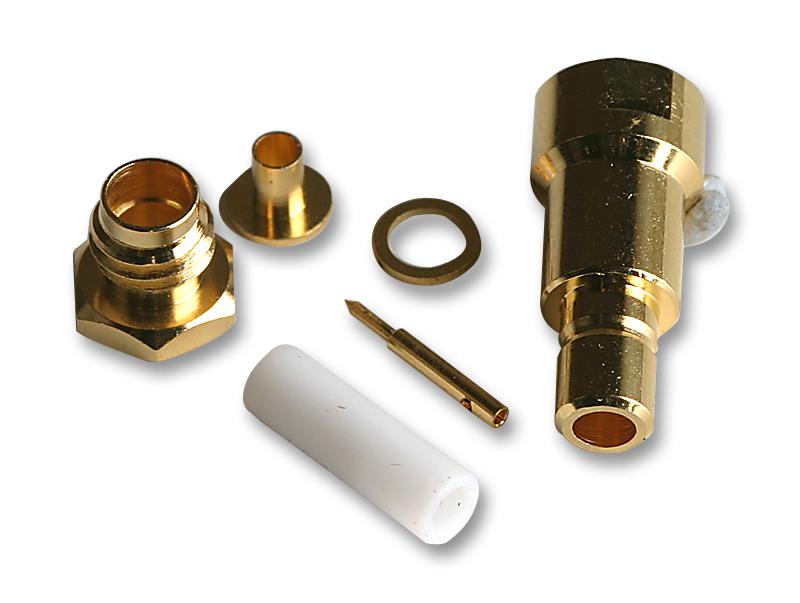

The SMP straight jack connector is designed for use with RG174 RF coaxial cables. Made from gold-plated brass, it features a center contact and PTFE insulator, ensuring reliable performance. This connector supports up to 500 mating cycles and operates within a temperature range of -65°C to 165°C. It is part of the Multicomp Pro product line, which is rated 4.6 out of 5 stars, and comes with a 12-month limited warranty. Additionally, 96% of customers would recommend it to others. Suitable for RF applications requiring durability and high performance.
MULTICOMP PRO MP2402L1TGG RF coaxial connector Specifications:
- Frequency Range: DC-4 GHz
- Nominal Impedance: 50Ω
- Working Voltage: 335 Volts Max.
- VSWR: 1.35 Max.
- Materials: Bodies and Center Contact: Brass Per JIS-C3604, Insulation: PTFE Per ASTM D1457 and ASTM D1710
- Interface: MIL-STD-348A
- Cable Attachment: Outer Clamp, Inner Solder
- Suitable for RG174U or similar style cable
- Operating Temperature Range: -65°C to +165°C
- Finish: Brass, Gold Plated (minimum 3μ inch)
- Supports up to 500 mating cycles
- Part Number: MP-24-02L-1-TGG
- dimensions: Millimeters (Inches)
- Environmental standards: RoHS compliant
Buy the Buy Multicomp Pro RF Coaxial Connector Part Number MP2402L1TGG Online
Enhance your RF connection setup with our high-quality coaxial connector, compatible with RG174U cables. Made from durable gold-plated brass and PTFE insulation, it ensures excellent signal integrity and long-term performance. Designed to withstand up to 500 mating cycles and operate efficiently within a temperature range of -65°C to 165°C, this connector offers reliable performance in demanding environments. Perfect for test and measurement, communication, and broadcast applications, it guarantees superb connectivity and value for professional and hobbyist use.
Buy Multicomp Pro MP2402L1TGG now and experience unmatched reliability and high performance in RF switching and testing applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP2402L1TGG?
You can click on the BUY or RFQ button to purchase MP2402L1TGG from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP2402L1TGG?
You can download the MP2402L1TGG datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP2402L1TGG?
MULTICOMP PRO
