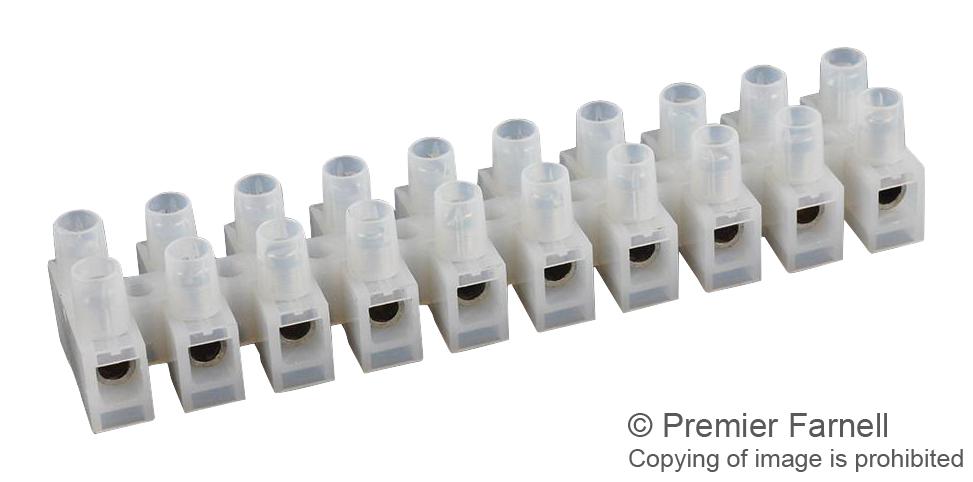

MULTICOMP PRO MC001822 Dual-Row Terminal Block
The MC001822 from Multicomp Pro is an industrial-grade H-type dual-row terminal block with an 8.2mm pitch and 20 poles, designed for reliable electrical connections. It supports wire sizes from 12 AWG to 22 AWG, with a max current of 20A and voltage rating of 600V, making it suitable for various automation and control systems. The terminal accepts stripped wires of 4.5mm to 5.5mm, with continuous operation up to 105°C and a minimum insulation withstand voltage of 2000VAC. Constructed with white PA66 (UL94-V2), zinc-plated steel screws, and nickel-plated brass cage clamps, it combines durability and safety in demanding industrial environments.
MULTICOMP PRO MC001822 Dual-Row Terminal Block Specifications:
- Current Rating: 20A
- Voltage Rating: 600V
- Wire Range: 12 AWG to 22 AWG
- Stripped Length: 4.5mm to 5.5mm
- Operation Temperature: -30°C to +85°C
- Max Continuous Working Temp: 105°C
- Insulation Withstands Volt: ≥2000VAC
- Insulation Resistance: >2000 MΩ at 500VDC
- Material: White PA66 (UL94-V2)
- Insulating Body: PA66
- Screw Material: Steel, Zinc Plated
- Cage Clamp Material: Brass, Nickel Plated
- Dimensions: Length varies with model, pitch 8.2mm
Buy the Multicomp Series Dual-Row Terminal Block: MC001822
Order the Multicomp MC001822 dual-row terminal block now for dependable electrical connections in your industrial projects. Designed with an 8.2mm pitch and capable of handling 20A at 600V, it ensures safety and longevity. Its construction features durable materials like UL94-V2 rated PA66, zinc-plated steel screws, and nickel-plated brass clamps. Suitable for wire sizes from 12 to 22 AWG, with a temperature range from -30°C to 105°C, this terminal block is ideal for automation, control panels, and industrial wiring. Purchase online to ensure quick delivery and secure your connection needs today.
Get Multicomp MC001822 today—built for industrial durability with high current capacity and reliable connection features.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001822?
You can click on the BUY or RFQ button to purchase MC001822 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001822?
You can download the MC001822 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001822?
MULTICOMP PRO
