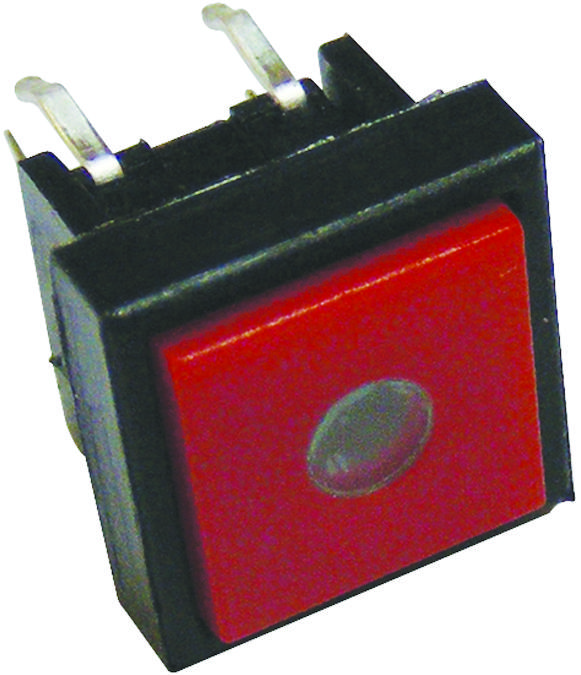

MULTICOMP-PRO TS3B23 Tactile Switch
The TS3B23 is a durable SPST pushbutton tactile switch with solder terminals and momentary contact functionality, ideal for industrial and automation projects. It features a robust black housing and red cap for easy identification. This switch supports up to 50mA current at 12V DC and withstands 250V AC for 1 minute, ensuring reliable performance. It offers a contact resistance of 100mΩ, insulation resistance of 100Megaohms, and an operating force of 160gf+30gf. With a total travel of 0.25mm and a minimum operating life of 1 million cycles, it guarantees longevity and consistent operation in demanding environments. Operating temperature range from +10°C to +160°C and PC mounting compatibility make it versatile for various applications.
MULTICOMP-PRO TS3B23 Tactile Switch Specifications:
- Circuit: SPST
- Current: 50mA
- Voltage Rating: 12V DC, 250V AC for 1 minute
- Dielectric Withstanding Voltage: 250V AC for 1 minute
- Max. Contact Resistance: 100mΩ (initial)
- Min. Insulation Resistance: 100Megaohms
- Operating Force: 160gf +30gf
- Total Travel: 0.25 +0.2 mm
- Min. Operating Life: 1,000,000 cycles
- Solder Specifications: Suitable for PCB mounting
- Operating Temperature: +10°C to +160°C
- Housing Color: Black with red cap
- Dimensions: Millimetres (Inches) based on mounting diagrams
Buy the Buy multicomp Tactile Switch Part Number TS3B23 Online
Enhance your electronic designs with the reliable multicomp Tactile Switch TS3B23, featuring a durable solder terminal connection and a quick-momentary contact. Designed for industrial use, it supports up to 50mA current at 12V DC and withstands high dielectric voltage of 250V AC for one minute. This switch is built for longevity, enduring over 1 million cycles with a total travel of 0.25mm, operating in temperatures from +10°C to +160°C. Its compact size and PCB mounting make it ideal for automation, instrumentation, and control systems, ensuring dependable switching performance in demanding environments.
Order your multicomp SeriesTS3B23 tactile switch today and ensure reliable contact operation for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO TS3B23?
You can click on the BUY or RFQ button to purchase TS3B23 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part TS3B23?
You can download the TS3B23 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of TS3B23?
MULTICOMP-PRO
