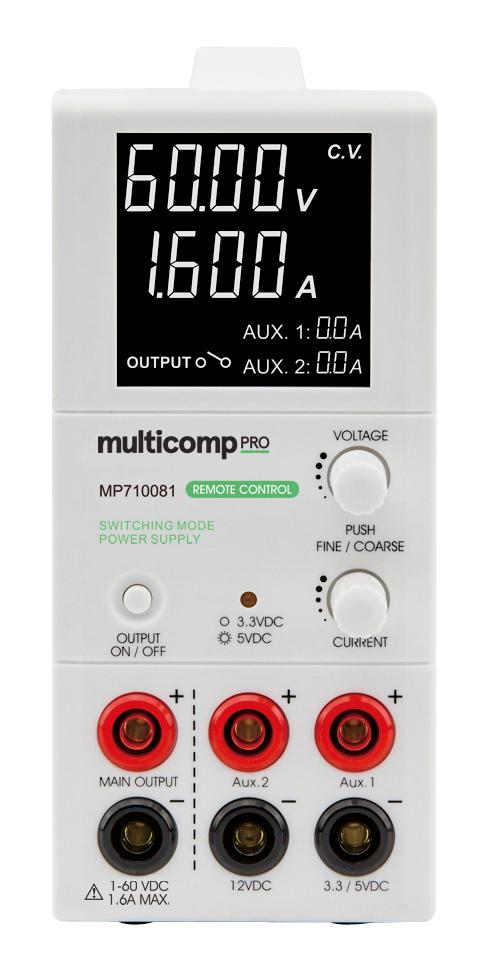

MULTICOMP PRO MP710081US precision switching power supply
The MP710081 from Multicomp Pro is a 60V, 1.6A switching mode power supply featuring current limiting control. It offers high accuracy, compact size, and easy portability. The unit uses rotary encoder tuning integrated with a microcontroller for precise voltage and current adjustments. It includes a 4-digit LCD display that is remotely programmable via USB, with a resolution of 10mV and 10mA. The power supply has three isolated inputs—one variable and two fixed—and displays information such as constant current (CC), constant voltage (CV), current, voltage, output status, and auxiliary output current. It complies with EN 61010 LVD and EN55011 EMC CE standards. Safety features include short circuit, overload, over temperature, and tracking over-voltage protection. Cooling is achieved through natural convection. The package includes the power supply, test lead set, USB cable, US power cord, and quick start guide.
MULTICOMP PRO MP710081US precision switching power supply Specifications:
- Output Voltage Range: 1V DC to 60V DC
- Output Current Range: 0.25A to 1.6A
- Voltage Regulation (Load 10-90%): 70mV
- Voltage Regulation (Line 90-264V AC): 25mV
- Ripple & Noise (peak to peak): <180mV
- Current Regulation (Load 10-90%): 50mA
- Line current variation (90-264V AC): 20mA
- Ripple & Noise (peak to peak): <50mA
- Switching Operation Frequency: 50kHz to 150kHz
- Aux Output 1: Fixed 3.3/5V DC, 1.8A continuous, 2A max
- Aux Output 2: Fixed 12V DC, 800mA continuous, 1A max
- Power Factor: >0.9
- Efficiency at max power: 280.5%
- Display: 4-digit LCD with 10mV and 10mA resolution
- Protection: Short circuit, overload, over temperature, tracking over-voltage
- Input Voltage: 100V-240V AC, 50/60Hz
- Dimensions: 70mm x 150mm x 250mm
- Weight: 2kg
Buy the Multicomp Pro MP710081 U– Reliable 60V 1.6A Switching Power Supply for Industrial Applications
Order the Multicomp Pro MP710081 online now to enjoy reliable performance, precise voltage control, and multiple safety features. Designed for industrial testing and troubleshooting, it offers a broad voltage range, high accuracy, and convenient remote USB programmability. Its three isolated outputs—one variable and two fixed—allow flexible connections for various applications requiring specific voltage and current settings. The compact, portable design, combined with comprehensive safety protections like short circuit and over temperature, makes this power supply ideal for professional and laboratory use. Buy online today for fast delivery and persistent performance.
Get Multicomp Pro MP710081 today—built for precision, safety, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP710081US?
You can click on the BUY or RFQ button to purchase MP710081US from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP710081US?
You can download the MP710081US datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP710081US?
MULTICOMP PRO
