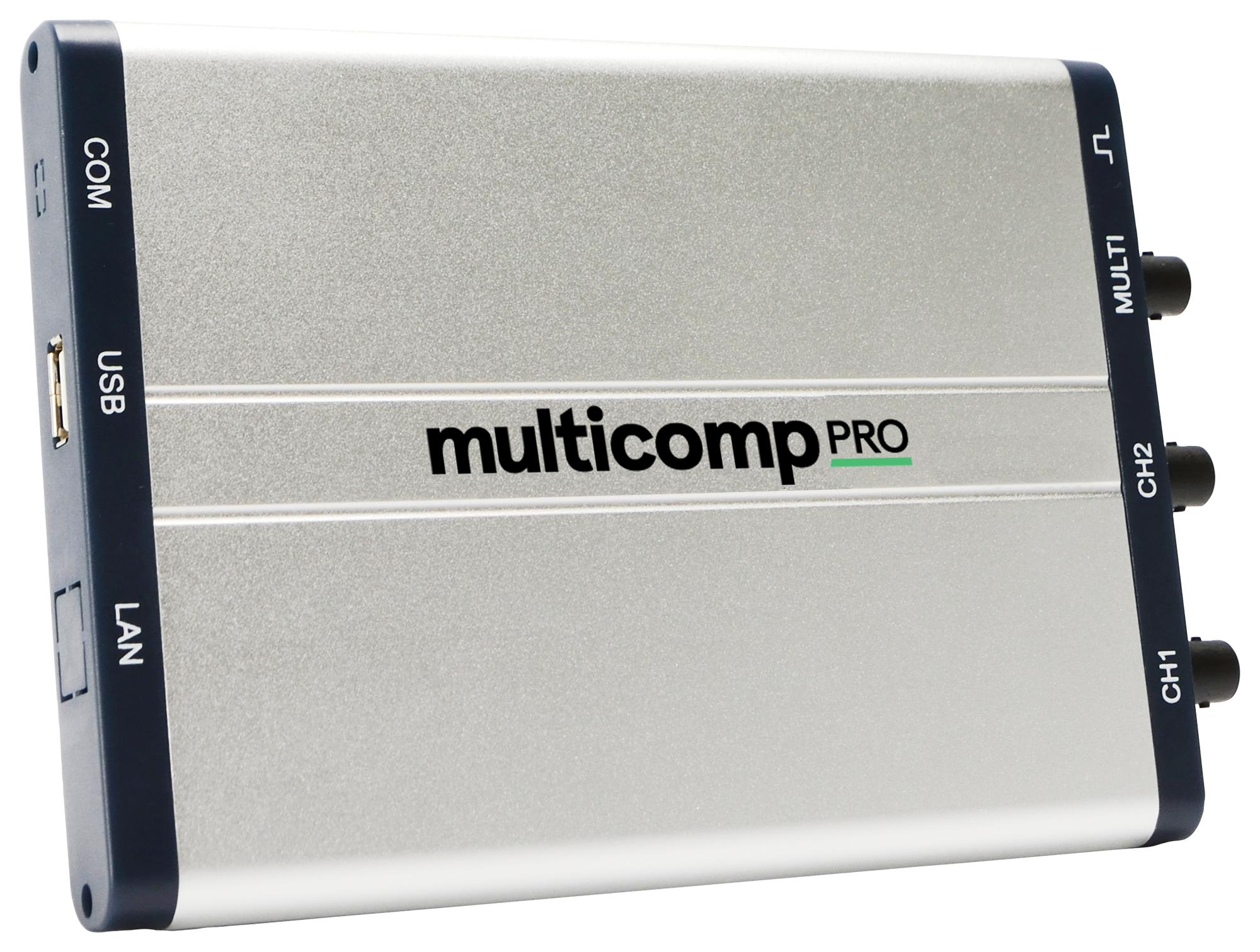

MULTICOMP PRO MP720017US PC Oscilloscope

The MP720017 is a two-channel, 25MHz, 8-bit PC-based oscilloscope featuring USB 2.0 isolation. It offers 5K record lengths, a user-friendly interface, multiple trigger options, USB bus powering, and an ultra-thin, portable design. The device supports X-Y and FFT modes with waveforms displayed concurrently, horizontal scales from 5ns/div to 100s/div with stepped adjustments, and 8-bit vertical resolution on both channels. It provides vertical sensitivity from 5mV/div to 5V/div, and trigger types including edge, pulse, video, slope, and alternate modes. Additional features include auto, normal, and single trigger modes, sample/peak detect/average acquisition modes, synchronized input/output, pass/fail testing, external trigger input with TTL level standards. Comes with PC interface, USB cable, CD-ROM, manual, probes, and probe adjustment tool.

View MP720017USDatasheet [pdf]

Buy the Buy Premier Farell MP720017 Oscilloscope Part Number MP720017US Online

Purchase the Premier Farell MP720017 two-channel PC-based oscilloscope online for precise measurements up to 25MHz bandwidth. Its 8-bit vertical resolution, USB 2.0 interface, and 5K record length make it suitable for detailed signal analysis, troubleshooting, and research. The lightweight, ultra-thin design ensures portability, while multiple trigger modes and FFT support provide comprehensive analysis capabilities. Complete with probes, manual, and connecting cables, this oscilloscope is ideal for engineers, technicians, and students seeking reliable performance and versatile features in a compact form factor.

Buy Premier Farell MP720017 now and experience unmatched reliability and performance with a portable design and versatile trigger options ideal for technical analysis.
