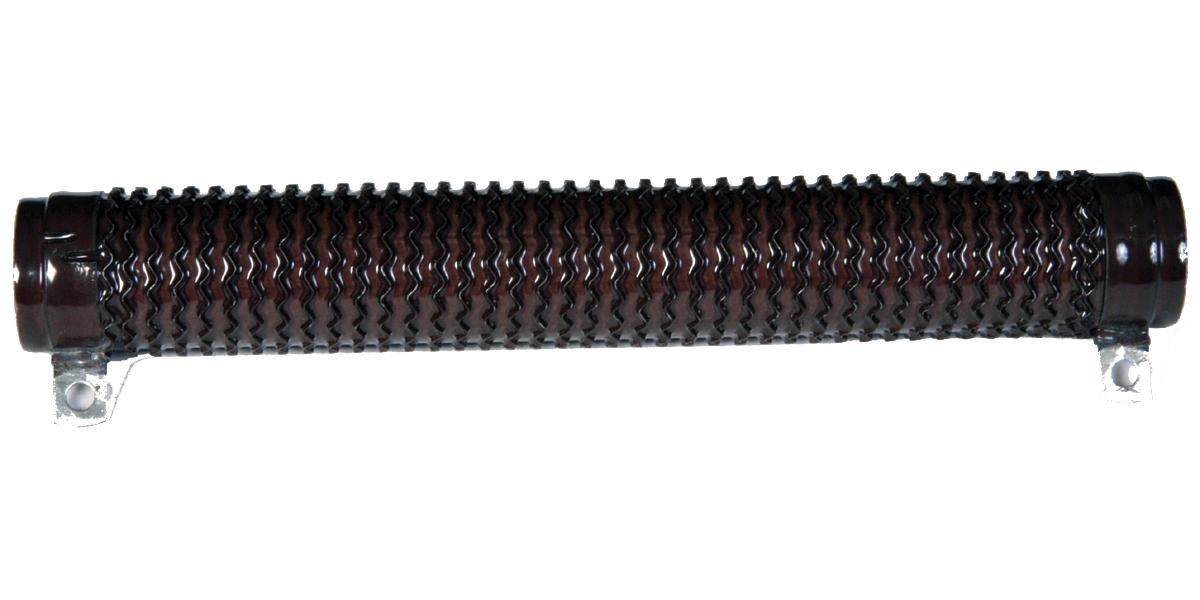

MULTICOMP-PRO MC14649 Wirewound Resistor
The MC14640 is a high-power wire-wound resistor with a tubular ceramic core and lead-free vitreous enamel coating, rated at 300W with ±10% tolerance. Designed for industrial applications, it features solder-coated lug terminals, a resistance of 100 ohms, and a temperature coefficient of 400ppm/°C. It withstands 1,000V AC dielectric voltage and can handle overloads at 10 times its rated wattage briefly. Suitable for environments up to 400°C with linear derating, it ensures reliable, high-power performance in demanding industrial settings.
MULTICOMP-PRO MC14649 Wirewound Resistor Specifications:
- Material coating: Lead free vitreous enamel
- Material core: Tubular ceramic
- Terminals: Tinned lug with hole
- Resistance: 100 ohms
- Power Rating: 300W at +25°C in free air
- Resistance Tolerance: ±10%
- Resistor Element Type: Wirewound
- Temperature Coefficient: 400ppm/°C
- Overload: 10 times rated wattage for 5 sec
- Dielectric withstanding Voltage: 1,000V AC from terminal to mounting bracket
- Derating Linearly from 100% at +25°C to 0% at +400°C
- Dimensions: Not specified, application-based selection recommended
- RoHS Compliant: Yes
Buy the Multicomp Wirewound Resistor – Reliable High-Power Industrial Component for Industrial Applications
Order the high-power wirewound resistor from Multicomp Pro online now. Featuring a tubular ceramic core, 300W power rating, 100 ohms resistance, and lead-free vitreous enamel coating, this resistor excels in high-temperature and industrial applications. Its robust design includes solder-coated lug terminals, withstands 1,000V AC dielectric voltage, and handles overloads at 10 times rated wattage briefly. Perfect for demanding industrial environments, it ensures reliability, durability, and precise performance across a wide temperature range, with linear derating up to 400°C.
Get Multicomp wirewound resistor MC14649 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC14649?
You can click on the BUY or RFQ button to purchase MC14649 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC14649?
You can download the MC14649 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC14649?
MULTICOMP-PRO
