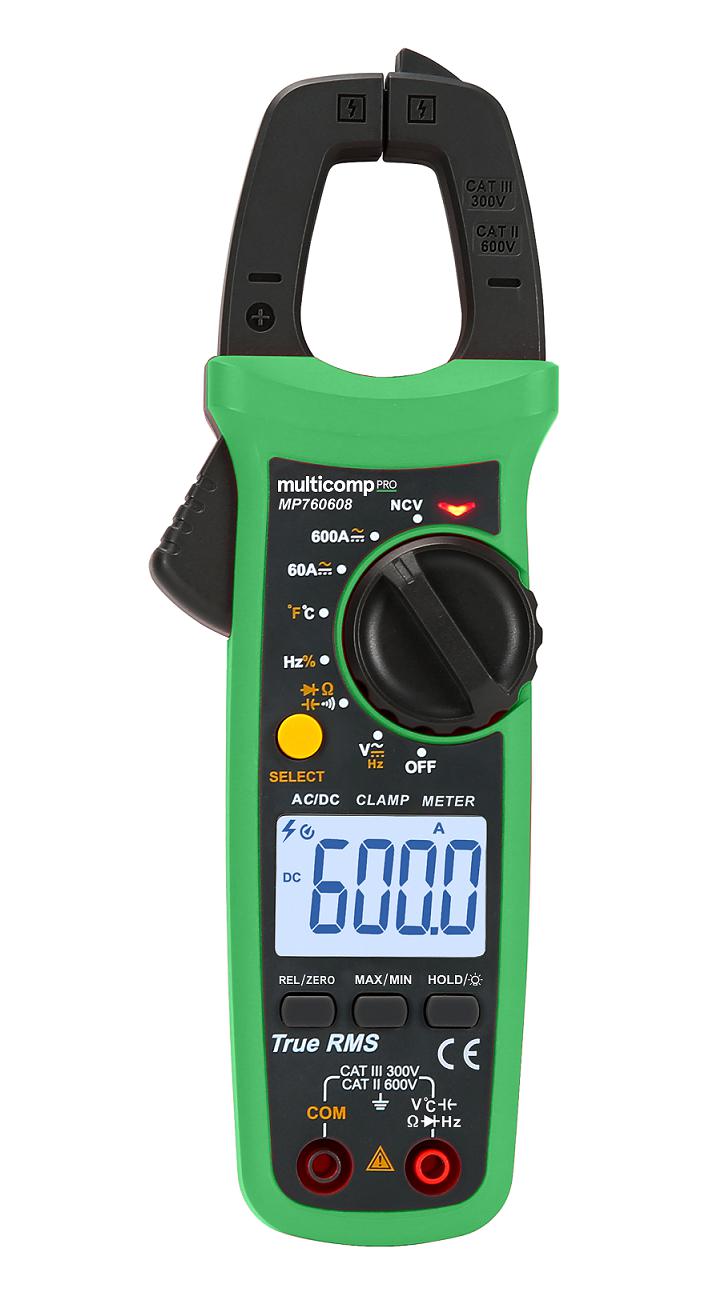

MULTICOMP PRO MP760608 Clamp Meter
The MP760608 is a lightweight, portable true RMS clamp meter capable of measuring AC and DC currents with automatic range detection, ensuring precision and safety for electrical testing. It features a 28mm jaw opening, high voltage frequency measurement from 10Hz to 60kHz, and low voltage from 60Hz to 10MHz. With functions including NCV detection, continuity test, MAX/MIN, relative mode, zero mode, and data hold, it is compliant with safety standards EN61010-1 (CAT II 600V / CAT III 300V). Its compact size of 215mm x 63mm x 36mm and 248g weight make it ideal for engineers and technicians.
MULTICOMP PRO MP760608 Clamp Meter Specifications:
- Display Count: 6000
- Power: 1.5V battery (AAA) x 2
- Display Size: 37mm x 25mm
- Product Size: 215mm x 63mm x 36mm
- Weight: 248g
- Jaw Opening: 28mm
- AC Current Range: 0.04 to 400A (MP760605), 400A (MP760606), 600A (MP760608, MP760609)
- DC Current Range: 0.06 to 400A (MP760606, MP760608, MP760609)
- AC Voltage: up to 600V with ±10.8% accuracy
- DC Voltage: up to 600V with ±0.5% accuracy
- Resistance: up to 40MΩ with ±0.8% accuracy
- Capacitance: up to 60mF with ±4% accuracy
- Frequency Measurement: 10Hz to 60kHz for AC high voltage, 60Hz to 10MHz for low voltage
- Temperature: -40°C to 0°C
- Safety Standards: EN61010-1 CAT II 600V / CAT III 300V
Buy the Multicomp Series Clamp Meter: MP760608
Order the Multicomp Series clamp meter MP760608 online today to enhance your electrical testing toolkit. Featuring true RMS measurement, a 28mm jaw opening, and versatile functions like NCV detection, frequency measurement from 10Hz to 60kHz, and continuity testing, this portable instrument ensures accurate and safe diagnostics. Its compact design, lightweight at 248g, and durable construction make it ideal for electrical maintenance and troubleshooting. Purchase now for reliable performance and professional-grade measurements in any electrical environment.
Buy Multicomp Series MP760608 clamp meter now and experience unmatched reliability and high-precision current measurement for electrical professionals.
