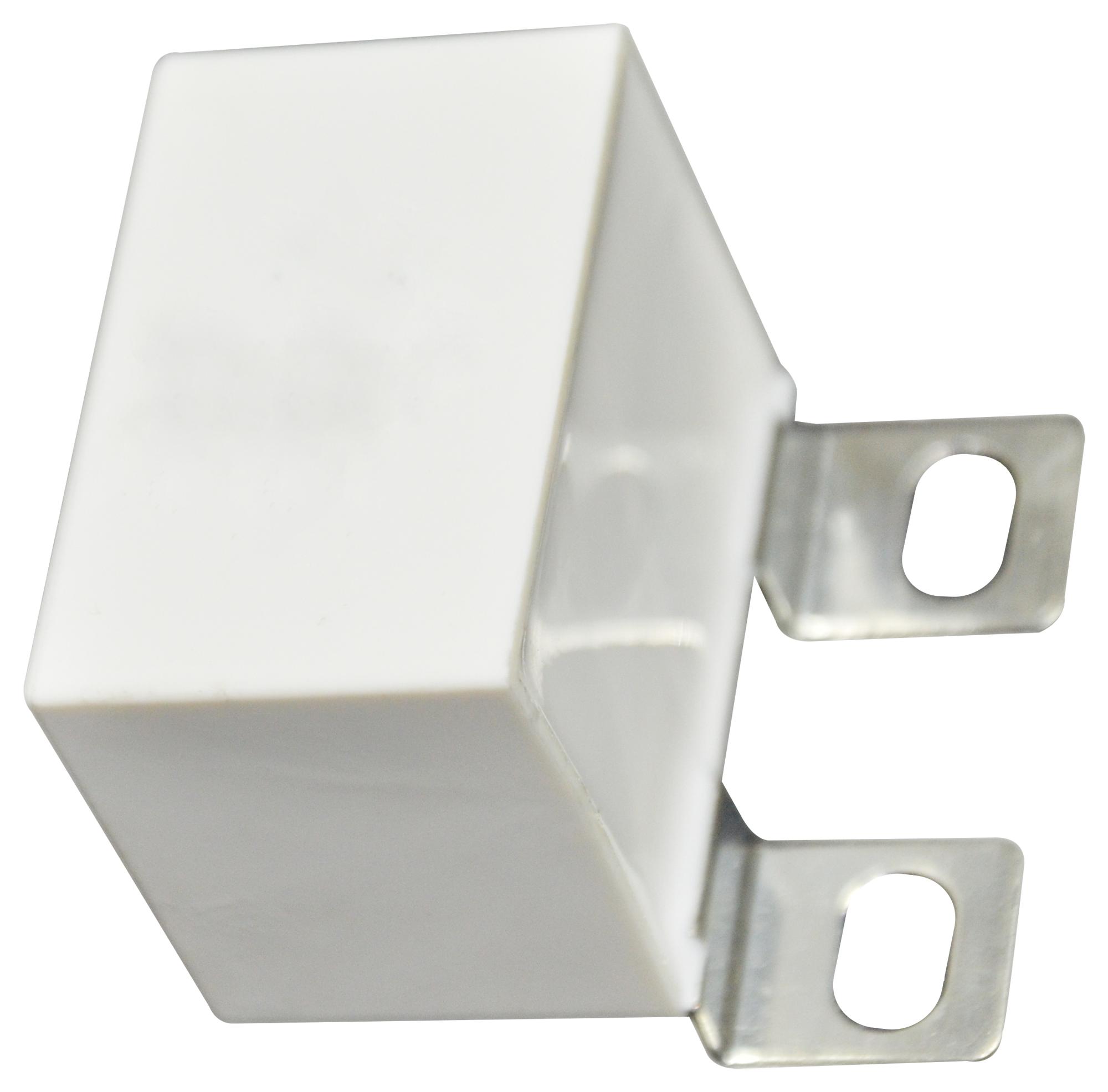

MULTICOMP PRO MPAPB1K2W47J0M6 Snubber Capacitor
The snubber capacitor from the MPAPB series is designed for high-voltage and high-frequency applications, specifically in IGBT circuits. It features a rated voltage of 1200V DC and capacitance values ranging from 0.47uF to 4.7uF, with a +5% tolerance. These screw-mount capacitors exhibit low dissipation factor of 0.0005 at 1kHz and operate within a temperature range of -40°C to +85°C. Suitable for circuit snubbing, they ensure reliable performance with excellent flame resistance and longevity, making them ideal for demanding power electronics environments.
MULTICOMP PRO MPAPB1K2W47J0M6 Snubber Capacitor Specifications:
- Rated Voltage: 1200V DC
- Capacitance Range: 0.47uF to 4.7uF
- Capacitance Tolerance: +5%
- Temperature Range: -40°C to +85°C
- Dissipation Factor: 0.0005 (1kHz, 20°C)
- Insulation Resistance: 2,100,000MΩ at 20°C, 100V DC, 1min (≤ 0.33uF), 30,000s (> 0.33uF), 20°C, 100V DC, 1min
- Voltage Proof: 1.6Un (10s)
- Climatic Category: 40/85/56
- Dimensions: 65x85 mm
- Lifespan: 100,000 hours at Un, 70°C Os
- Reference Standard: GB/T17702 (IEC 61071)
Buy the ABC Series Snubber Capacitor: MPAPB1K2W47JOM6
Discover the reliable MPAPB series snubber capacitors designed for high-voltage and high-frequency power electronics. With a rated voltage of 1200V DC and capacitance from 0.47uF to 4.7uF, these screw-mount capacitors deliver low dissipation factor, excellent flame resistance, and long operational life. Ideal for circuit snubbing in industrial applications, they maintain performance over a wide temperature range of -40°C to +85°C. Buy online now and enhance your power electronics system’s safety and efficiency with these durable, high-quality capacitors.
Order your ABC Series MPAPB1K2W47JOM6 snubber capacitor today and ensure reliable protection for your high-voltage IGBT circuits with excellent flame resistance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPAPB1K2W47J0M6?
You can click on the BUY or RFQ button to purchase MPAPB1K2W47J0M6 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPAPB1K2W47J0M6?
You can download the MPAPB1K2W47J0M6 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPAPB1K2W47J0M6?
MULTICOMP PRO
