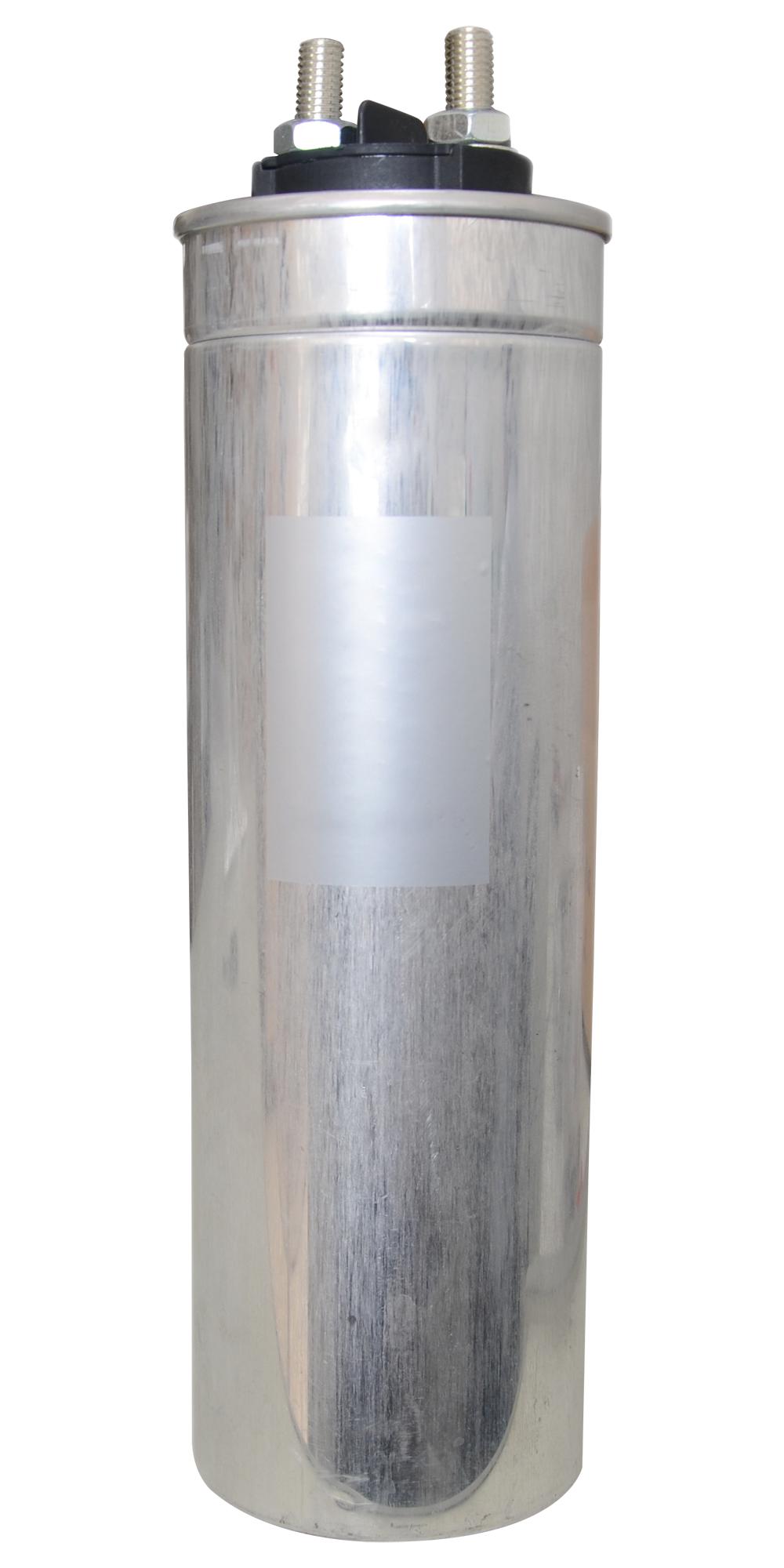

MULTICOMP PRO MPAPM3A0200J0 AC Filter Capacitor
The AC Filter Film Capacitors from the MP Series are designed for noise filtering and power smoothing in electrical systems. Constructed with metallized polypropylene film, these capacitors feature high insulation resistance, low dissipation factor, and a robust aluminum housing for durability. Suitable for various voltage ratings up to 500V AC, they provide reliable performance with a life expectancy of 60,000 hours at rated voltage and temperature range from -25°C to +70°C. These capacitors are ideal for industrial applications requiring stable, high-capacitance filtering components.
MULTICOMP PRO MPAPM3A0200J0 AC Filter Capacitor Specifications:
- Rated Voltage: 300V AC, 400V AC, 500V AC
- Capacitance: 50μF, 200μF
- Frequency: 50Hz / 60Hz
- Temperature Range: -25°C to +70°C
- Dielectric Material: Metallized Polypropylene film
- Life Expectancy: 60,000 hours at rated voltage and temperature
- Insulation Resistance: >5000S
- Dissipation Factor: tg 5 <0.0018 @ 100Hz @ +25°C
- Dielectric Strength: 300V DC/60Sec @ +25°C, 1.75Un continuous 5S, 3000V DC/60Sec
- Outer Enclosure: Round aluminum housing
- Leads: M6x20 screw with M8 nut (M6s4N.m)
Buy the Multicomp Series AC Filter Film Capacitors: MPAPM3A0200J0
Order the Multicomp Series AC Filter Capacitors online today. These high-performance film capacitors deliver exceptional filtering for industrial and electronic systems, with ratings up to 500V AC and a lifespan of 60,000 hours. Built with durable aluminum housings and metallized polypropylene dielectric, they ensure stability and reliability under various operating conditions. Perfect for noise suppression and power smoothing applications, they provide a cost-effective solution for maintaining optimal system performance.
Buy Multicomp AC Filter Film Capacitors—MPAPM3A0200J0 now and ensure reliable noise filtering and power smoothing with long-lasting durability.
