MULTICOMP PRO 550209SA01F1 D-Sub Connector
This 9-position D-sub receptacle connector features through-hole soldering for reliable connections. It has a current rating of 3A (AC/DC) and a voltage rating of 250VAC/DC, making it suitable for various electronic applications. The contact resistance is up to 30 milliohms, with insulation resistance exceeding 5000 megaohms. It operates perfectly within -40°C to 85°C. The insulator is made of high-temperature plastic, while the shell is durable iron with a tin plating for corrosion resistance. Compact and robust, it’s ideal for PCB mounting in industrial and communication equipment.
MULTICOMP PRO 550209SA01F1 D-Sub Connector Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 5,000MΩ Min.
- Operating Temperature Range: -40°C to +85°C
- Insulator Material: High Temp Plastic
- Shell Material: Iron with Tin Plated
- Contact Material: Copper Alloy Nickel Under Coated, Gold Plated
- Termination: Through-hole solder
- Number of Positions: 9

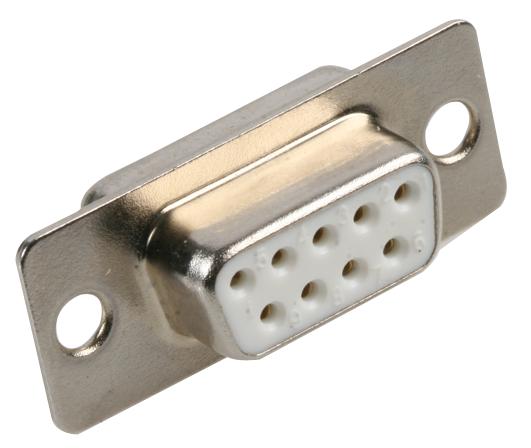

Buy the Buy Multicomp Pro D-Sub Connector Part Number 550209SA01F1 Online
Discover the high-quality D-sub connector with nine positions, designed for durable PCB applications. Rated at 3A and 250VAC/DC, it features a sturdy iron shell with tin plating, high-temp plastic insulator, and reliable through-hole soldering. Suitable for industrial and communication equipment, this connector operates from -40°C to 85°C, providing exceptional insulation resistance and low contact resistance. Ideal for engineers seeking a robust and dependable connection component, available for quick purchase online with fast shipping and excellent warranty support.
Get Multicomp Pro 550209SA01F1 today—designed for reliable PCB connections with high-temperature resistance and corrosion-proof shell.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 550209SA01F1?
You can click on the BUY or RFQ button to purchase 550209SA01F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 550209SA01F1?
You can download the 550209SA01F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 550209SA01F1?
MULTICOMP PRO
