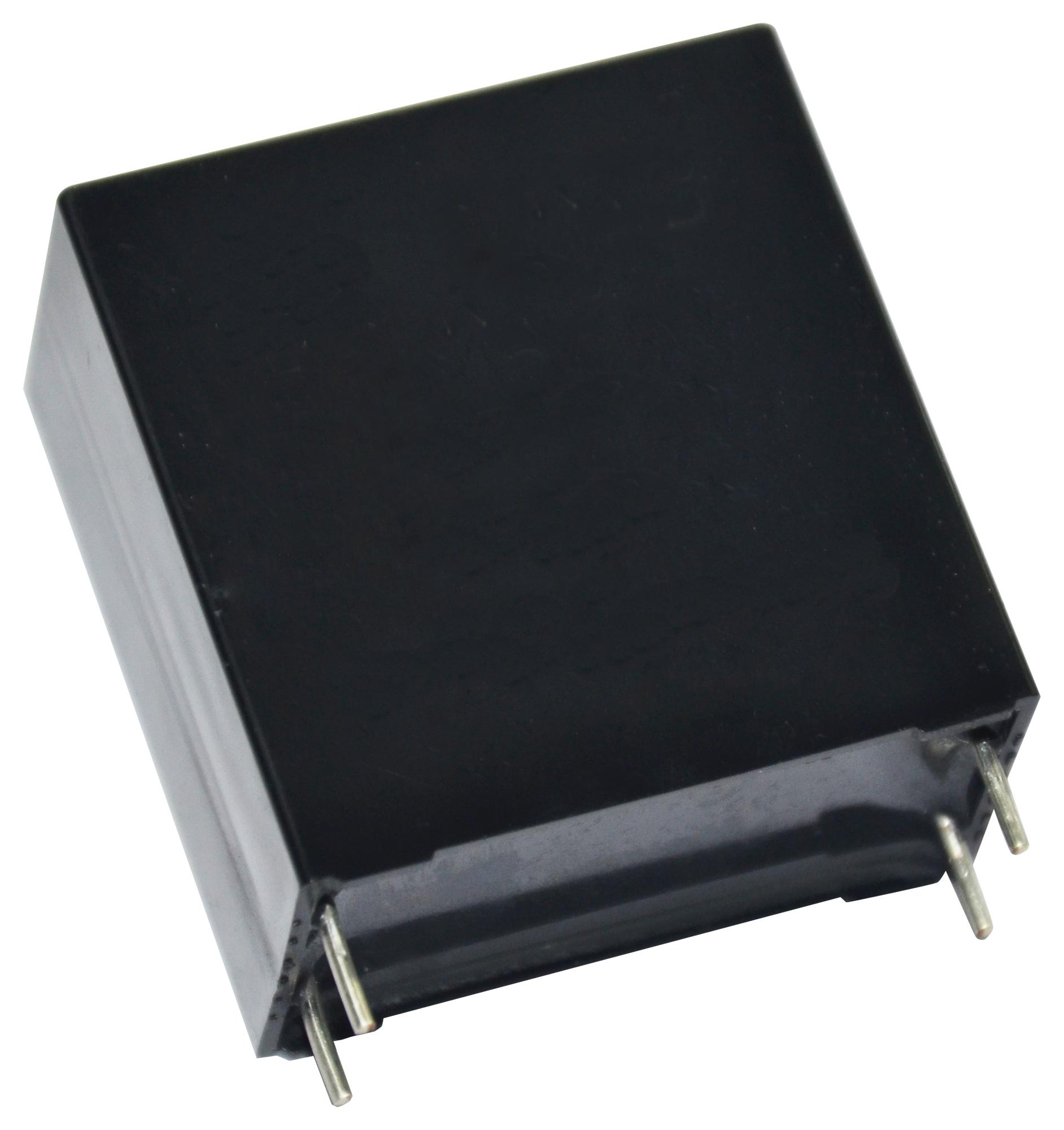

MULTICOMP PRO MPDPB1K1A15K4Q050 DC-Link Film Capacitor
The MPDPB1K1A15K4Q050 is a high-performance DC-link film capacitor with radial lead construction, designed for industrial power applications. Featuring metallized polypropylene film, it offers excellent electrical properties, including rated voltages up to 1.1kV DC and capacitance of 15 microfarads. Suitable for frequency converters, solar inverters, and high-end power supplies, it operates within -40°C to +105°C, with a long expected lifetime of 100,000 hours at rated voltage and 70°C. Its compact design ensures reliable filtering in demanding industrial environments.
MULTICOMP PRO MPDPB1K1A15K4Q050 DC-Link Film Capacitor Specifications:
- Metallized polypropylene film construction
- Rated Voltage: 600V DC, 700V DC, 800V DC, 1100V DC
- Capacitance Range: 8uF to 80uF
- Capacitance Tolerance: ±10% (K)
- Operating Temperature Range: -40°C to +105°C
- Rated Temperature: +85°C
- Expected Lifetime: 100,000 hours at rated voltage and 70°C
- Climatic Category: 40/105/56
- Insulation Resistance: 210000s at 20°C, 100V DC for 1 min
- Self-Inductance: <1nH per mm lead spacing
- Dimensions (W x H x T): 42.5mm x 45mm x 19mm
- Lead Diameter: 1.2mm
- Maximum Peak Current: C·dV/dt
- Peak current and other parameters vary with capacitance and voltage ratings
Buy the Multicomp RC – Reliable DC-Link Film Capacitor for Industrial Applications
Enhance your industrial power applications with the multicomp radial leaded DC-link film capacitor. Designed for high voltage filtering, it offers excellent performance in solar inverters, frequency converters, and high-end power supplies. With a rated voltage up to 1.1kV DC, a capacitance of 15μF, and an operating temperature range of -40°C to +105°C, it ensures long-term stability and durability. Purchase online today to integrate trusted quality into your electrical systems effortlessly.
Buy multicomp radial leaded DC-link film capacitor now and experience unmatched reliability and performance for your industrial power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDPB1K1A15K4Q050?
You can click on the BUY or RFQ button to purchase MPDPB1K1A15K4Q050 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDPB1K1A15K4Q050?
You can download the MPDPB1K1A15K4Q050 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDPB1K1A15K4Q050?
MULTICOMP PRO
