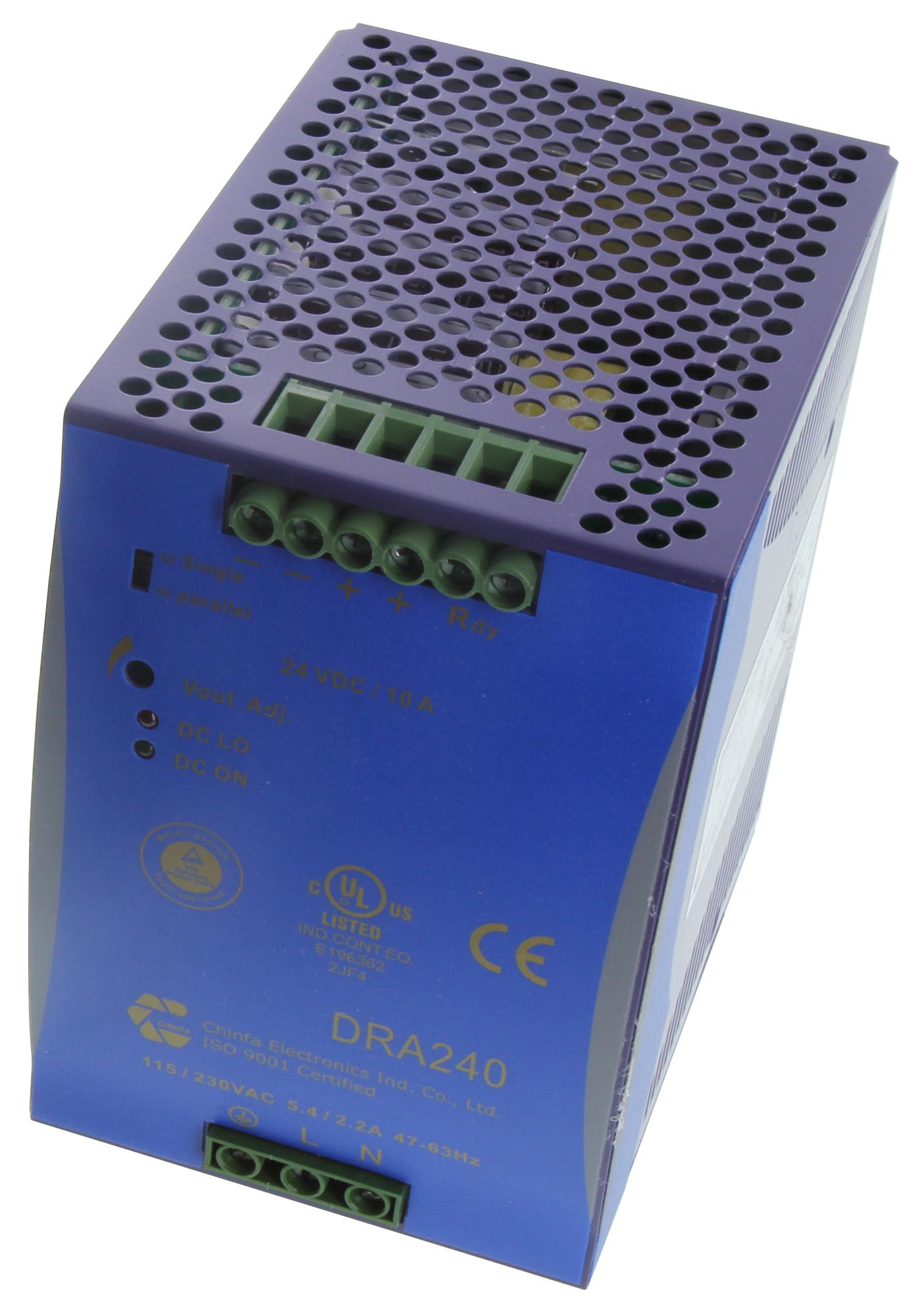

MULTICOMP PRO MPDRA24024A Power Supply
This DIN rail mountable AC to DC power supply by Multicomp features high efficiency with 89% rating, PFC, and parallel operation capability. It supports auto-select input voltage of 115V or 230VAC, provides output options of 24V at 10A or 48V at 5A, and includes protections for short circuit and overvoltage. The compact metal case measures 124.5mm x 83.5mm x 123.6mm, suitable for industrial automation and control applications. It operates in an ambient temperature range of -40°C to +71°C with a MTBF exceeding 60,000 hours, ensuring dependable performance.
MULTICOMP PRO MPDRA24024A Power Supply Specifications:
- Input Voltage: 115/230VAC (auto select), 90-132VAC at 115V, 180-264VAC at 230V
- Output Voltage: 24V or 48V DC, adjustable up to 56V for 48V model
- Output Current: 10A for 24V model, 5A for 48V model
- Efficiency: 89% typical at full load, 88% at startup
- Switching Frequency: 40 kHz
- Isolation Voltage: Input-Output 3000/4242 VAC, Input-FG 1500/2121 VAC
- Operating Temperature: -40°C to +71°C
- MTBF: Over 60,000 hours
- Dimensions: 124.5mm x 83.5mm x 123.6mm
- Cooling: Free air convection
- Protection: Overload, overvoltage, short circuit
- Certifications: UL 508, UL 60950-1, CE, Vibration and Shock Resistant
Buy the Multicomp Series Power Supply: AC to DC 240W Auto-Select 115/230V MPDRA24024A
Buy your Multicomp 240W AC to DC Power Supply online now for industrial automation or control systems. Featuring high efficiency, auto input selection of 115V or 230VAC, and PFC for optimal power factor correction, this power supply supports parallel operation, provides reliable protections, and is housed in a compact metal case. Ideal for applications requiring stable and efficient power conversion. Secure this dependable power solution today to enhance your industrial projects' performance and ensure continuous operation with ease.
Order your Multicomp Series Power Supply with 240W output today and ensure reliable power for your industrial automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDRA24024A?
You can click on the BUY or RFQ button to purchase MPDRA24024A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDRA24024A?
You can download the MPDRA24024A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDRA24024A?
MULTICOMP PRO
