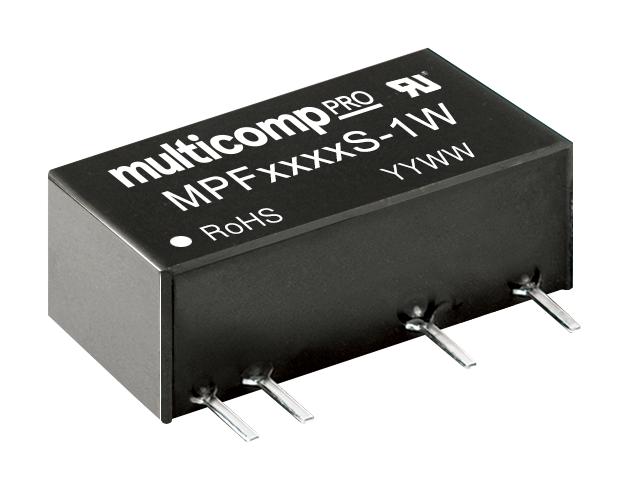

MULTICOMP-PRO MPF1515S1W DC-DC Converter
The MPF1515S-1W is a compact, 1W isolated DC-DC converter designed for applications requiring dual or single voltage outputs. It offers high efficiency up to 81%, with continuous short-circuit protection and an isolation test voltage of 3k VDC. Suitable for digital, analog, relay-driven, and data switching circuits, it operates reliably within a wide temperature range from -40°C to +105°C. Its industry-standard pinout and RoHS compliance make it ideal for distributed power supply systems requiring stable, isolated voltage conversion in tight spaces.
MULTICOMP-PRO MPF1515S1W DC-DC Converter Specifications:
- Input Voltage: 10.8V to 13.2V (nominal 12V)
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V (various models)
- Output Current: up to 410mA depending on model
- Efficiency: up to 81%
- Isolation Voltage: 3k VDC
- Ripple & Noise: 30-75mVp-p
- Operating Temperature Range: -40°C to +105°C
- Dimensions: 19.65 x 6 x 10.16 mm
- Case Material: Flame-retardant black plastic (UL94 V-0)
- Weight: 2.1g
- Input/Output Isolation Resistance: 1000 MΩ at 500VDC
- MTBF: 3500 hours
- Compliance: RoHS, CE CISPR32/EN55032 CLASS B
- Soldering Resistance: 10 seconds at 300°C
- Vibration Resistance: 5G, 10-150Hz
- Cooling Method: Free air convection
Buy the Multicomp Series 1W Isolated DC-DC Converter: MPF1515S1W
Purchase the Multicomp Series 1W DC-DC Converter MPF1515S1W online today to experience reliable, efficient voltage conversion. Its compact design, high efficiency up to 81%, and 3k VDC isolation make it perfect for industrial applications, digital and analog circuits, and data switching systems. Enjoy excellent performance across a wide temperature range from -40°C to +105°C, ensuring stability even in harsh environments. Order now for fast delivery and benefit from industry-standard pinouts and RoHS compliance for your distributed power supply needs.
Get Multicomp Series 1W Isolated DC-DC Converter MPF1515S1W today—built for power stability and long-lasting reliability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPF1515S1W?
You can click on the BUY or RFQ button to purchase MPF1515S1W from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPF1515S1W?
You can download the MPF1515S1W datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPF1515S1W?
MULTICOMP-PRO
