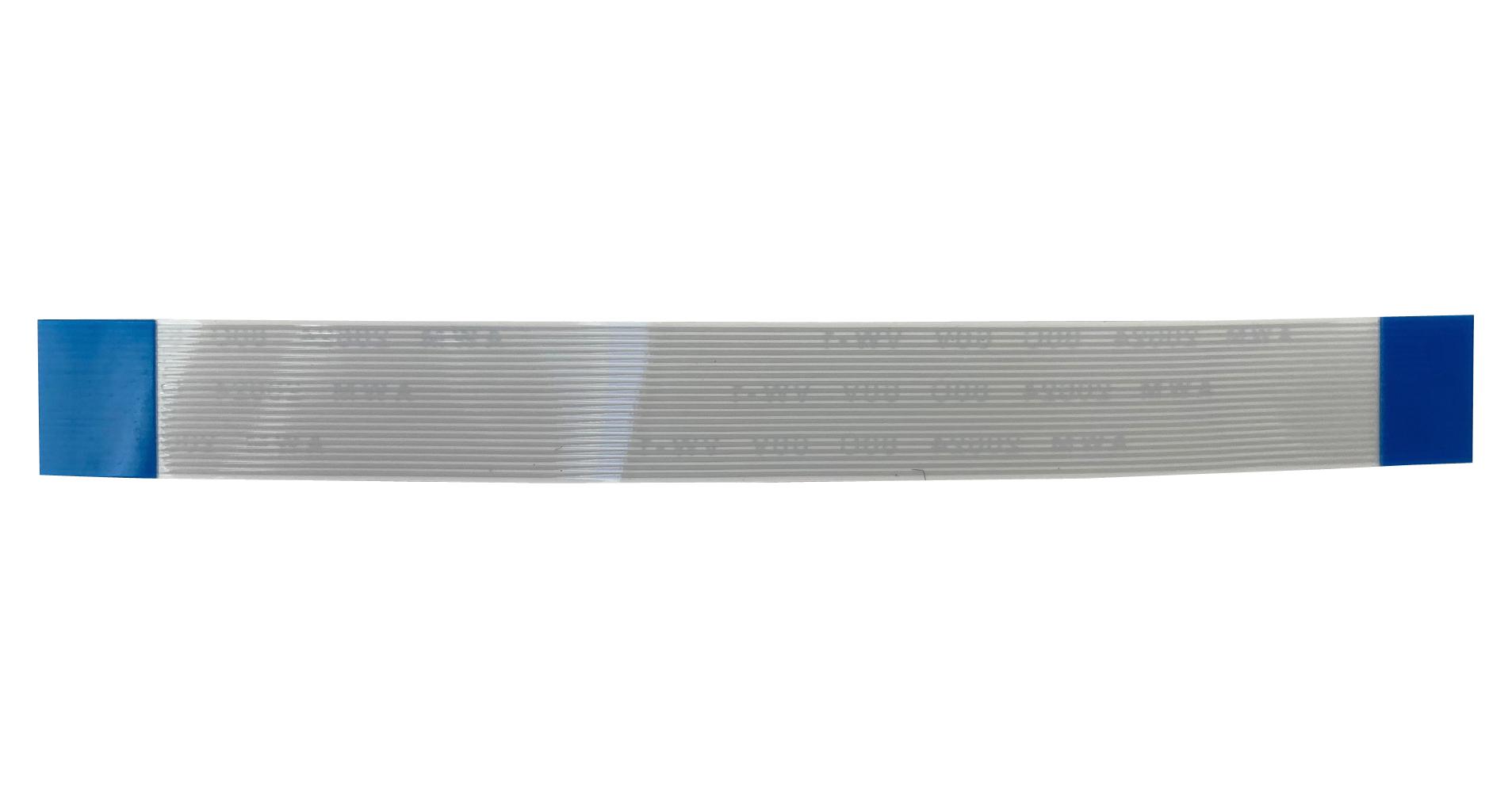

MULTICOMP PRO MPFFCA05161522A Flexible Flat Cable
The MultiComp Pro Flat Flexible Cable with 0.5mm pitch is designed for compact electronic connections. It features insulated conductors with PET support tape, brass contacts with tin plating, and is marked with UL VW-1. Available in multiple configurations, including 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 33, 34, 35, 40, 45, and 50 ways, with lengths ranging from 50mm to 200mm. Suitable for applications requiring flexible, reliable signal transmission in tight spaces, conforming to UL and RoHS standards.
MULTICOMP PRO MPFFCA05161522A Flexible Flat Cable Specifications:
- Pitch: 0.5mm
- Contact Material: Brass, Tin Plating
- Support Tape Material: PET (Blue and White)
- Marking: UL VW-1, AWM 20624 80C 60V
- Lengths Available: 50mm, 100mm, 152mm, 200mm
- Length Tolerance: 30mm to 50mm +3%, 51mm to 200mm +5%
- Temperature Rating: 80°C
- Voltage Rating: 60V
- RoHS Compliant
- Dimensions: Varies based on number of conductors; widths range from approximately 4.8mm to 6.4mm; thickness around 0.3mm
- Number of Pins: 6 to 50
- Style Options: Style A and Style B available
- Conductor Insulation: PVC with marking
- Certifications: UL Listed, RoHS Compliant
- Application: Flexible electronic connections, embedded systems, PCB interconnects, compact device wiring
Buy the Buy Multicomp Flat Flexible Cable Part Number MPFFCA05161522A Online
Enhance your electronic projects with the Multicomp flexible flat cable MPFFCA05161522A, offering 16 conductors over 152mm length. Built with high-quality materials, it ensures reliable signal transmission, ease of installation, and conforming to safety standards such as UL and RoHS. Ideal for tight spaces and flexible electronic assemblies, this cable's durable construction with tin-plated brass contacts ensures long-lasting performance. Purchase online now to access a versatile, high-quality connection solution suitable for various industrial and consumer electronics applications, supporting your design and manufacturing needs efficiently.
Get Multicomp flat flexible cable MPFFCA05161522A today—designed for high-performance, flexible, and reliable electronic connections in compact spaces.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPFFCA05161522A?
You can click on the BUY or RFQ button to purchase MPFFCA05161522A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPFFCA05161522A?
You can download the MPFFCA05161522A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPFFCA05161522A?
MULTICOMP PRO
