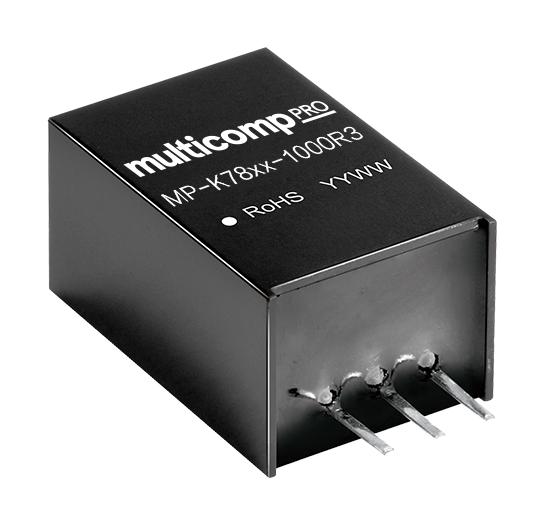

MULTICOMP-PRO MPK78151000R3 DC-DC Power Module
The MP-K78xx-1000R3 series are high-efficiency, non-isolated DC/DC converters designed for board mounting applications. They replace traditional linear regulators like LM78xx series and support a wide input voltage range of 6V to 36V. These converters feature up to 96% efficiency, low no-load input current of 0.1mA, and operate from -40°C to +85°C. They support positive and negative output voltages, include short-circuit protection, and are ideal for industrial control, instrumentation, and power supply applications. Compact and RoHS compliant, these modules ensure reliable power conversion with minimal thermal management requirements.
MULTICOMP-PRO MPK78151000R3 DC-DC Power Module Specifications:
- Input Voltage: 6-36 VDC (requiring a 22uF/50V capacitor for inputs exceeding 30 VDC)
- Efficiency: Up to 96%
- No-load Input Current: 0.1mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Dimensions: 17.5mm x 11.5mm x 9.0mm
- Case Material: Flame-retardant black plastic (UL94 V-0)
- Weight: 3.8g
- Output Voltage Range: 3V to 15V (depending on model)
- Ripple & Noise: 20mVp-p at 20MHz bandwidth
- Short-circuit Protection: Self-recovery, continuous
- Switching Frequency: 420-920 KHz depending on model
- Standards: RoHS compliant
- EMC: EN55032 Class B, IEC/EN 61000-4 series immunity
- Lifecycle: MTBF approx. 2000 hours at 25°C
Buy the Farnell Series MP-K78xx 1000R3 Power Module: MPK78151000R3
Buy the Farnell Series MP-K78xx 1000R3 power module online now and upgrade your power supplies with high efficiency, wide input range, and robust protection features. These compact, RoHS-compliant converters are perfect for industrial control, instrumentation, and power supply applications. With up to 96% efficiency, low no-load current, and support for both positive and negative outputs, they deliver dependable performance in demanding environments. Easy to install and maintain, order yours today to enhance your electronic or automation systems with quality power supplies.
Order your Farnell Series MP-K78xx 1000R3 power module today and ensure reliable, efficient power conversion for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPK78151000R3?
You can click on the BUY or RFQ button to purchase MPK78151000R3 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPK78151000R3?
You can download the MPK78151000R3 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPK78151000R3?
MULTICOMP-PRO
