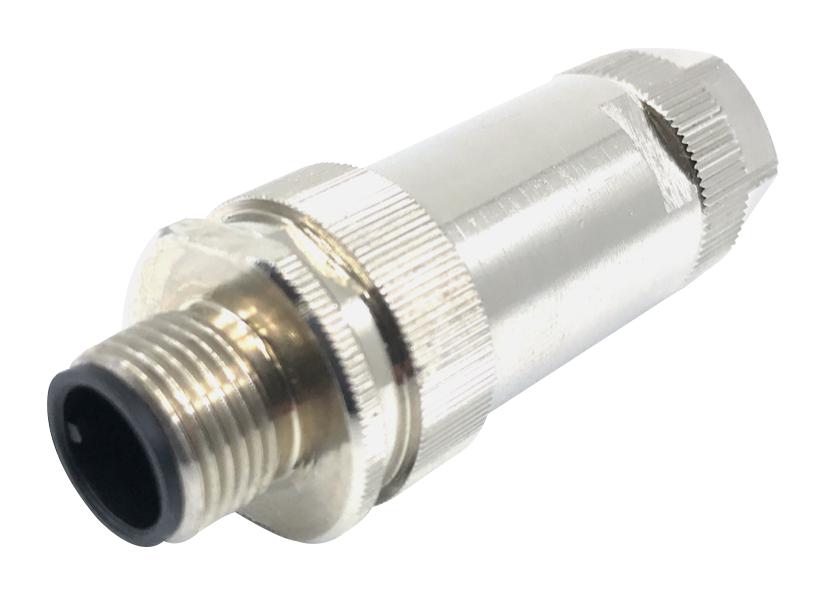

MULTICOMP PRO MPM12SC24P4AC Industrial Shielded M12 Connector
The M12 EMI/RFI Shielded Connectors from the MPM12-SC24 Series are designed for reliable data and power transmission in industrial automation and sensor applications. Featuring shielded, A-coded plugs with 4-pin configuration, these connectors have a sturdy crimp termination, IP67 ingress protection, and operate within -25°C to +85°C temperature range. Made with durable CuZn brass and polyamide housings, they support over 100 mating cycles, ensuring long-lasting performance. Suitable for harsh environments, these connectors provide excellent EMI/RFI noise immunity and robust electrical connectivity, making them ideal for industrial networking and control systems.
MULTICOMP PRO MPM12SC24P4AC Industrial Shielded M12 Connector Specifications:
- Connector Type: M12 Shielded Plug
- Number of Pins: 4
- Termination: Crimp
- Wire Gauge: 20.21 - 0.52mm² (3 - 5 ways), 0.21 - 0.33mm² (8 ways)
- Cable Outlet: 4-8mm
- Temperature Range: -25°C to +85°C IEC 60664-1
- IP Rating: IP67 IEC 60529
- Rated Voltage: 250V (3 - 4 contacts), 30V (8 contacts)
- Rated Current: 4A (3 - 5 contacts), 2A (8 contacts)
- Housing Material: CuZn, Brass alloy
- Contact Material: CuZn brass alloy, Au over Ni plating
- Connection Bodies: PA, Polyamide, Ni-plated housing
- Volume Resistance: <8mΩ
- Mating Cycles: >100 IEC 60512-9A
- Pollution Degree: 3 IEC 60664-1
- Sealing Material: TPE O-Ring, FKM O-Ring
- Mounting Torque: 60 Ncm
Buy the Premier Farnell Series MPM12-EMI/RFI Shielded Connectors: MPM12-SC24-P4AC
Order the Premier Farnell MPM12-SC24-P4AC shielded M12 connector online today to ensure robust, EMI/RFI-resistant connectivity for your industrial automation needs. Designed for durability with IP67 ingress protection, it features a crimp termination, supporting over 100 mating cycles for long-term use. Ideal for harsh environments, this connector’s gold-plated contacts and polyamide housing provide excellent electrical performance. Experience quick delivery, competitive pricing, and secure online purchasing for reliable connectivity solutions that meet industry standards.
Buy Premier Farnell MPM12-SC24-P4AC now and experience unmatched reliability and performance in industrial data transmission.
