MULTICOMP PRO PAL6B2M1CESG25 Miniature Pushbutton Switch
The PAL6 series sub-miniature pushbutton switch offers robust SPST switching with a 1.5mm to 4mm travel, operating force of 2N to 5N, and high durability with 1 million cycles. Suitable for panel mounting with a variety of hardware options, it features RoHS compliance, UL-rated soldering, and various bushing and cap choices. Designed for applications needing reliable momentary or maintained contact switching, this switch supports resistive loads up to 2A at 125V AC and 100mA at 24V DC, with a compact size and high-quality materials for durability and performance.
MULTICOMP PRO PAL6B2M1CESG25 Miniature Pushbutton Switch Specifications:
- Max. Current/Voltage Rating with Resistive Load: 2A at 125V AC, 100mA at 24V DC
- Initial Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1GΩ min. @ 500V DC
- Dielectric Strength: 1,500 VAC rms for metal material
- Electrical Life at Full Load: 100,000 cycles at 125V AC, 200,000 cycles at 24V DC
- Operating Temperature: -30°C to 85°C
- Panel Thickness: 0.8mm to 4mm
- Total Travel: 1.5mm to 4mm
- Contact Bounce: 10ms
- Mechanical Life: 1,000,000 cycles
- Torque: 0.5Nm max. applied to nut, 1.5Nm for metal material
- Soldering: Max 350°C for 5 seconds
- Materials: Case - Diallyl phthalate (UL94V-0), Cap - Polyamide 6/6
- Bushing: Multiple options including Chromium plated, stain-chromium, stain-nickel
- Switch Function: SPST, Momentary or Maintained, with various terminal options
- RoHS compliant, Lead-free, UL rated

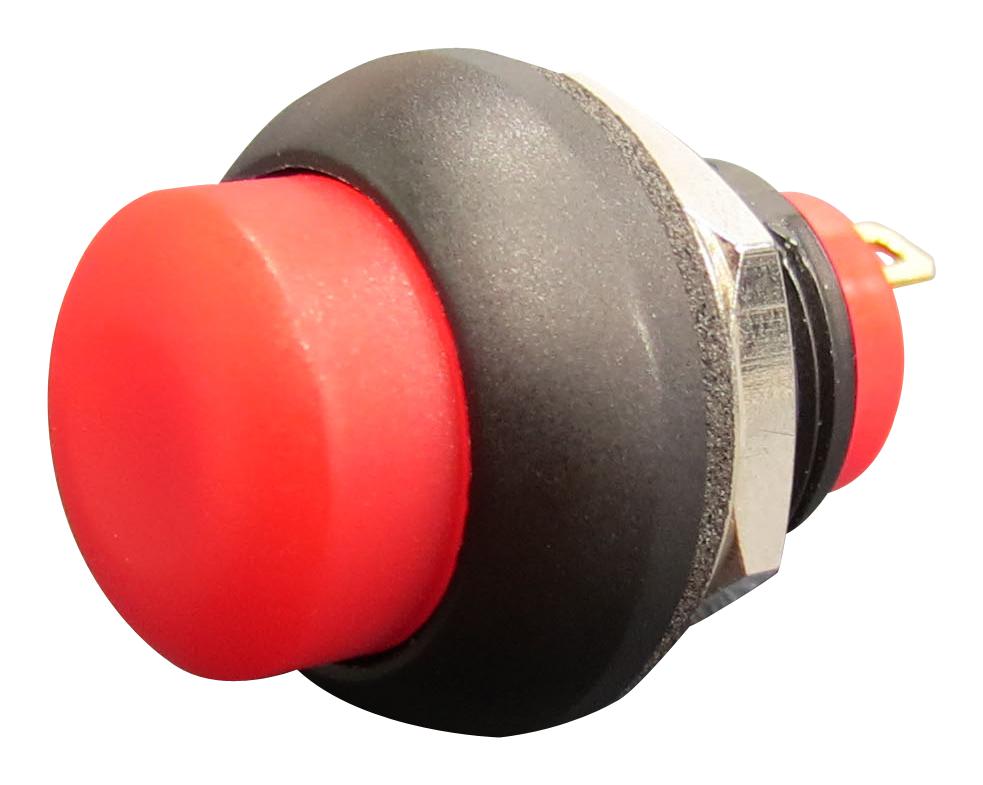

Buy the Buy multicomp Series PAL6 Part Number PAL6B2M1CESG25 Online
Purchase the high-quality multicomp Series PAL6 miniature pushbutton switch online today. Designed for dependable SPST switching, this switch features 1.5-4mm travel, 2N-5N operating force, and is RoHS compliant. It offers robust performance with a 1,000,000-cycle mechanical life, suitable for panel mounting with various hardware options, and supports resistive loads up to 2A at 125V AC. Ideal for industrial control systems, automation, and electronic projects requiring compact, durable, and reliable switch solutions.
Order your multicomp Series PAL6 PAL6B2M1CESG25 today and experience reliable miniature switch performance with durable construction and high cycle life.
