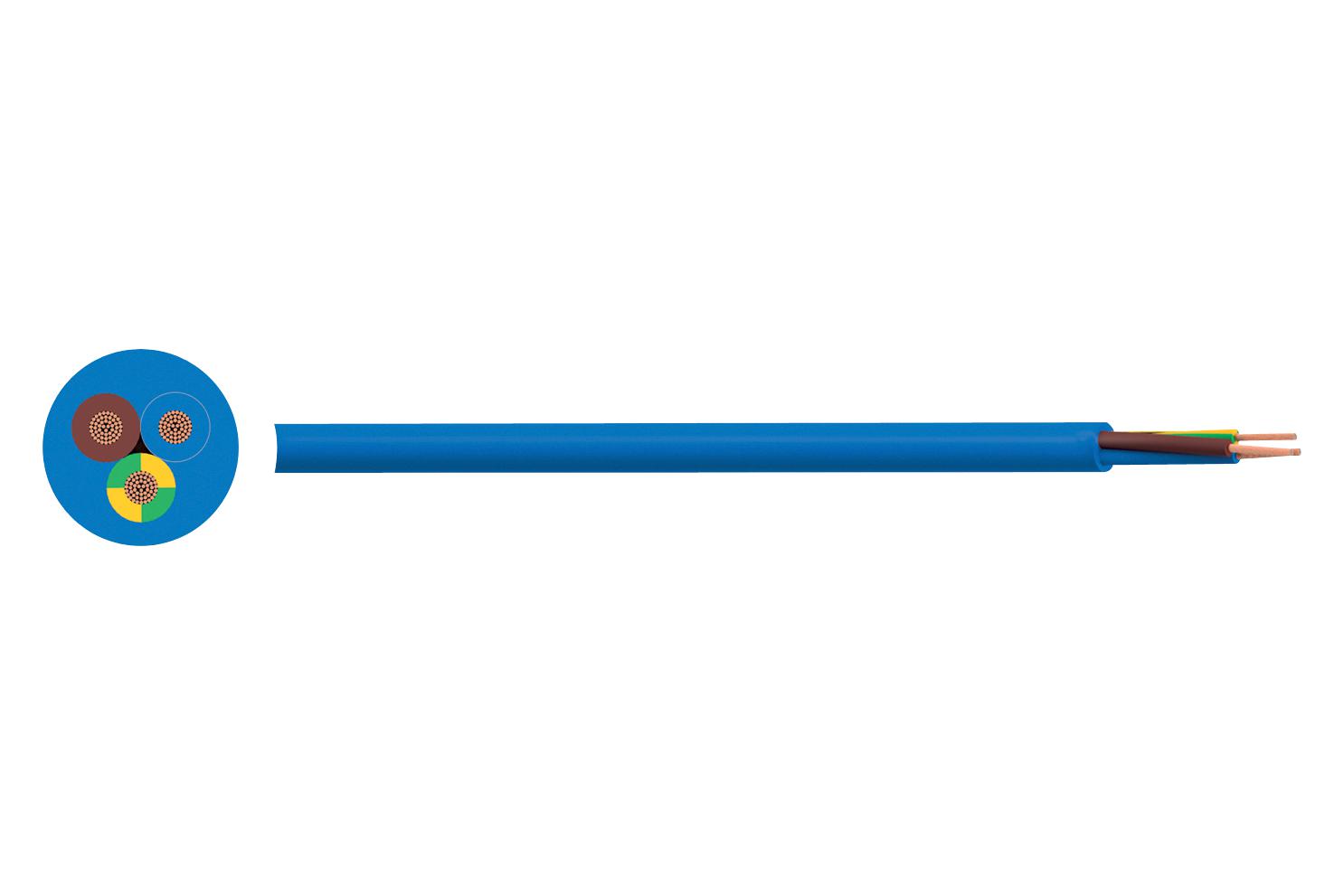

MULTICOMP-PRO PP3183Y4MMARTICBLUE Arctic Grade Multicore Cable
Arctic grade PVC multicore cable manufactured to BS 6004, suitable for outdoor and sub-zero applications, remains flexible down to -40°C, and offers a reliable solution for harsh environments. It features Class 5 flexible copper conductors, with insulation and sheath made of Arctic grade PVC for enhanced durability and flexibility. Designed for voltages up to 500V, it meets BS standards, ensuring safety and performance in extreme temperatures, ideal for industrial, outdoor, and special-use wiring where flexibility at low temperatures is crucial.
MULTICOMP-PRO PP3183Y4MMARTICBLUE Arctic Grade Multicore Cable Specifications:
- Voltage Rating (Uo/U): 300/500V
- Temperature Rating: Fixed: -40°C to +60°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: Class 5 flexible copper conductor
- Insulation: Arctic grade PVC (Type Tl4, BS EN 50363)
- Sheath: Arctic grade PVC (Type 10, BS 7655)
- Core Identification: Blue, Brown, Green/Yellow
- Dimensions: Nominal Cross Sectional Area: 1.5 mm², 2.5 mm², 4 mm²; Sheath Diameter: 8.1 mm, 10 mm, 11.3 mm respectively
- Current Carrying Capacity at 30°C: 1.5 mm²: 16 Amps, 2.5 mm²: 20 Amps, 4 mm²: 25 Amps
- Max. Resistance of Conductor at 20°C: 1.5 mm²: 13.3 Q/km, 2.5 mm²: 7.98 Q/km, 4 mm²: 4.95 Q/km
- Conductor Operating Temperature: 60°C
- Cable Standards: BS 6004, BS EN/IEC 60332-1-2
Buy the Multicomp Arctic Grade - Reliable Flexible Cables for Industrial Applications
Purchase your Arctic Grade Multicore Cable from authorized online distributors such as Newark, Farnell, or Element14. These cables are engineered to withstand severe external temperatures and maintain flexibility down to -40°C, making them ideal for outdoor, industrial, and demanding environments. Available in various cross-sectional areas including 1.5 mm², 2.5 mm², and 4 mm², each with Arctic grade PVC insulation and sheath, meeting BS 6004 standards for safety and durability. Ensure your installations are reliable, flexible, and compliant by ordering online today.
Order your Multicomp Arctic Grade multicore cable today and ensure your outdoor projects are equipped with flexible, high-quality wiring suitable for extreme temperatures.
