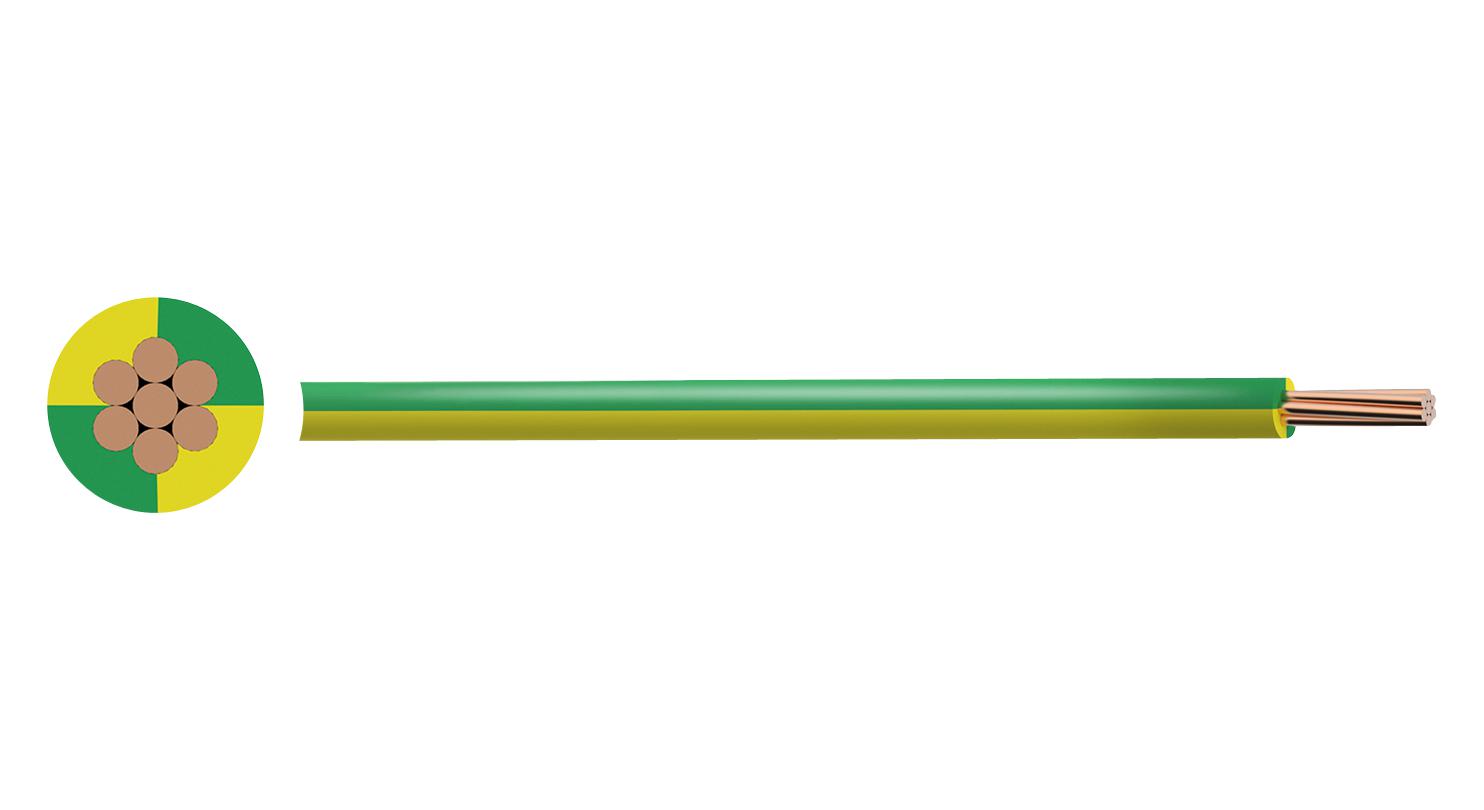

MULTICOMP PRO PP6491X150MMGY PVC Insulated Conduit Wire
6491X HO7V-R PVC insulated conduit wire is suitable for power and lighting applications, building wiring, and internal appliance wiring. Made with annealed copper conductors and PVC Type TI1 insulation, it complies with BS EN 50525-2-31 and IEC standards, rated at 450/750V with a temperature range up to +70°C. The wire features various insulation colors like black, blue, brown, green/yellow, and grey, with a minimum bending radius of 3 times its overall diameter. It is ideal for exposed or embedded conduit systems, showcasing excellent electrical and mechanical properties for robust electrical installations.
MULTICOMP PRO PP6491X150MMGY PVC Insulated Conduit Wire Specifications:
- Voltage Rating: 450/750V
- Temperature Range: -15°C to +70°C
- Conductor: Class 2 stranded annealed copper to BS EN 60228
- Insulation: PVC Type TI1 according to BS EN 50363
- Minimum Bending Radius: 3 x overall diameter
- Insulation Colours: Black, Blue, Brown, Green/Yellow, Grey
- Conductor Size: 1.5mm², 2.5mm², 4.0mm²
- Nominal Overall Diameter: 7 mm to 8 mm depending on the wire size
- Maximum Conductor Resistance at 20°C: 12.1Ω for 1.5mm², 4.61Ω for 4mm²
- Standards: BS EN 50525-2-31, IEC 60332-1-2
- RoHS Compliant
Buy the Multicomp Series PVC Insulated Conduit Wire: PP6491X150MMGY
Purchase Multicomp Series PVC insulated conduit wire online today for reliable power and lighting installations. Designed for building wiring, it features high-quality annealed copper conductors and durable PVC insulation, rated at 450/750V. Available in multiple insulation colors, including black, blue, brown, green/yellow, and grey, it is suitable for conduit and embedded systems, ensuring safety and efficiency. Perfect for commercial and residential applications, this wire provides optimal electrical performance, flexibility, and compliance with relevant standards. Order now for quick delivery and trusted quality online.
Get Multicomp Series PP6491X150MMGY today—built for power applications, robust conduit wiring, and long-lasting electrical systems.
