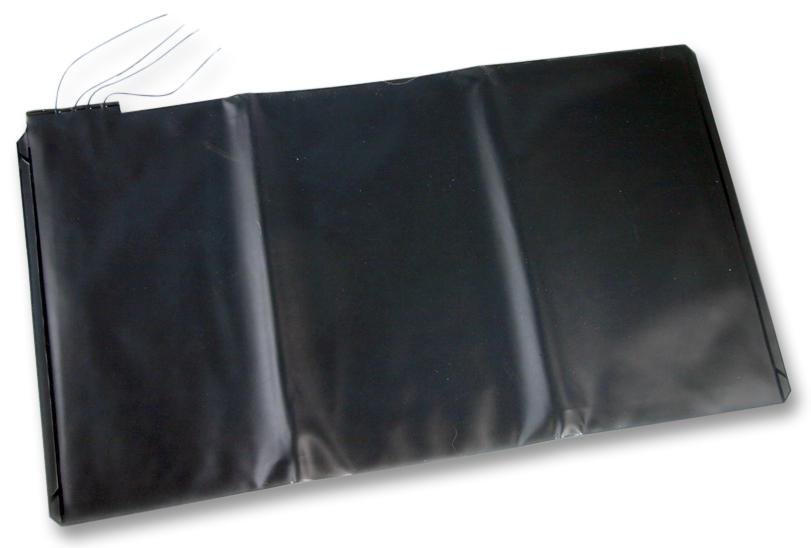

MULTICOMP PRO PM3PK Pressure Sensor Mats
Pressure mats are concealed sensors designed for security, interactive multimedia, healthcare, and detection applications. They activate when stepped on, triggering events or actions. Suitable for custom sizes, they feature IP64 dustproof seals, normally open contacts, and operate within -10°C to +70°C. Standard models detect 25kg over 50mm, with more sensitive versions sensing 16kg. They are mounted on flat surfaces under coverings like carpets or mats, ideal for security and interactive systems, but not suitable for critical safety uses. The sensors include four wires for connection and tamper detection.
MULTICOMP PRO PM3PK Pressure Sensor Mats Specifications:
- Contact Form: N/O normally open
- Contact Rating: 10V A (Max.)
- Switching Voltage: 25V DC (Max.)
- Switching Current: 0.25 Amps DC Resistive (Max.)
- Carry Current: 0.25 Amps DC Resistive (Max.)
- Contact Resistance: Typically 10 dependent on applied pressure
- Temperature Range: -10°C to +70°C
- Environmental Protection: IP64 not waterproof
- Standard Operating Pressure: 25kg over 50mm disc
- Increased Sensitive and Operating Pressure: 16kg over 50mm disc
- Cable: 4 separate wires, 150mm of 7 x 0.222
- Construction: Welded into PVC envelope, dust proof, sealed to IP64
- Operating Principle: Normally open contact closes under pressure, opens when released
- Installation Surface: Flat, smooth with protective covering like carpet or rubber mat
- Size options: PM1/PK 595x170mm, PM2/PK 720x390mm, PM3/PK 720x560mm
Buy the Defender PM3PK – Reliable Pressure Sensor for Industrial Applications
Order Defender pressure sensors online today and ensure reliable detection for security, healthcare, or interactive multimedia applications. Our pressure mats are designed for easy installation on flat surfaces, covered with carpets or rubber mats to prevent damage and hazards. With options for custom sizes and sensitivity levels, these IP64-rated, dustproof sensors are perfect for covert detection, interactive exhibits, or healthcare monitoring. Quickly set up, connect via four wires, and enjoy consistent performance to enhance safety, security, or user engagement easily and effectively.
Buy Defender PM3PK pressure mat now and experience dependable detection for security, interactive displays, and healthcare solutions.
