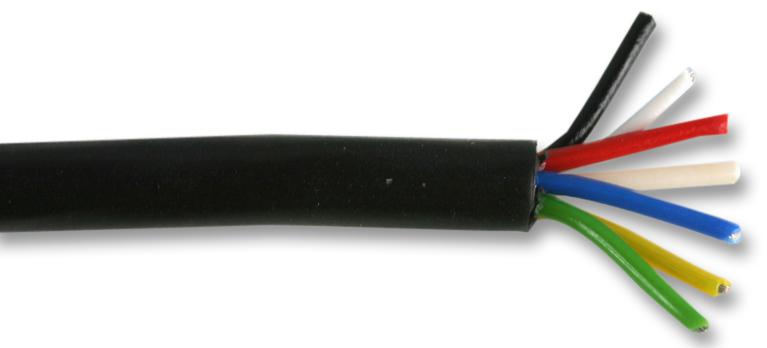

MULTICOMP PRO PP000339 Multicore Cable
This unscreened multicore cable complies with Defence Standard 61-12 Part 5 and is designed for high-density wiring within electronic equipment. Crafted with electrolytic annealed tinned copper conductors, it features a PVC insulation and sheath, rated for temperatures between 10°C and 70°C and voltages up to 440V AC. Suitable for internal wiring, the cable has cores color-coded as per standards, wrapped with plastic tape, and guarantees high insulation resistance of at least 200 MΩ/km. With a minimal bending radius of 6 times its diameter, it is ideal for reliable, compact electrical connections in demanding environments.
MULTICOMP PRO PP000339 Multicore Cable Specifications:
- Conductor Material: Electrolytic Annealed Tinned Copper
- Core Diameter: 0.5mm (16/0.2mm conductors)
- Sheath Material: PVC, BS6746 Type 6, Color: Black
- Insulation Thickness: 0.45mm per core, PVC (BS676 Type 2)
- Voltage Rating: 440V AC rms @ 1600Hz
- Temperature Range: 10°C to +70°C
- Minimum Bending Radius: 6 x cable diameter
- Test Voltage: 2000V core to core for 1 minute
- Maximum Reel Length: 100 meters
- Number of Cores: 16
- Core Colors: Red, Blue, Green, Yellow, White, Black, Brown, Violet, Orange, Pink, Turquoise, Grey, Red/Blue, Green/Red, Yellow/Red, White/Red, Red/Black, Red/Brown
- Resistance per core @ 20°C: 40.10 Ω/km
- Current Rating (per core): 2.5 Amp
- Cable Diameter: 3.7 mm (based on 16 cores)
- Nominal Core Resistance: 40.10 Ω/km
- Construction: Cores wrapped with plastic tape, black PVC jacket
Buy the Buy Premium Multicore Cable Part Number PP000339 Online
Order the high-quality multicore cable PP000339 online today and enjoy quick delivery and competitive pricing. This unscreened cable features a durable PVC sheath and color-coded cores, making it ideal for high-density wiring within electronic instruments and equipment. With excellent insulation resistance and a maximum voltage of 440V, it guarantees safety and performance for internal wiring needs. Simplify your wiring projects by choosing this reliable multicore cable designed for demanding environments, ensuring long-lasting connections and operational efficiency.
Buy Premium Multicore Cable PP000339 now and experience reliable high-density wiring for electronic and equipment applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP000339?
You can click on the BUY or RFQ button to purchase PP000339 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP000339?
You can download the PP000339 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP000339?
MULTICOMP PRO
