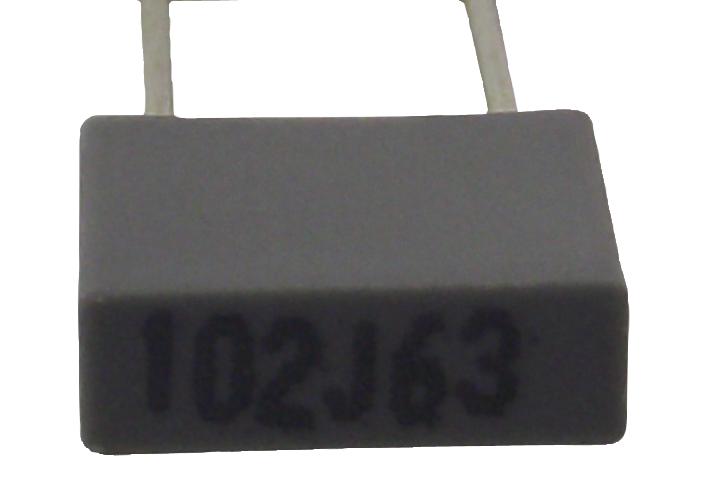

MULTICOMP PRO MCPBSFC1J102KA45 Polyester Film Capacitor
This 5mm pitch metallized polyester film capacitor features a voltage rating of 63V DC and 40V AC, with a capacitance of 0.001uF. Encapsulated in flame-retardant plastic with stand-off feet, it boasts a temperature range from -55°C to +85°C, and withstands full operating conditions up to 105°C with voltage derating. Its high insulation resistance of 215,000 MΩ over 25,000 seconds ensures reliability. Ideal for industrial applications, it offers a 10% capacitance tolerance, low dissipation factor of 2.21% at 1kHz, and robust construction, making it suitable for various electronic circuit uses.
MULTICOMP PRO MCPBSFC1J102KA45 Polyester Film Capacitor Specifications:
- Working Voltage at 85°C: 63V DC / 40V AC
- Capacitance Tolerance: ±10%
- Temperature Range: -55°C to +85°C
- Maximum Temperature with Voltage Derating: 105°C
- Insulation Resistance: 215,000 MΩ (25,000 seconds at 20.33 pF)
- Dissipation Factor: 2.21% at 1 kHz
- Body Color: Grey
- Dimensions: Width 7.2mm, Height 6.5mm, Depth 25mm
- Construction: Metallised polyester, epoxy resin encapsulated, flame-retardant plastic case
- Pitch: 5mm
- Stand-off Feet: Yes
- Maximum Voltage Durability: Full rated voltage up to 85°C, derated beyond
Buy the Buy Multicomp Pro Capacitor Part Number MCPBSFC1J102KA45 Online
Purchase the versatile Multicomp Pro Polyester Film Capacitor MCPBSFC1J102KA45 online today. Featuring a 63V DC and 40V AC rating, with a capacitance of 0.001uF, this capacitor is ideal for industrial and electronic applications. Encapsulated in flame-retardant plastic, it offers high insulation resistance, a broad temperature range from -55°C to +85°C, and durability with a 10% capacitance tolerance. Its robust construction, small form factor, and reliability make it an essential component for your circuit designs and upgrades.
Order your Multicomp Pro 5mm Polyester Capacitor MCPBSFC1J102KA45 today and ensure reliable performance in your electronic projects.
