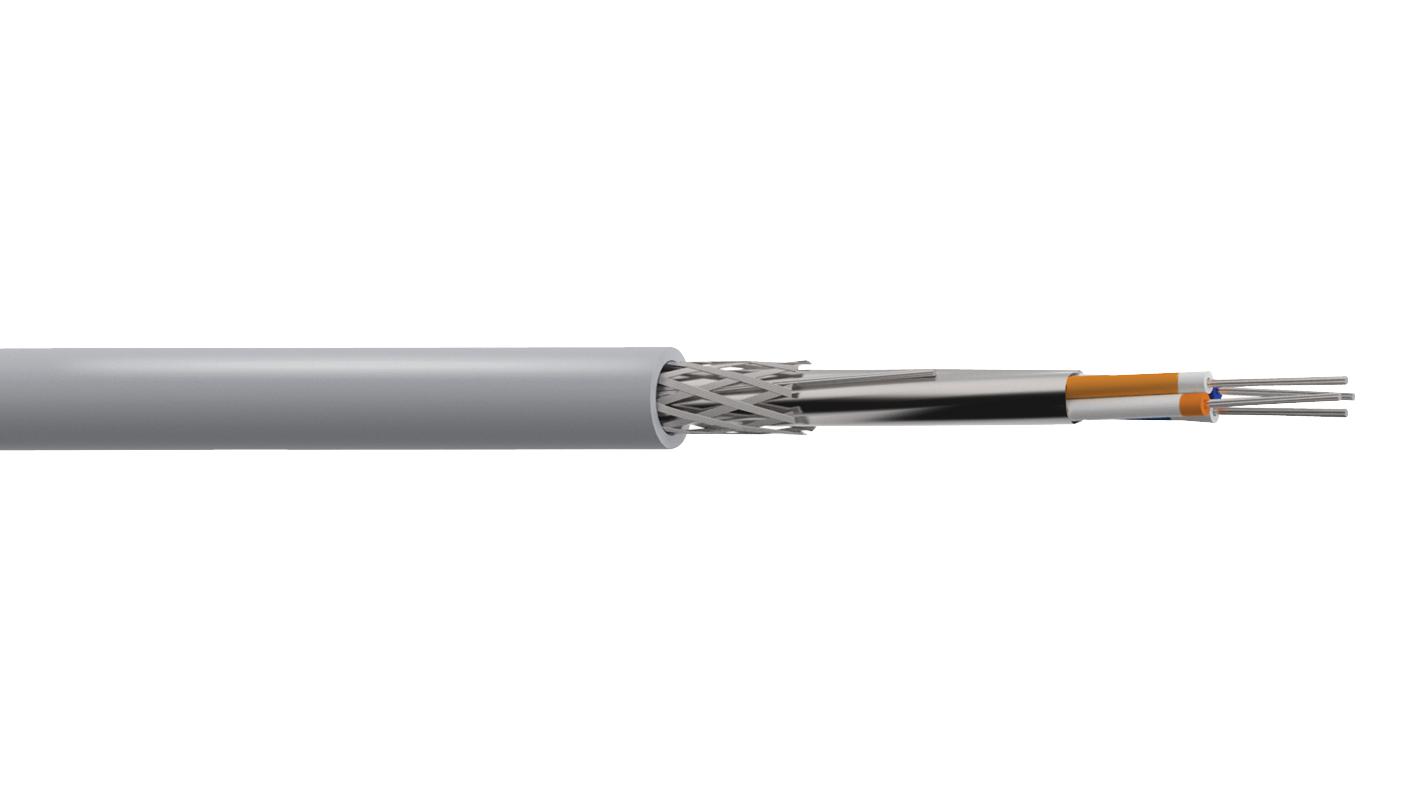

MULTICOMP PRO PP001165 Screened Data Cable
This LSZH 300V screened multipair low capacitance computer cable is designed for high-speed data transmission in EIA RS-485 applications. It features a stranded tinned copper conductor, aluminium polyester foil shielding, and a tinned copper braid for effective interference shielding. The cable complies with RoHS standards, has a flexible polyethylene inner sheath, and a low smoke zero halogen outer sheath. Rated for 300V, it operates at -20°C to +70°C, with precise pairing color coding, making it ideal for industrial automation, serial communication, and data network installations requiring reliable and interference-free performance.
MULTICOMP PRO PP001165 Screened Data Cable Specifications:
- Voltage Rating: 300V
- Temperature Rating: -20°C to +70°C
- Core Identification: Pair 1: Blue/White & White/Blue; Pair 2: Orange/White & White/Orange
- Sheath Colour: Grey
- Construction: Stranded tinned copper conductor, PE inner sheath, aluminium polyester foil screen, tinned copper drain wire, copper wire braid, LSZH outer sheath
- Number of Pairs: 2
- AWG: 24
- Stranding: 7 x 32 AWG
- Nominal Diameter of Strands: 0.2 mm
- Overall Diameter: 7 mm
- Nominal Weight: 92 kg/km
- Electrical Characteristics: Velocity of Propagation 66%, Impedance 120Ω, Capacitance at 1 kHz 42 pF/m, Resistance of Conductor at 20°C 86.2 Ω/km
Buy the Multicomp PP001165 – Reliable RS-485 Data Cable for Industrial Applications
Secure your data transmission with the high-quality, low capacitance screened multipair computer cable. Designed for RS-485 networking, this 24 AWG cable features robust shielding with aluminium foil and copper braid, ensuring minimal interference. Its LSZH outer sheath enhances safety in enclosed environments while handling up to 300V and operating reliably between -20°C to +70°C. Perfect for industrial automation, serial communication, and high-speed data networks, this cable guarantees durability, compliance, and performance for critical applications. Buy online now for fast delivery and reliable connectivity.
Order your Multicomp PP001165 Series 300V Screened Multipair Low Capacitance Computer Cable today and ensure interference-free high-speed data transmission in your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001165?
You can click on the BUY or RFQ button to purchase PP001165 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001165?
You can download the PP001165 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001165?
MULTICOMP PRO
