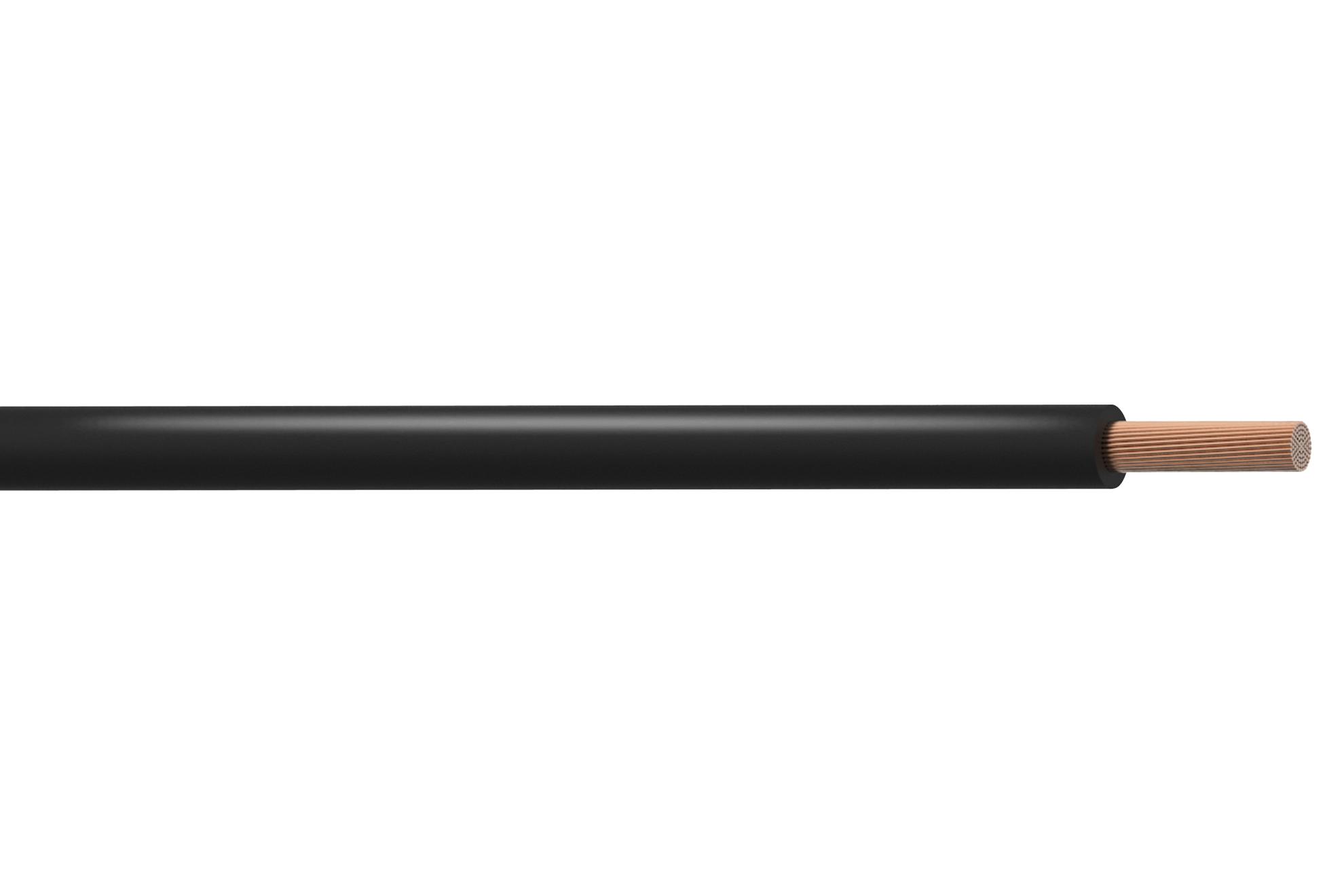

MULTICOMP PRO PP001190 Flexible Equipment Wire
The part number PP001190 is a 100-meter length of tri-rated flexible equipment wire featuring a Class 5 flexible copper conductor in accordance with BS EN 60228 (formerly BS 6360). It is insulated with PVC type TI3 material as per BS EN 50363 and is designed for high-temperature, flame-retardant applications. Suitable for switch control, relay, and instrumentation panels of power switchgear, as well as internal connections in rectifier equipment and controllers. It complies with multiple standards including BS 6231 Type CK, BS EN 50525-2-31, IEC 60332, CSA C22. 2 No. 210, and UL Subj 758. Rated for 450/750V, maximum temperature 105°C, with conductor resistance of 4.95 ohms/km at 20°C, and rated safety compliance.
MULTICOMP PRO PP001190 Flexible Equipment Wire Specifications:
- Conductor: Class 5 flexible copper conductor
- Insulation: PVC Type TI3 per BS EN 50363
- Voltage Rating: 450/750V (UL, CSA, BS 6231), 300/500V (BS EN 50525-2-31)
- Temperature Rating: +105°C (UL, CSA), +90°C (BS 6231), -15°C minimum
- Minimum Bending Radius: 6 x overall diameter
- Rated Standards: BS 6231 Type CK, UL Subj.758, CSA C22.2 No. 210, BS EN 50525-2-31, IEC 60332
- Reel length options: 50 m, 100 m, 500 m (select sizes), or per meter
- Colour Options: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Maximum conductor resistance at 20°C: 4.95 ohms/km
- Rated Voltage: 600/1000V (UL, CSA, BS 6231), 300/500V, 450/750V (BS EN 50525-2-31)
Buy the Tri-Rated Series Equipment Wire: PP001190
Enhance your electrical projects with flexible, flame-retardant equipment wire that withstands high temperatures up to 105°C. Ideal for switchgear, relay panels, and internal equipment connections, this PVC-insulated wire complies with international standards. Available in various lengths and colors, it offers reliable performance, superior insulation, and safety for industrial and commercial applications. Purchase online easily and ensure your electrical system’s safety, efficiency, and durability with our premium tri-rated equipment wiring.
Buy Tri-Rated Series PP001190 equipment wire now and experience unmatched reliability and high-temperature flame-retardant performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001190?
You can click on the BUY or RFQ button to purchase PP001190 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001190?
You can download the PP001190 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001190?
MULTICOMP PRO
