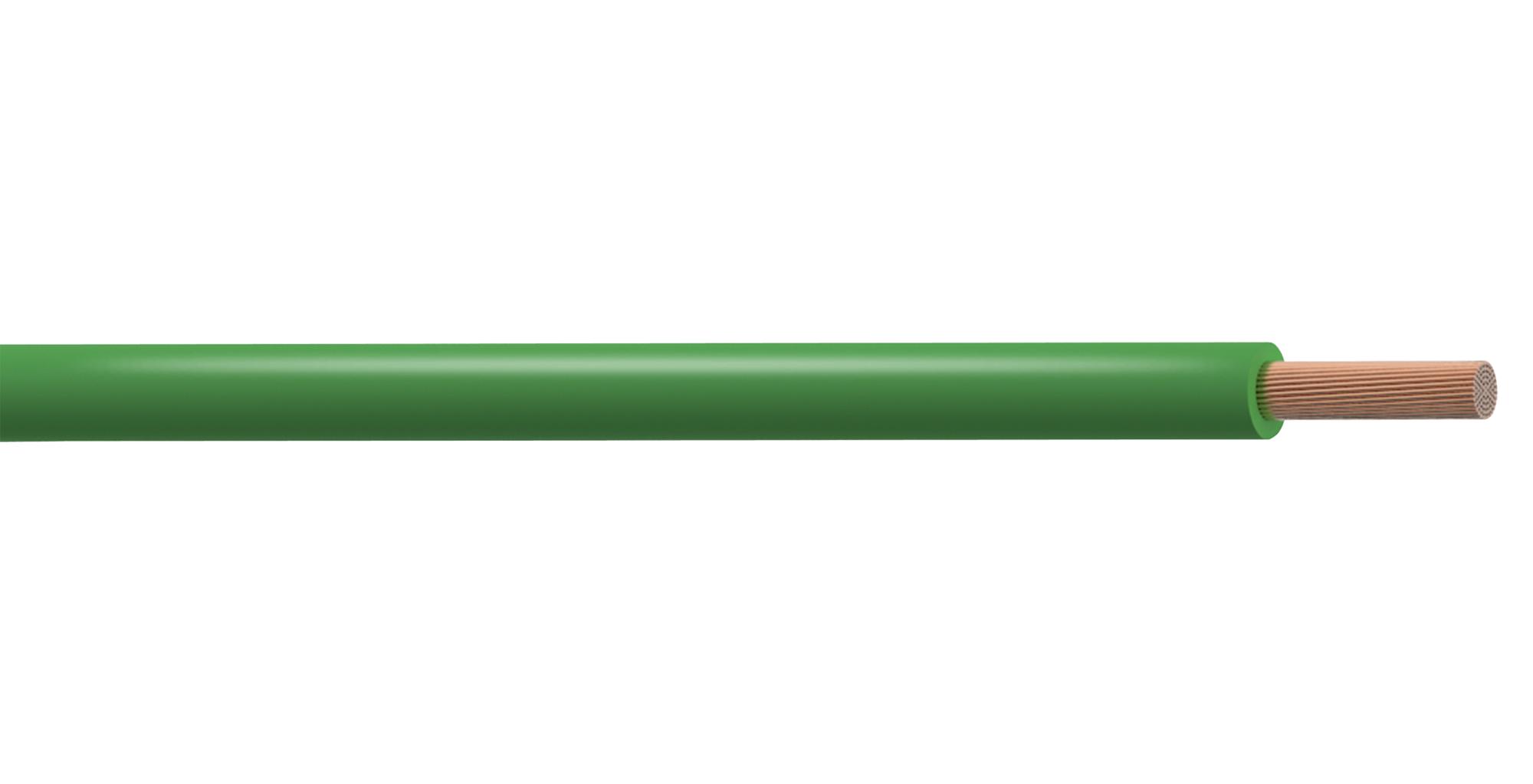

MULTICOMP PRO PP001224 Power Cable
Tri-rated flexible PVC equipment wire designed for high-temperature applications including switch control, relay, instrumentation panels, and internal connections in power switchgear. Compliant with BS EN 50525-2-31, BS 6231, UL, and CSA standards, this durable cable features flexible copper conductors with PVC insulation and a range of sheath colors. Rated for 600/1000V and temperatures up to +105°C, it offers reliable performance in industrial environments, with a minimum bending radius of 6 times overall diameter, available in various lengths and color options.
MULTICOMP PRO PP001224 Power Cable Specifications:
- Conductor: Class 5 flexible copper conductor
- Insulation: PVC Type TI3
- Voltage Rating: UL, CSA 600/1000V; BS 6231 600/1000V; BS EN 50525-2-31 300/500V, 450/750V
- Temperature Rating: UL, CSA: +105°C; BS 6231: +90°C; Minimum: -15°C
- Bending Radius: 6 x overall diameter
- Sheath Colors: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Reel Lengths: 50 m, 100 m, 500 m, or per metre
- Made in accordance with BS EN 50525-2-31, BS 6231, UL, CSA, BS EN 60332, BS EN 60228 standards
- Physical Dimensions: Conductor diameters vary with size, e.g., 0.5 mm² to 25 mm²; overall diameter depends on conductor size
- Construction: Conductors have multiple strands, insulation is PVC, sheath color varies for easy identification
Buy the Multicomp Series Power Cable: PP001224
Purchase the durable and high-temperature resistant Power Cable online today from authorized distributors. Designed for industrial control, relay panels, and power switchgear, this cable complies with industry standards such as BS EN 50525-2-31, BS 6231, UL, and CSA. Available in multiple lengths and colors, it features flexible copper conductors with PVC insulation and sheaths rated for 600/1000V and temperatures up to +105°C. Ideal for professional electrical installations requiring dependable and flame-retardant wiring solutions.
Order your Multicomp Series Power Cable PP001224 today and ensure reliable, high-temperature wiring for industrial control and power distribution.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001224?
You can click on the BUY or RFQ button to purchase PP001224 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001224?
You can download the PP001224 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001224?
MULTICOMP PRO
