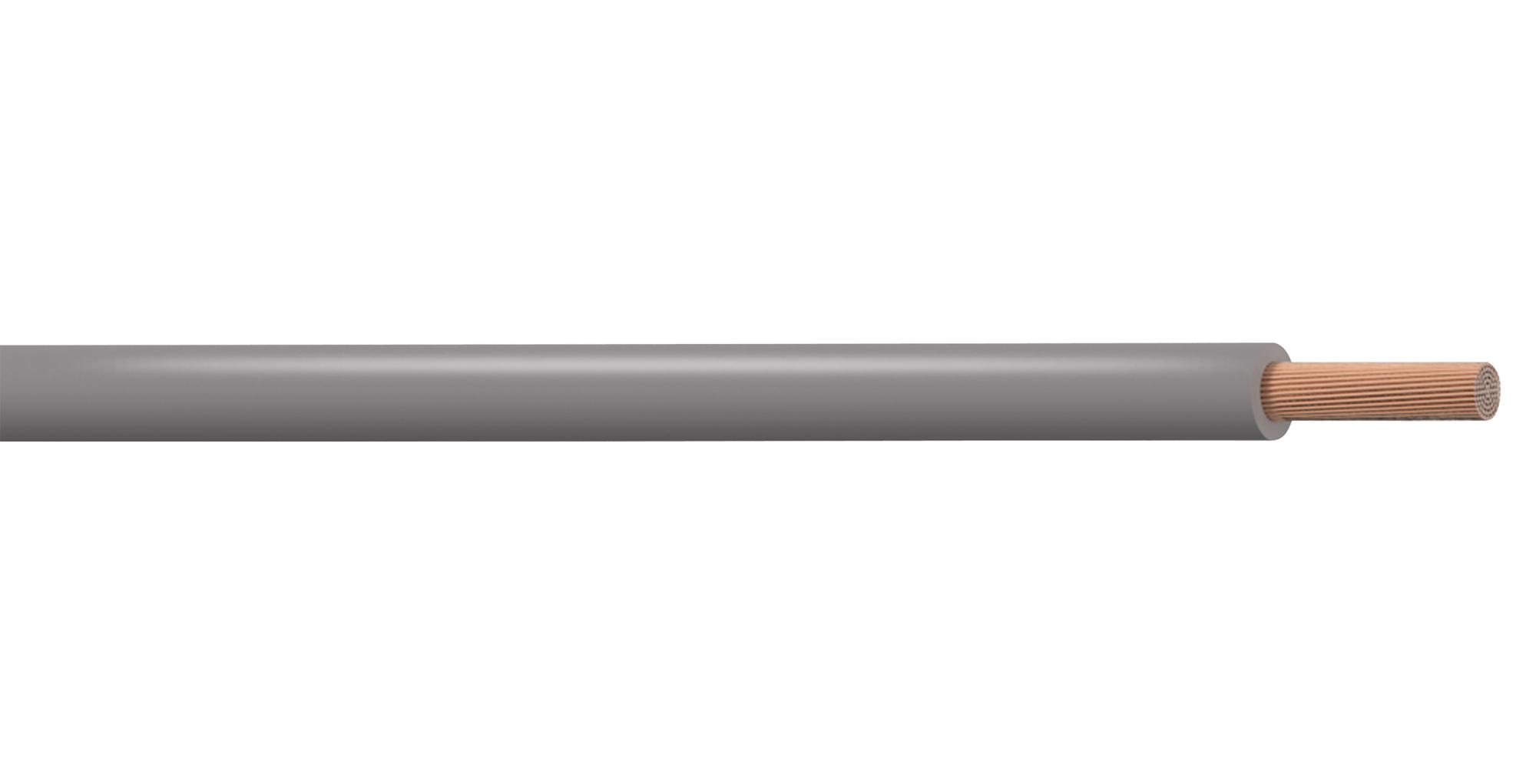

MULTICOMP PRO PP001234 Flexible Control Wiring
Tri-rated flexible PVC equipment wire designed for high-temperature, flame-retardant applications in control panels, relays, instrumentation, and power switchgear. This BS 6231, UL, CSA-approved wire features Class 5 flexible copper conductors and PVC insulation, suitable for internal connectors in rectifiers, motor starters, and controllers. It is RoHS compliant with voltage ratings up to 600/1000V, operating temperatures between -15°C and +105°C, and a minimum bending radius of 6 times the overall diameter. Available in numerous colors, it comes on reels from 50 m to 500 m, ideal for industrial wiring needs.
MULTICOMP PRO PP001234 Flexible Control Wiring Specifications:
- Construction: Class 5 flexible copper conductor, PVC insulation Type TI3
- Voltage Rating: UL, CSA 600/1000V, BS 6231 600/1000V, BS EN 50525-2-31 300/500V, 450/750V
- Temperature Range: -15°C to +105°C (UL, CSA), +90°C (BS 6231)
- Minimum Bending Radius: 6 x overall diameter
- Reel Lengths: 50 m, 100 m, 500 m (varies by size)
- Conductor Strands: 16 x 0.2 mm to 196 x 0.4 mm strands depending on cross-sectional area
- Physical Dimensions: Over diameter varies with size, from approximately 1.91 mm to 4.36 mm
- Color Options: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Standards: BS EN 50525-2-31, BS 6231, UL, CSA, IEC 60332, BS EN 60228
Buy the Multicomp PRO PP001234 – Reliable Control Power Cable for Industrial Applications
Purchase the reliable Multicomp PRO flexible control wiring online now and experience consistent high-temperature performance in industrial control panels, relays, and instrumentation. These UL and CSA-approved cables with Class 5 flexible copper conductors and durable PVC insulation are ideal for internal connections, offering excellent flexibility, flame retardancy, and compliance with RoHS standards. Available in multiple colors and lengths, they are suitable for a broad range of industrial wiring applications. Order now to ensure your projects meet safety and quality standards.
Order your Multicomp PRO PP001234 flexible PVC control wire today and ensure dependable performance for your industrial wiring projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001234?
You can click on the BUY or RFQ button to purchase PP001234 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001234?
You can download the PP001234 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001234?
MULTICOMP PRO
