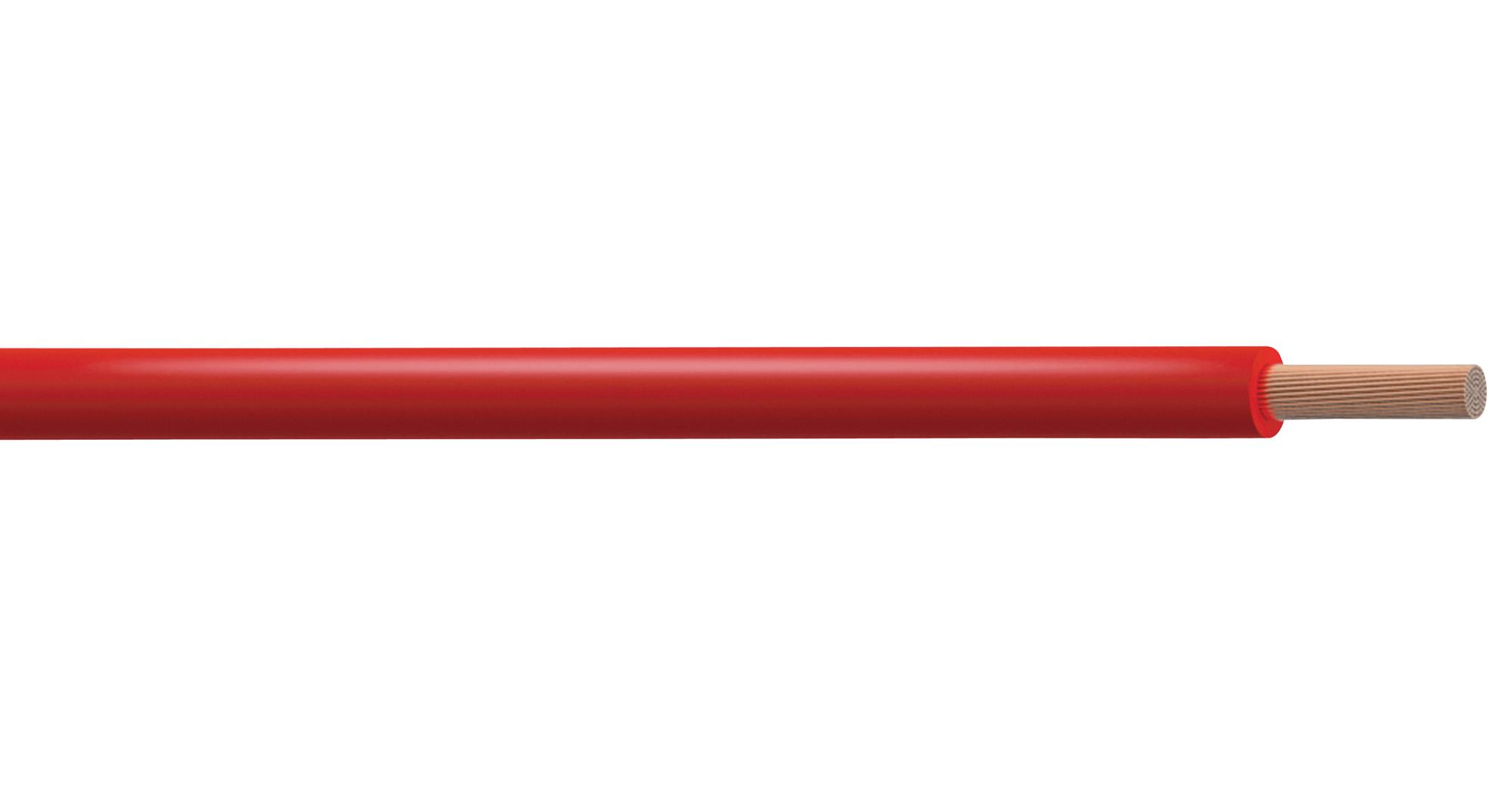

MULTICOMP PRO PP001270 Control Cable
The PP001270 is a 100-meter tri-rated flexible equipment wire featuring a Class 5 flexible copper conductor as per BS EN 60228 and PVC Type TI3 insulation. This high-temperature, flame-retardant cable is designed for switch control, relay, and instrumentation panels in power switchgear. Suitable for internal connections in rectifier equipment and controllers, it complies with standards such as BS 6231 Type CK, BS EN 50525-2-31, IEC 60332, CSA C22.2 No. 210, and UL Subj 758. Rated for 450/750V, it withstands temperatures up to 105°C, ensuring efficient conductivity for industrial control and motor drive applications.
MULTICOMP PRO PP001270 Control Cable Specifications:
- Conductor: Class 5 flexible copper
- Insulation: PVC Type TI3
- Standard Compliance: BS 6231 Type CK, BS EN 50525-2-31, IEC 60332, UL Subj 758, CSA C22.2 No. 210
- Voltage Rating: 450/750V
- Temperature Rating: up to +105°C
- Operating Temp Range: -15°C to +105°C
- Reel Length: 100 meters
- Color Options: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Nominal Cross-sectional Area: 1.5mm² (16 AWG), 2.5mm² (14 AWG), 4mm² (12 AWG), 6mm² (10 AWG), 10mm² (8 AWG)
- Conductor Resistance: approximately 26 ohms per km at 20°C
- Bending Radius: minimum 6 x overall diameter
- Applied Standards: BS EN 50525-2-31, BS 6231, IEC 60332
- Rated Voltage: 600/1000V (UL, CSA), 450/750V (BS EN)
- Application: Power switchgear, internal wiring in rectifier equipment, controllers, relay panels
Buy the Multicomp 100mm2 – Reliable Control Cable for Industrial Applications
Order the Multicomp flexible control cable online today for reliable performance in industrial automation. This flame-retardant, high-temperature rated wire is ideal for control panels, motor drives, and internal wiring. Available in multiple colors and lengths, it ensures safety and efficiency in power switchgear applications. Featuring copper conductors and robust PVC insulation, it provides excellent electrical and thermal performance, making it a perfect choice for professionals seeking durable, easy-to-install wiring solutions for demanding industrial environments.
Get Multicomp 100mm2 today—built for precision, safety, and long-lasting durability in industrial wiring.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001270?
You can click on the BUY or RFQ button to purchase PP001270 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001270?
You can download the PP001270 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001270?
MULTICOMP PRO
