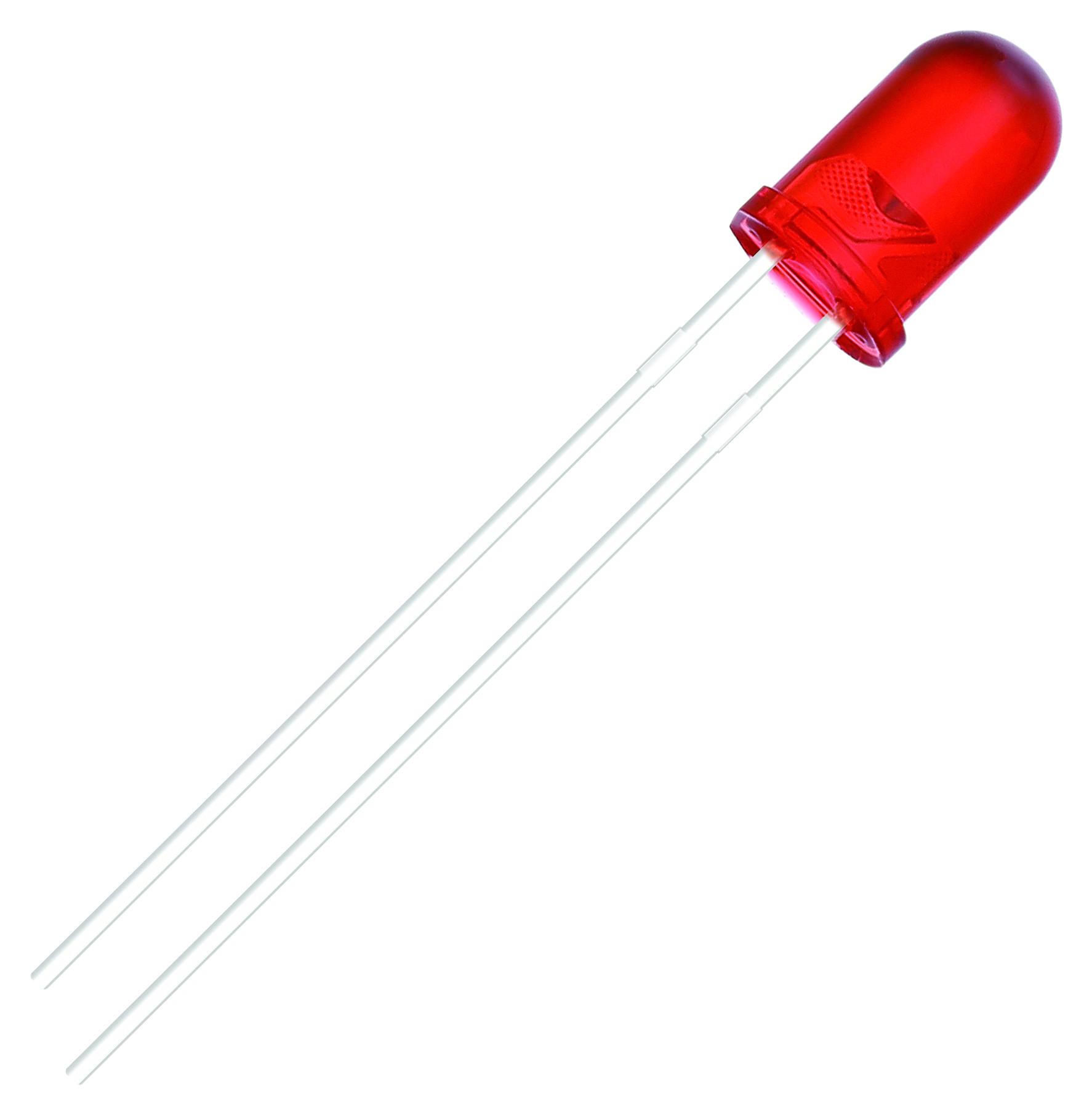

MULTICOMP-PRO MP006838 Red Round LED
The 5mm (T-1 3/4) Round LED from MulticompPro is a high-quality, super red LED with a peak wavelength of 650 nm and a viewing angle of 16°. Designed for reliable performance, it features a transparent red lens, luminous intensity of 500mcd, and a typical forward voltage of 19V at 20mA. The LED is RoHS compliant and suitable for various electronic applications. It supports forward current of 30mA with peak ratings up to 100mA, operates between -40°C to +85°C, and requires specific soldering conditions for optimal performance.
MULTICOMP-PRO MP006838 Red Round LED Specifications:
- Package Size : 5mm Round LED Lamp
- Dice Material : AllnGaP
- Peak Wave Length : 650 nm
- Emitted Colour : Super Red
- Viewing Angle : 16°
- Lens Colour : Red Transparent
- Luminous Intensity : 500mcd
- Peak Emission Wavelength : 650 nm
- Forward Voltage : 19V (Typ)
- Forward Current : 30mA (Rec), Peak 100mA
- Power Dissipation : 85 mW
- Operating Temperature Range : -40°C to +85°C
- Storage Temperature Range : -40°C to +100°C
- Reflow Soldering Temperature : 260°C for 5 sec
- Electrostatic Discharge : 2000 V
- RoHS Compliant
Buy the Buy MulticompPro Red Round LED Part Number MP006838 Online
Order the MulticompPro Red Round LED now and experience top performance with a peak wavelength of 650 nm, 500mcd luminous intensity, and a 16° viewing angle. This RoHS compliant LED supports reliable operation across a temperature range of -40°C to +85°C, making it ideal for indicator lights, displays, and electronic projects. Ensure optimal soldering with specific reflow and hand soldering guidelines. Secure your supply today for consistent, high-quality illumination in your designs.
Get MulticompPro MP006838 today—built for high brightness and long-lasting durability for your electronic indicator needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP006838?
You can click on the BUY or RFQ button to purchase MP006838 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006838?
You can download the MP006838 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP006838?
MULTICOMP-PRO
